Siemens DIN Rail Control Switch Control Switch

RS 제품 번호:: 622-0654
제조사 부품 번호:: 5TT4102-0
제조업체:: Siemens

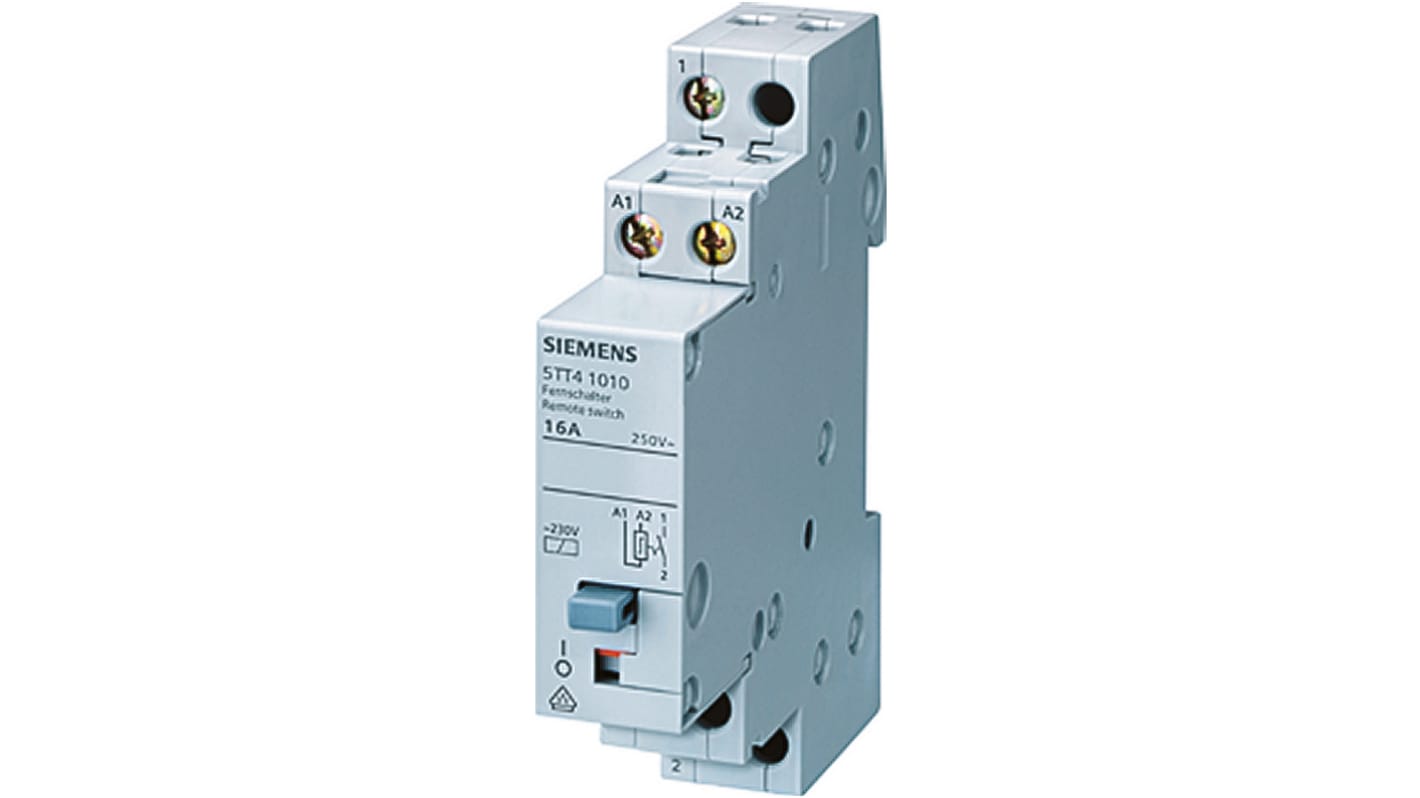

Siemens DIN Rail Control Switch Control Switch

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 unit)*

₩101,580.00

3 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩101,580.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 622-0654
제조사 부품 번호:: 5TT4102-0
제조업체:: Siemens

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siemens
	Range	SENTRON
	Current Rating	16A
	Product Type	Control Switch
	Series	SENTRON
	Contact Configuration	2 NO
	Sub Type	Control Switch
	Mount Type	DIN Rail
	Terminal Type	Screw
	Standards/Approvals	UKCA, EAC, CE, VDE

	모두 선택
	브랜드 Siemens
	Range SENTRON
	Current Rating 16A
	Product Type Control Switch
	Series SENTRON
	Contact Configuration 2 NO
	Sub Type Control Switch
	Mount Type DIN Rail
	Terminal Type Screw
	Standards/Approvals UKCA, EAC, CE, VDE

Remote Switch 2NO Contact For 230Vac 16A

COO (Country of Origin):: RO

Siemens SENTRON Series Control Switch, 16A Current, 2 NO Contact Configuration - 5TT4102-0

This control switch is a DIN rail-mounted remote switching device designed for industrial automation panels. It operates from an AC control supply with a setpoint of 230 V and provides two normally open contacts for switching loads up to 16 A. The unit offers galvanic isolation between Coil and contacts and is intended for use where Compact modular width and simple mechanical latching are required.

Features and Benefits:

• 16 A rated switching current delivers high load-handling capacity
• 2 NO contacts enable straightforward normally open control schemes
• Screw terminals accept 1 mm² to 6 mm² conductors for secure connections
• Mechanical latching provides defined state retention after actuation
• Electrical endurance 50,000 cycles supports long service intervals

Applications

• Suitable for DIN rail control panels in industrial automation
• Can be used for switching incandescent and fluorescent lighting loads
• Ideal for remote switching of 230 V AC control circuits
• Used with control systems requiring galvanic Coil to contact isolation

What supply voltage range will the control input accept?

The control input accepts AC with a setpoint of 230 V and an operating range from 184 V to 253 V.

How does the device perform with inductive or fluorescent loads?

It switches up to 16 A at cos φ 0.6 and provides specific apparent power capacities for fluorescent lamp configurations.

What Terminal and torque specifications apply for installation?

It uses six screw terminals for connections with tightening torque between 0.8 N·m and 1 N·m.

What environmental conditions define safe operation?

It is designed for ambient temperatures from -10 °C to 40 °C and accommodates up to 95% relative humidity per DIN 50015.
