RS PRO Straight, Panel Mount, Socket to Socket- Dual Port Type A to A 2.0 USB Connector
- RS 제품 번호:
- 175-0147
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩16,299.60
재고있음
- 85 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩16,299.60 |
| 10 - 24 | ₩15,810.80 |
| 25 - 49 | ₩15,303.20 |
| 50 - 249 | ₩14,889.60 |
| 250 + | ₩12,408.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 175-0147
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Gender | Female to Female | |
| USB Type | A to A | |
| Mounting Type | Panel Mount | |
| Termination Method | Screw | |
| USB Version | 2.0 | |
| Body Orientation | Straight | |
| Number of Ports | 2 | |
| Current Rating | 1.5A | |
| Voltage Rating | 30 V | |
| Series | CP3 | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Gender Female to Female | ||
USB Type A to A | ||
Mounting Type Panel Mount | ||
Termination Method Screw | ||
USB Version 2.0 | ||
Body Orientation Straight | ||
Number of Ports 2 | ||
Current Rating 1.5A | ||
Voltage Rating 30 V | ||
Series CP3 | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
- COO (Country of Origin):
- GB

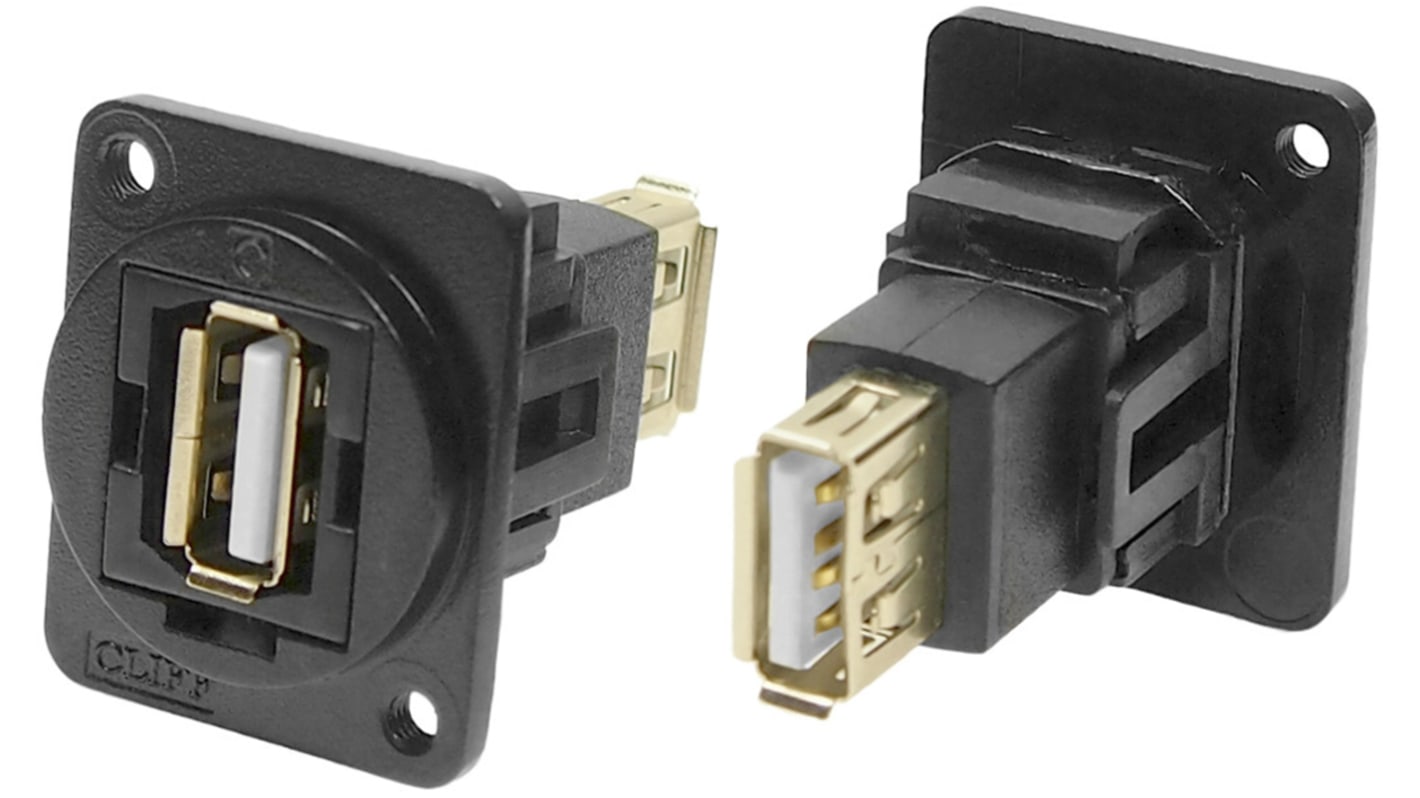

RS PRO USB 2.0 Feedthrough Connector – Female to Female - Black Metal Frame
Introducing the RS PRO Metal USB Feed-Through Connector, a reliable solution for connecting and adapting different USB types through a robust panel mount. Designed to fit seamlessly within a standard XLR format chassis, this connector ensures a secure and sturdy connection.
Ideal for wall plugs and rack mounting, this XLR format USB adapter is indispensable for creating custom configurations with standard cabling. It's a go-to choice for digital recording studios and network racking, providing flexibility and reliability in various setups.
Features and Benefits
- USB2.0 A-A, Black metal frame, M3 holes
- Fits standard XLR Ø24 mm cut-out
- No soldering or punch termination
- Use standard cable for each connector style
- Front or rear mounted
- Low rear profile
Materials
- Insert: ABS UL94 HB
- Frame: Black plated zinc diecast
- Inner Over-mouldings: PE + PVC
- Shell: Nickel plated steel
- Contacts: Gold Plated
Specifications
- Voltage rating: 30V ac
- Current rating: 1.5 A max
- Contact resistance: 50mΩ max
- Insulation resistance: 20MΩ min
- Dielectric withstanding voltage: 500V AC
- Operating Temperature: -20 °C to 50 °C
Applications
- Feedthrough Connectors Projects
- Recording studios
- Network racking
