RS PRO Straight, Panel Female- 2 Port Type USB Type A USB Connector USB 2.0

모든 USB Connectors 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩16,087.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 312 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 9₩16,087.50
10 - 24₩15,600.00
25 - 49₩15,112.50
50 - 249₩14,859.00
250 +₩12,187.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
143-8925
Distrelec 제품 번호:
304-51-106
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

USB Connector

USB Type

USB Type A

Mount Type

Panel

USB Specification

USB 2.0

Connector Gender

Female

Orientation

Straight

Number of Ports

2

Voltage

500V

Termination Type

Solder

Standards/Approvals

No

Hazardous Area Certification

NO

Series

CP

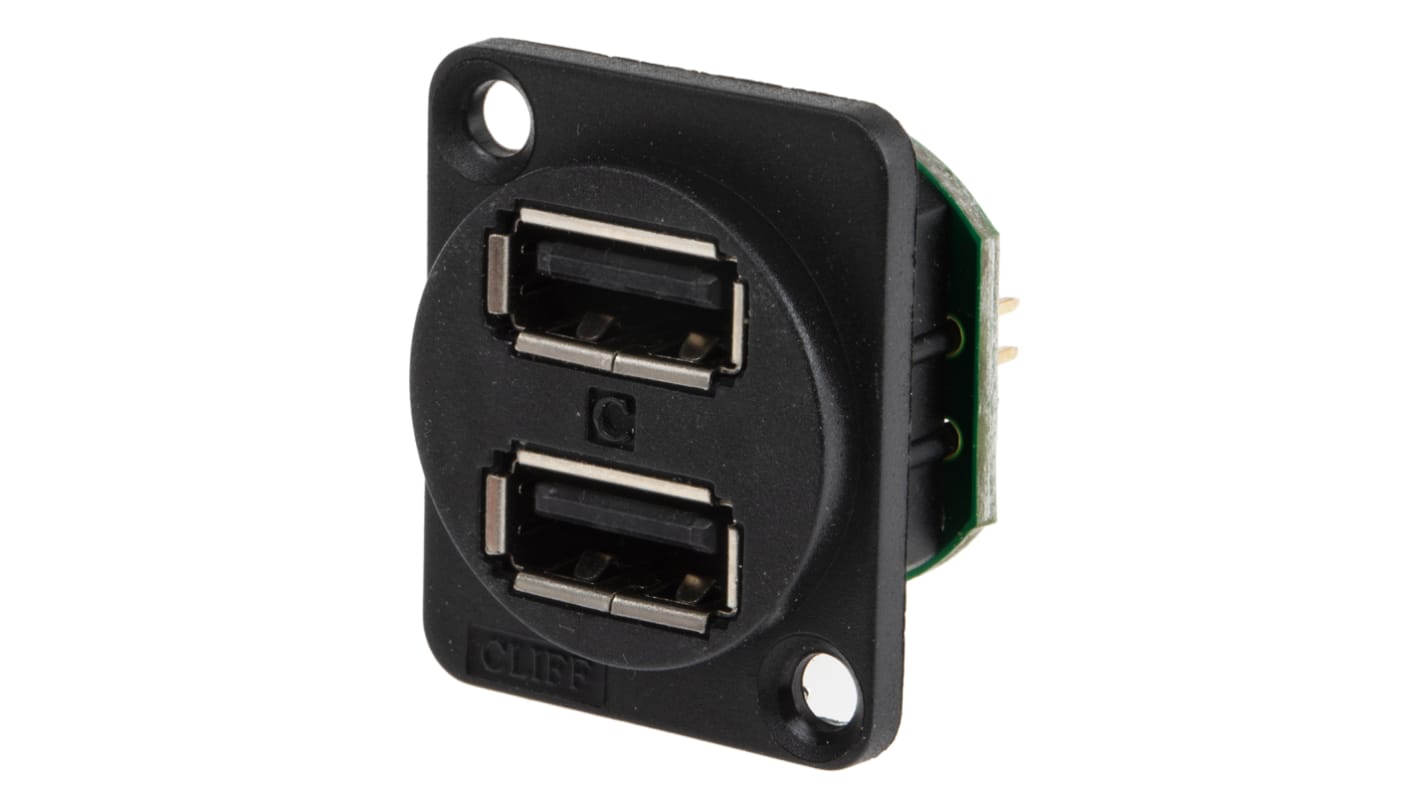

RS PRO USB Connector, Panel Mount, Socket 2.0, Solder, Straight-Dual Port


When you're looking for a dual USB 2.0 socket for panel mounting, turn to this USB connector from the RS PRO range. It conveniently mounts the two sockets in a single space-saving receptacle that can be fitted to a standard XLR format chassis. The output connection header pins can be soldered directly onto PCBs or connected by header cable.

The housing of this socket has been configured to allow industry-standard panel cutouts and maximum panel mounting density. The straight body orientation makes for easy installation. A dust cover is available separately to provide extra protection.

The connector has been tested against a range of international standards to ensure its safety and effectiveness. It complies with RoHS (Reduction of Hazardous Materials) standards and won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). A dual USB connector is commonly found in video and audio equipment.

Features and Benefits


• Dual USB socket

• Type A connector

• Panel mount

• Straight orientation

• Compatible with standard XLR chassis

• Termination by solder

• RoHS compliant on hazardous substances

• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
