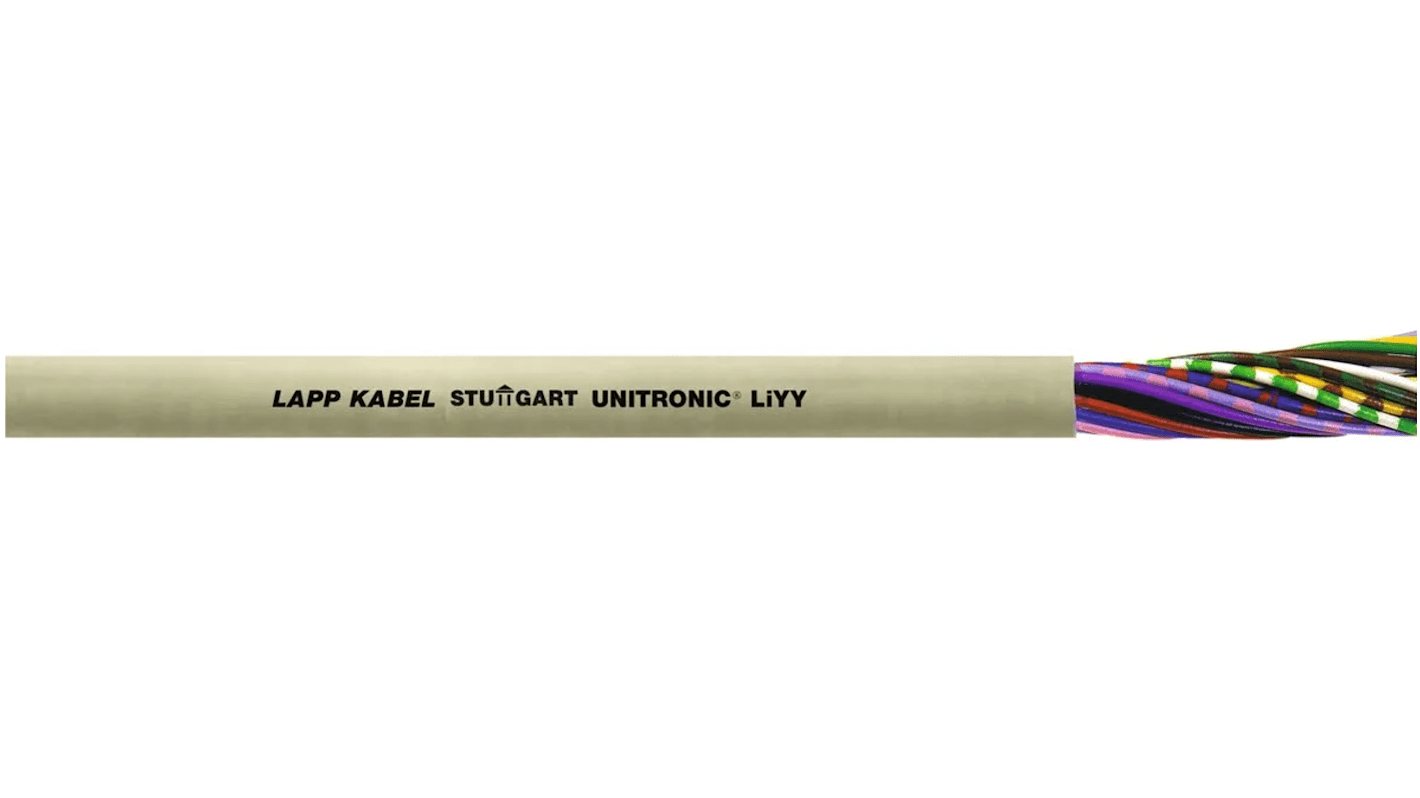

Lapp UNITRONIC LiYY Series Data Cable, 7 Cores, 0.14 mm², Unscreened, 26 AWG, 100m, LiYY Cable

본 제품군 열람하기

Subtotal (1 reel of 100 metres)*

₩117,488.72

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
  • 추가로 2026년 3월 24일 부터 6 개 단위 배송
  • 추가로 2026년 4월 14일 부터 14 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당
릴당
미터당*
1 +₩117,488.72₩1,175.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
491-8589
Distrelec 제품 번호:
301-72-994
제조사 부품 번호:
0028207
제조업체:
Lapp
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Lapp

Cross Sectional Area

0.14 mm²

Number of Cores

7

American Wire Gauge

26 AWG

Screened/Unscreened

Unscreened

Length

100m

CPR Certification

Eca

Sheath Colour

Grey

Cable Type

LiYY

Outer Diameter

4.2mm

Outer Sheath Material

PVC

Cable Shape

Multicore

Voltage Rating

350 V

Shielded/Unshielded

Unshielded

Core Strands

18/0.10 mm

Fire Behaviour

Flame Retardant

Standards Met

CE

Series

UNITRONIC LiYY

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
DE

Lapp UNITRONIC LiYY Series Data Cable, Length 100m, 26 AWG - 0028207


This data cable by Lapp is a versatile and reliable option for data transmission. It is a multicore cable with a flame retardant PVC sheath, making it suitable for various applications. With a voltage rating of 350V and a temperature range from -40°C to +80°C, this cable offers excellent performance in both fixed installations and occasional flexing scenarios.

Features & Benefits


• Multicore cable with 7 cores, each with a cross-sectional area of 0.14 mm²
• Flame retardant PVC outer sheath for enhanced safety
• Compact design with a small outer diameter of 4.2 mm

Applications


• Control and signal cable in electronics
• Suitable for electronic control equipment, office machines, balances, etc.
• Ideal for use in dry or damp rooms with occasional flexing

Can it be used in electronic control equipment?


Yes, it is suitable for use in electronic control equipment due to its versatile design and performance.

Will it provide reliable data transmission in various applications?


Yes, this multicore cable is designed to offer reliable data transmission in a wide range of applications, including electronics and office machinery.

Is it suitable for use in damp environments?


Yes, this cable is suitable for use in both dry and damp rooms, making it a versatile option for various settings.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
