Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 4 Pairs, 8 Cores, 0.56 mm², Screened, 20 AWG,

RS 제품 번호:: 187-1986
Distrelec 제품 번호:: 301-34-038
제조사 부품 번호:: 2467C SL005
제조업체:: Alpha Wire

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 4 Pairs, 8 Cores, 0.56 mm², Screened, 20 AWG,

Subtotal (1 reel of 30 metres)*

₩1,107,808.80

재고있음

660 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
30 +	₩36,926.96	₩1,107,808.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 187-1986
Distrelec 제품 번호:: 301-34-038
제조사 부품 번호:: 2467C SL005
제조업체:: Alpha Wire

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Alpha Wire
	Number of Pairs	4
	Cross Sectional Area	0.56 mm²
	Number of Cores	8
	American Wire Gauge	20 AWG
	Screened/Unscreened	Screened
	Length	30m
	Shield Type	Aluminium/Mylar Tape
	Sheath Colour	Grey
	Cable Type	Control
	Outer Diameter	9.22mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	66 Ω
	Maximum Operating Temperature	+75°C
	Shielded/Unshielded	Shielded
	Standards Met	CSA, UL
	Minimum Operating Temperature	-20°C
	Series	Alpha Essentials Communication & Control
	Core Strands	7/28 AWG
	Voltage Rating	300 V

	모두 선택
	브랜드 Alpha Wire
	Number of Pairs 4
	Cross Sectional Area 0.56 mm²
	Number of Cores 8
	American Wire Gauge 20 AWG
	Screened/Unscreened Screened
	Length 30m
	Shield Type Aluminium/Mylar Tape
	Sheath Colour Grey
	Cable Type Control
	Outer Diameter 9.22mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 66 Ω
	Maximum Operating Temperature +75°C
	Shielded/Unshielded Shielded
	Standards Met CSA, UL
	Minimum Operating Temperature -20°C
	Series Alpha Essentials Communication & Control
	Core Strands 7/28 AWG
	Voltage Rating 300 V

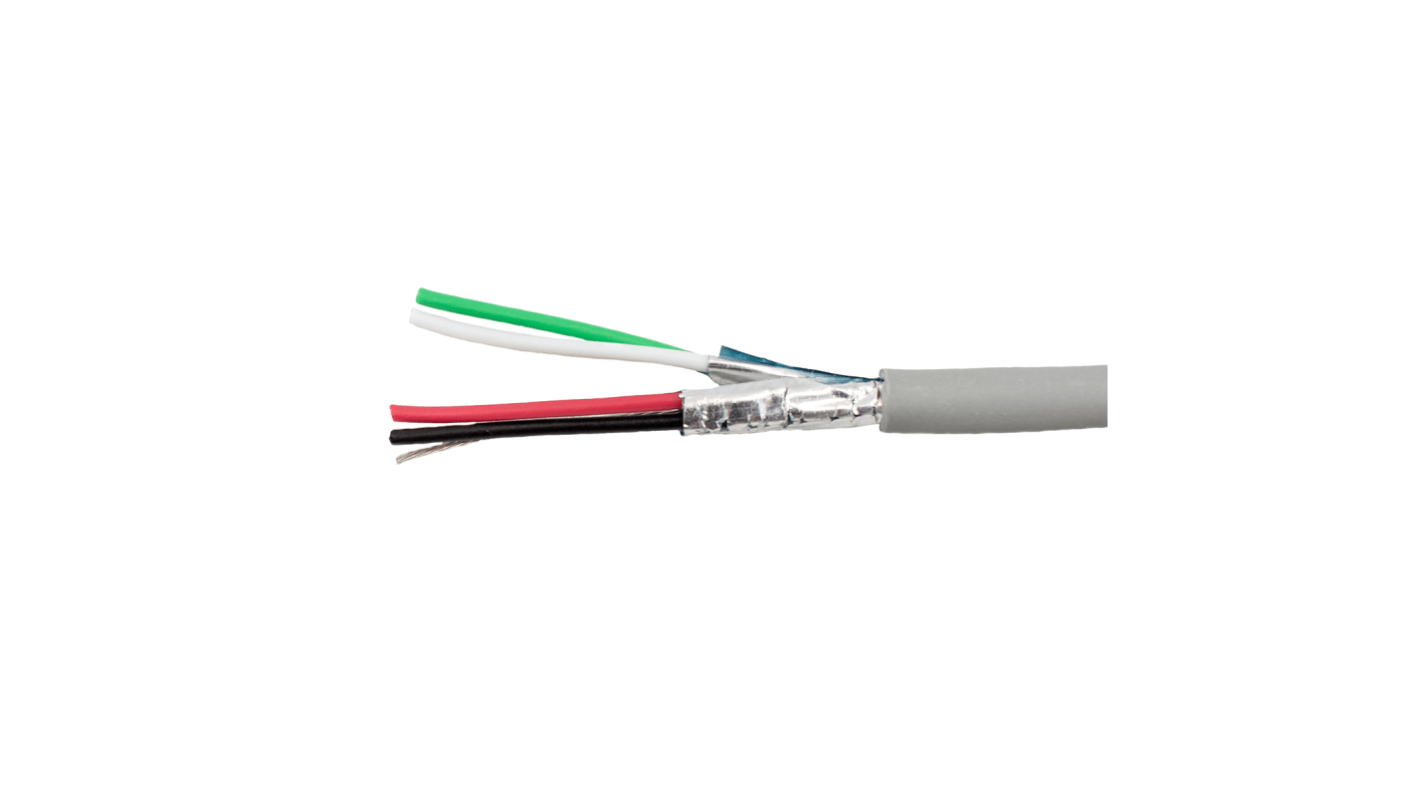

Alpha Wire Data Cable, PVC, Aluminium/Mylar Tape Shield - 2467C SL005

This high-quality Alpha Wire twisted pair data cable in 20 AWG is shielded with PVC material, boasting a characteristic impedance of 66Ω. With an outer diametre of 9.22mm, this cable features an aluminium/Mylar tape shield for optimal protection against interference. The Alpha Wire is designed to meet the stringent requirements of automation, electronics, electrical, and mechanical industries, offering reliable data transmission capabilities.

Features & Benefits

• Enhances signal integrity and reduces crosstalk for improved data transmission
• Provides maximum protection against external interference ensuring data accuracy
• Offers additional shielding to minimise electromagnetic interference
• Suitable for use in diverse applications with varying voltage requirements
• Meets industry standards for durability and performance in demanding environments

Applications

• Ideal for automation systems requiring reliable data transmission.
• Suitable for use in electronic devices for efficient communication.
• Perfect for electrical installations where signal integrity is critical.
• Great for applications in the mechanical industry where precision is essential.

Can it withstand high voltage requirements?

It has a voltage rating of 300 V, making it suitable for various applications with diverse voltage needs.

Will it provide reliable data transmission in automation systems?

Yes, the twisted pair design ensures superior signal integrity, ideal for automation applications.

Is the cable resistant to electromagnetic interference?

The aluminium/Mylar tape shield offers excellent protection against interference, ensuring data accuracy.

Can it be used in electronic devices for efficient communication?

Yes, the shielded PVC construction makes it perfect for electronic applications requiring reliable data transfer.
