Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 6 Pairs, 12 Cores, 0.23 mm², Screened, 24 AWG,
- RS 제품 번호:
- 111-8994
- Distrelec 제품 번호:
- 301-34-054
- 제조사 부품 번호:
- 5476C SL005
- 제조업체:
- Alpha Wire
대량 구매 할인 기용 가능
Subtotal (1 reel of 30 metres)*
₩403,542.00
재고있음
- 추가로 2025년 12월 22일 부터 8 개 단위 배송
- 추가로 2026년 2월 24일 부터 6 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 14 | ₩403,542.00 | ₩13,451.40 |
| 15 + | ₩383,388.40 | ₩12,780.24 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 111-8994
- Distrelec 제품 번호:
- 301-34-054
- 제조사 부품 번호:
- 5476C SL005
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Number of Pairs | 6 | |
| Cross Sectional Area | 0.23 mm² | |
| Number of Cores | 12 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 30m | |
| Shield Type | F/UTP | |
| Sheath Colour | Grey | |
| Cable Type | Control | |
| Outer Diameter | 7.42mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 82 Ω | |
| Standards Met | CE, CSA, UL | |
| Shielded/Unshielded | Shielded | |
| Core Strands | 7/0.2 mm | |
| Voltage Rating | 300 V | |
| Series | Alpha Essentials Communication & Control | |
| Fire Behaviour | Flame Retardant | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Number of Pairs 6 | ||
Cross Sectional Area 0.23 mm² | ||
Number of Cores 12 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 30m | ||
Shield Type F/UTP | ||
Sheath Colour Grey | ||
Cable Type Control | ||
Outer Diameter 7.42mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 82 Ω | ||
Standards Met CE, CSA, UL | ||
Shielded/Unshielded Shielded | ||
Core Strands 7/0.2 mm | ||
Voltage Rating 300 V | ||
Series Alpha Essentials Communication & Control | ||
Fire Behaviour Flame Retardant | ||

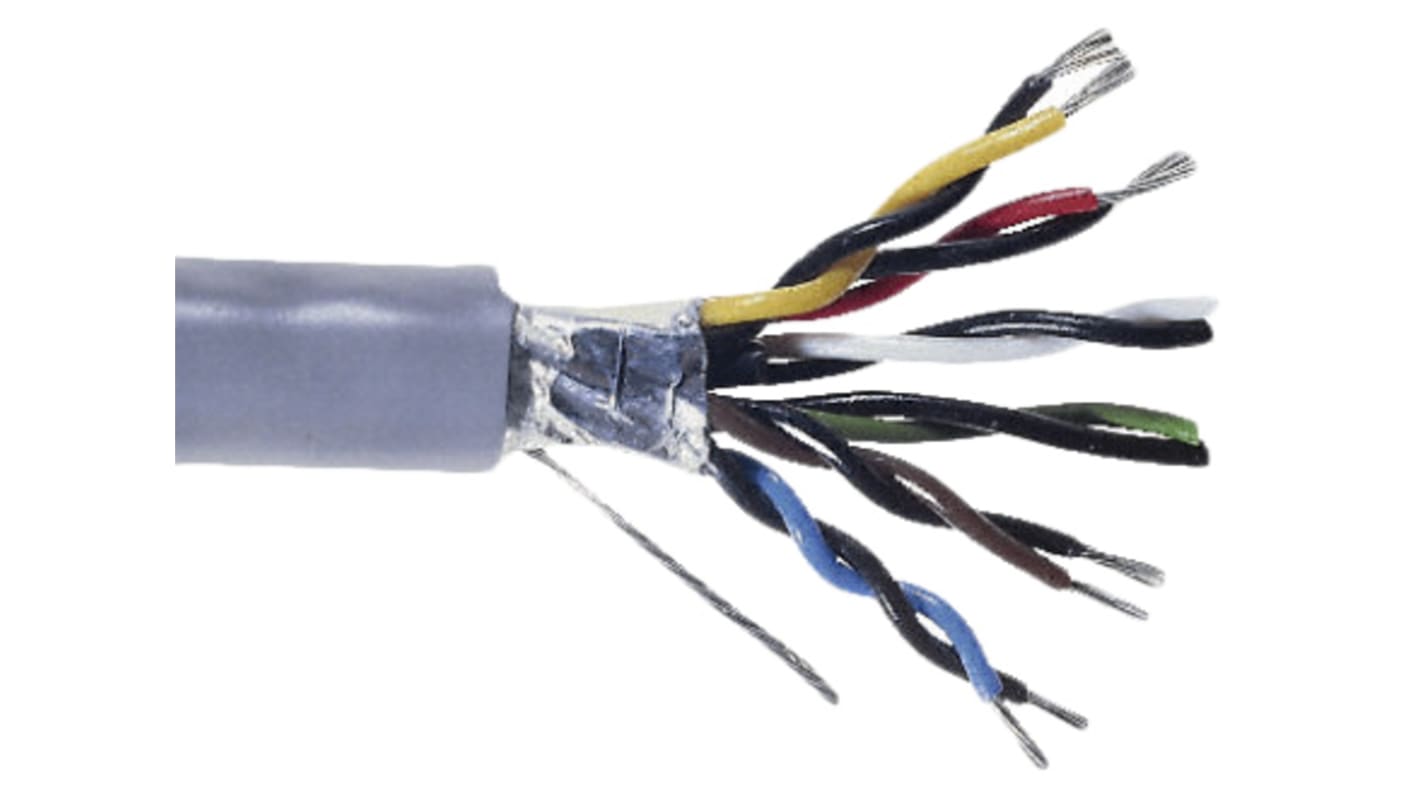

Foil Shielded Multi-pair
The Alpha Wire foil shielded multi-pair cable contains 24 AWG stranded tinned copper wire conductors; the foil shield is made of aluminium/mylar tape facing inwards. The low capacitance of this cable improves transmission and signal integrity.
Features and benefits
Foil shield offers good high-frequency shielding
Stranded tinned copper conductors improve flexibility
PVC insulation provides good resistance to abrasion, chemicals, and water
Flame Retardant to rating FT4
Applications
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Approvals
UL Recognised, CSA
Approvals
UL2464 Type CM
