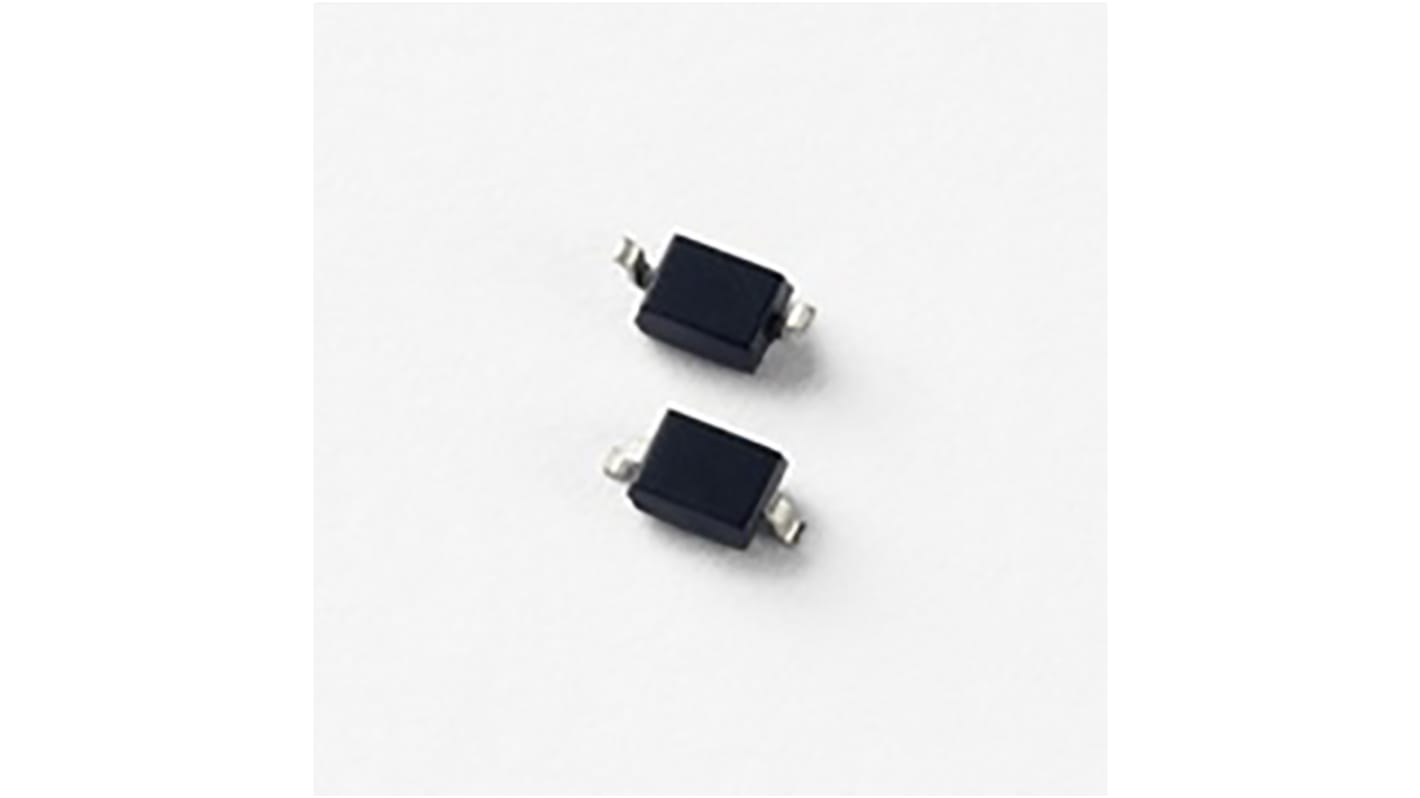

Littelfuse SD15C-01FTG, Bi-Directional TVS Diode Array, 450W, 2-Pin SOD-323
- RS 제품 번호:
- 171-9655P
- 제조사 부품 번호:
- SD15C-01FTG
- 제조업체:
- Littelfuse
대량 구매 할인 기용 가능
Subtotal 750 units (supplied on a reel)*
₩297,510.00
일시적 품절
- 2026년 2월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 750 - 1475 | ₩396.68 |
| 1500 + | ₩391.04 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 171-9655P
- 제조사 부품 번호:
- SD15C-01FTG
- 제조업체:
- Littelfuse
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Littelfuse | |
| Diode Configuration | Single | |
| Direction Type | Bi-Directional | |
| Maximum Clamping Voltage | 31V | |
| Mounting Type | Surface Mount | |
| Package Type | SOD-323 | |
| Maximum Reverse Stand-off Voltage | 15V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 450W | |
| Maximum Peak Pulse Current | 12A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 1.9 x 1.45 x 1.04mm | |
| Maximum Operating Temperature | +125 °C | |
| Length | 1.9mm | |
| Automotive Standard | AEC-Q101 | |
| Capacitance | 75pF | |
| Width | 1.45mm | |
| Maximum Reverse Leakage Current | 1µA | |
| Height | 1.04mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Littelfuse | ||
Diode Configuration Single | ||
Direction Type Bi-Directional | ||
Maximum Clamping Voltage 31V | ||
Mounting Type Surface Mount | ||
Package Type SOD-323 | ||
Maximum Reverse Stand-off Voltage 15V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 450W | ||
Maximum Peak Pulse Current 12A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 1.9 x 1.45 x 1.04mm | ||
Maximum Operating Temperature +125 °C | ||
Length 1.9mm | ||
Automotive Standard AEC-Q101 | ||
Capacitance 75pF | ||
Width 1.45mm | ||
Maximum Reverse Leakage Current 1µA | ||
Height 1.04mm | ||
- COO (Country of Origin):
- PH
Littelfuse SD-C Series 450W Discrete Bidirectional TVS Diodes are designed to protect against destructive electrostatic discharges (ESD) and lightning-induced surge currents. These fast-acting TVS Diodes are ideal for replacing multilayer varistors (MLVs) in low speed and DC applications because they can safely absorb repetitive ESD strikes at ±30kV without performance degradation and safely dissipate up to 30A of surge current. Their low dynamic resistance provides up to a 50 percent reduction in clamping voltage compared to competing technologies
Low dynamic resistance
No inherent wear-out factor
SOD-323 package fits inside existing 0805 PCB footprints
Protecting buttons, switches, power ports, and other various low-speed I/Os in:
Automotive electronics
Test equipment
Point-of-sales terminals
Notebook computers
Servers
Medical equipment
No inherent wear-out factor
SOD-323 package fits inside existing 0805 PCB footprints
Protecting buttons, switches, power ports, and other various low-speed I/Os in:
Automotive electronics
Test equipment
Point-of-sales terminals
Notebook computers
Servers
Medical equipment
