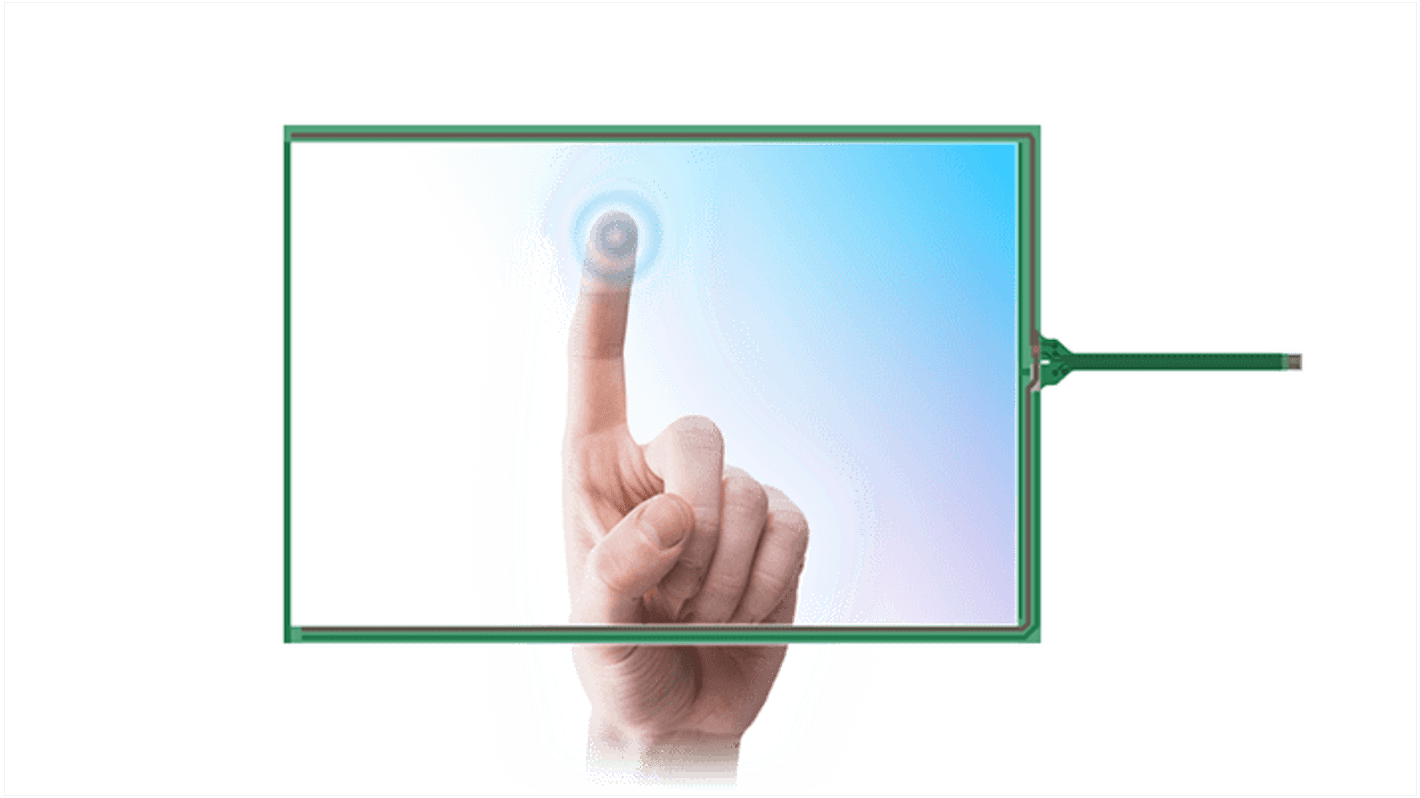

DMC Co Ltd AST-121A080A 12.1in 4-wire Resistive Touch Screen Overlay, 251 x 189mm
- RS 제품 번호:
- 171-1807
- 제조사 부품 번호:
- AST-121A080A
- 제조업체:
- DMC Co Ltd
현재 액세스할 수 없는 재고 정보
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 171-1807
- 제조사 부품 번호:
- AST-121A080A
- 제조업체:
- DMC Co Ltd
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | DMC Co Ltd | |
| Viewing Area Diagonal Size | 12.1in | |
| Viewing Area Dimensions | 251 x 189mm | |
| Active Area | 247 x 185.5mm | |
| Sensor Type | 4 Wire Resistive | |
| Active Area Height | 247mm | |
| Active Area Width | 185.5mm | |
| External Height | 262mm | |
| External Width | 199mm | |
| Viewing Area Height | 251mm | |
| Viewing Area Width | 189mm | |
| Voltage Rating | 6V dc | |
| Current Rating | 100mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 DMC Co Ltd | ||
Viewing Area Diagonal Size 12.1in | ||
Viewing Area Dimensions 251 x 189mm | ||
Active Area 247 x 185.5mm | ||
Sensor Type 4 Wire Resistive | ||
Active Area Height 247mm | ||
Active Area Width 185.5mm | ||
External Height 262mm | ||
External Width 199mm | ||
Viewing Area Height 251mm | ||
Viewing Area Width 189mm | ||
Voltage Rating 6V dc | ||
Current Rating 100mA | ||
- COO (Country of Origin):
- JP
Resistive Touch Screens, DMC
Standard 4-wire resistive touch screens suitable for most displays and applications.
Light Transmittance: 80% (typical)
Maximum Voltage: 6Vdc
Activation Force: 0.05N to 0.8N
Terminal Resistance: <1kΩ
Operating Temp: -20°C to 70°C
Operating Life:>10 million touches
DMC Touchscreens
Note
See stock number 476-444 for analogue touch screen controller card.
