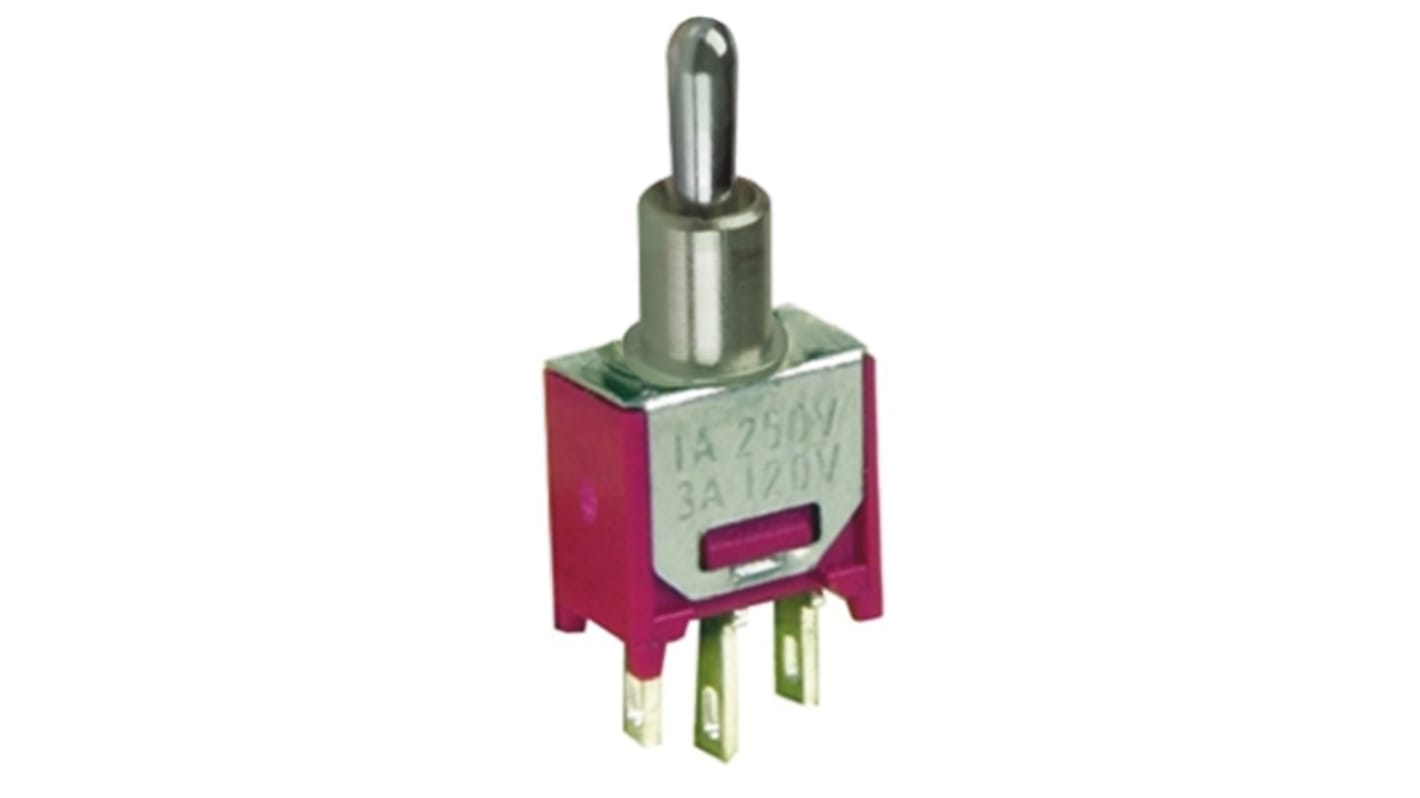

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 15 V dc, 240 V ac
- RS 제품 번호:
- 734-7211
- 제조업체:
- RS PRO
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩3,760.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩3,760.00 |
| 5 + | ₩3,100.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 734-7211
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-On | |
| Switch Contact Current | 3A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| IP Rating | IP56, IP66 | |
| Illuminated | No | |
| Panel Cutout Size | 4.95 mm | |
| Actuator Length | 9.4mm | |
| Minimum Operating Temperature | -30°C | |
| Contact DC Voltage | 15V dc | |
| Contact AC Voltage | 240V ac | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Chrome Plated Brass | |
| Switch Configuration | On-On | |
| Series | RS PRO | |
| Standards/Approvals | UL, RoHS, CSA, CE | |
| Length | 9.4mm | |
| Mechanical Life | 30000Cycles | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-On | ||
Switch Contact Current 3A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
IP Rating IP56, IP66 | ||
Illuminated No | ||
Panel Cutout Size 4.95 mm | ||
Actuator Length 9.4mm | ||
Minimum Operating Temperature -30°C | ||
Contact DC Voltage 15V dc | ||
Contact AC Voltage 240V ac | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Chrome Plated Brass | ||
Switch Configuration On-On | ||
Series RS PRO | ||
Standards/Approvals UL, RoHS, CSA, CE | ||
Length 9.4mm | ||
Mechanical Life 30000Cycles | ||
Toggle Switches, Sub-Miniature - RS Series
RS series of sub-miniature toggle switches with a low contact resistance and are available with either Silver (Q) or Gold (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
