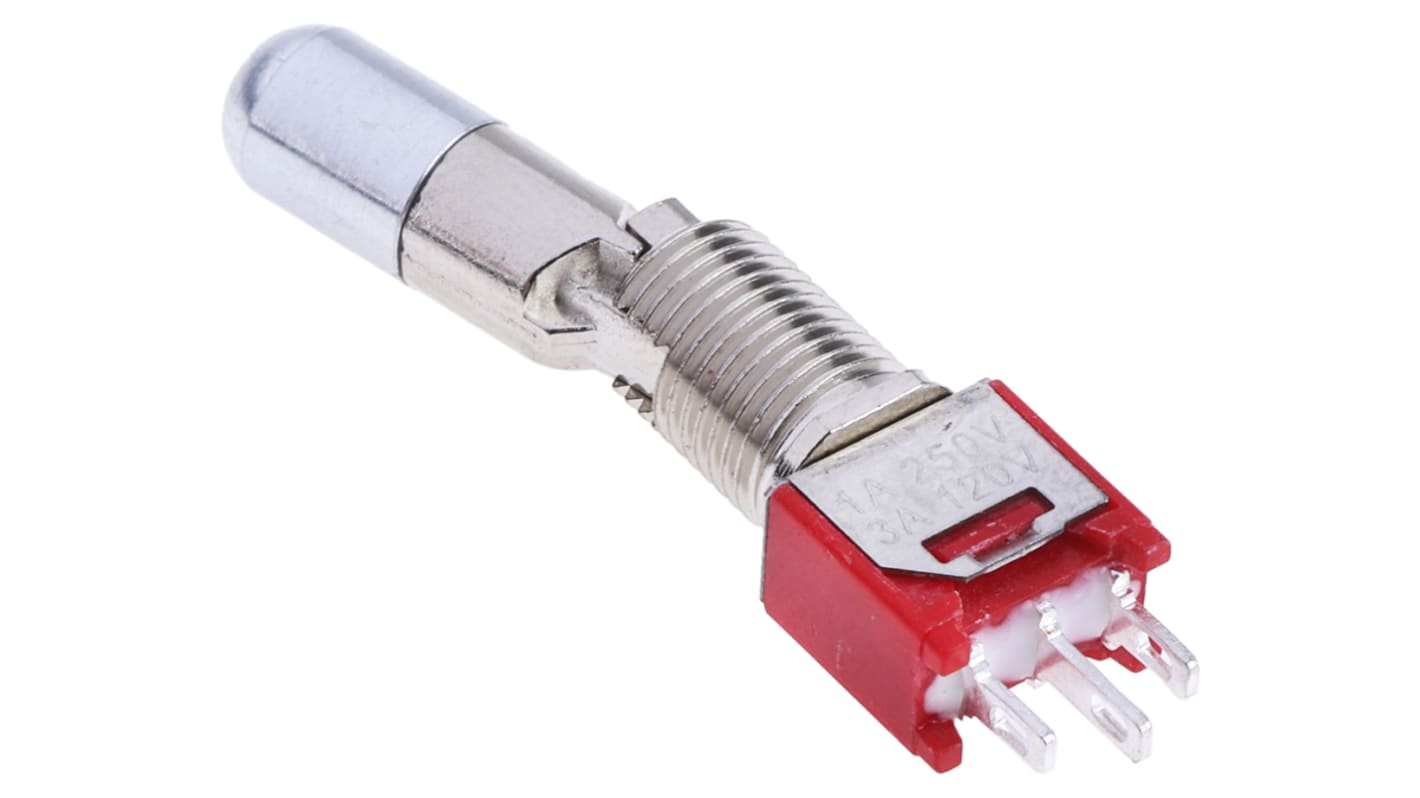

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 28 V dc, 240 V ac
- RS 제품 번호:
- 394-471
- Distrelec 제품 번호:
- 304-03-038
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩9,287.20
재고있음
- 165 개 단위 배송 준비 완료
- 추가로 2026년 8월 18일 부터 500 개 단위 배송
- 추가로 2026년 9월 15일 부터 1,000 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩9,287.20 |
| 25 - 99 | ₩9,136.80 |
| 100 - 249 | ₩8,911.20 |
| 250 - 1249 | ₩8,666.80 |
| 1250 + | ₩7,144.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 394-471
- Distrelec 제품 번호:
- 304-03-038
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Contact Configuration | SPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Switch Contact Current | 3A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| IP Rating | IP66, IP56 | |
| Illuminated | No | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 16mm | |
| Contact AC Voltage | 240V ac | |
| Contact DC Voltage | 28V dc | |
| Actuator Material | Brass | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | DPDT, SPDT | |
| Standards/Approvals | UL, CSA, CE, RoHS | |
| Mechanical Life | 30000Cycles | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Contact Configuration SPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Switch Contact Current 3A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
IP Rating IP66, IP56 | ||
Illuminated No | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 16mm | ||
Contact AC Voltage 240V ac | ||
Contact DC Voltage 28V dc | ||
Actuator Material Brass | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration DPDT, SPDT | ||
Standards/Approvals UL, CSA, CE, RoHS | ||
Mechanical Life 30000Cycles | ||
- COO (Country of Origin):
- CN
RS PRO SPDT Toggle Switch, Latching, Panel Mounting
Use a single input to control two separate circuits with this RS PRO SPDT (Single Pole Double Throw) switch. This type of device is commonly used to control industrial machines, motors and relays. To ensure reliable connections, this switch has high-quality brass contacts. The terminals are also epoxy-sealed to prevent contamination during soldering, ensuring that the solder won't break.
To prevent accidental operation, the toggle on this switch locks into the selected position when actuated. The casing is made of diallyl phthalate (DAP), which complies with the Underwriters' Laboratories UL-94-V0 safety standard. In the event of a fire, this means that it won't burn for more than 50 seconds. You can count on a lengthy service life thanks to its mechanical life of 30,000 cycles.
Features and Benefits
Applications
