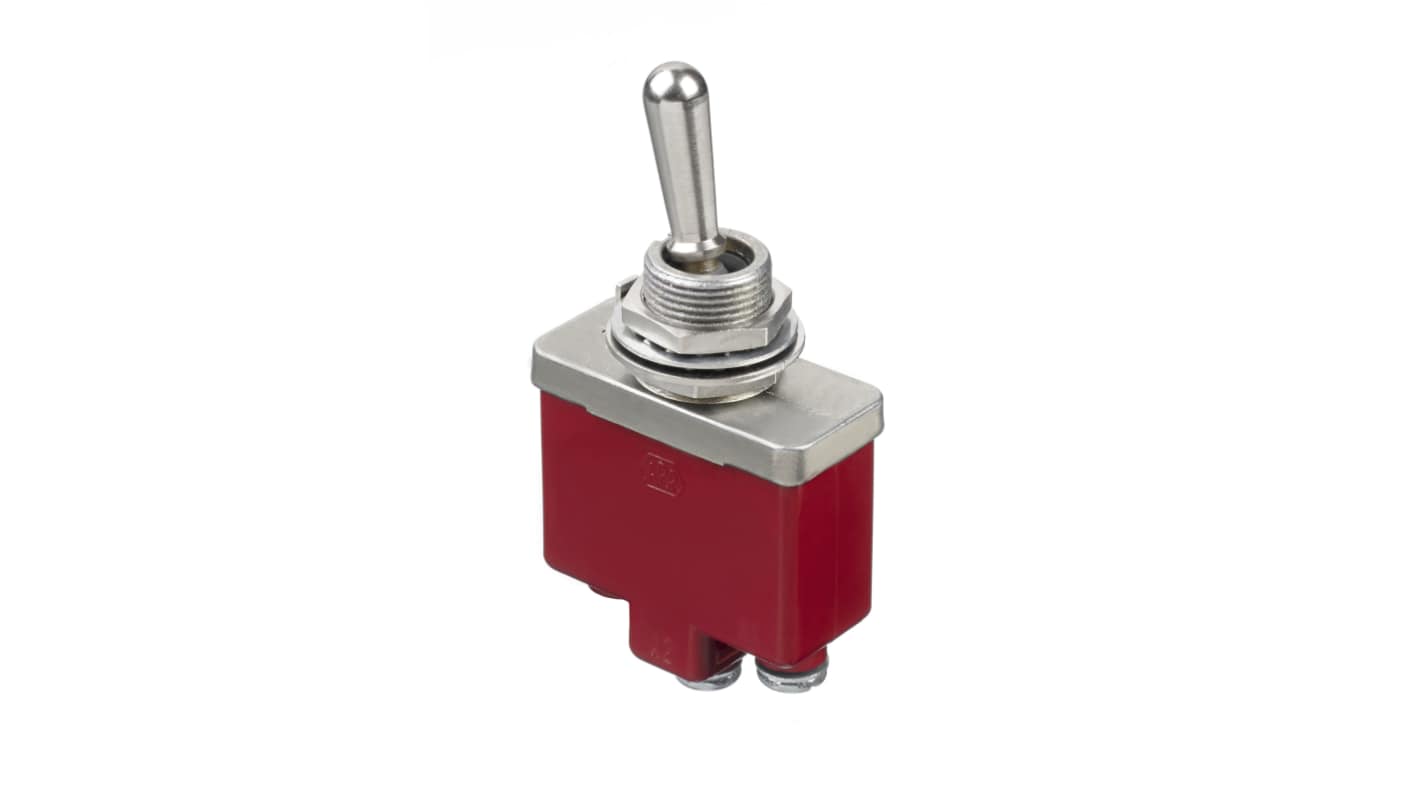

APEM Toggle Switch, Panel Mount, On-Off, SPST, Screw Terminal, 28 V dc, 250 V ac
- RS 제품 번호:
- 428-034
- 제조사 부품 번호:
- CT31-001N022
- 제조업체:
- APEM
Subtotal (1 unit)*
₩26,602.00
재고있음
- 33 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩26,602.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 428-034
- 제조사 부품 번호:
- CT31-001N022
- 제조업체:
- APEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | APEM | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Switch Contact Current | 15 A | |
| Mount Type | Panel | |
| Terminal Type | Screw | |
| IP Rating | IP67 | |
| Panel Cutout Size | 11.9 mm | |
| Contact AC Voltage | 250V ac | |
| Actuator Length | 17.5mm | |
| Contact DC Voltage | 28V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | Mom-Off-Mom | |
| Standards/Approvals | UL Approved | |
| Series | CT | |
| Height | 61.4mm | |
| Width | 15 mm | |
| Length | 32mm | |
| Mechanical Life | 40Cycles | |
| 모두 선택 | ||
|---|---|---|
브랜드 APEM | ||
Product Type Toggle Switch | ||
Contact Configuration SPST | ||
Switch Operation On-Off | ||
Switch Contact Current 15 A | ||
Mount Type Panel | ||
Terminal Type Screw | ||
IP Rating IP67 | ||
Panel Cutout Size 11.9 mm | ||
Contact AC Voltage 250V ac | ||
Actuator Length 17.5mm | ||
Contact DC Voltage 28V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration Mom-Off-Mom | ||
Standards/Approvals UL Approved | ||
Series CT | ||
Height 61.4mm | ||
Width 15 mm | ||
Length 32mm | ||
Mechanical Life 40Cycles | ||
- COO (Country of Origin):
- FR
The APEM Sealed toggle switches feature front sealing to IP67. They can operate within a temperature range of -40°C to +85°C and have a mechanical life of 40,000 cycles. The maximum torque applied to the nut is 2 Nm. The switches offer a maximum current/voltage rating with a resistive load and electrical life at full load, as detailed in the table. The initial contact resistance is 50 mΩ maximum, and the insulation resistance is 1,000 MΩ minimum at 500 VDC.
Completely sealed switching chamber
Three types of terminals
UL approved
