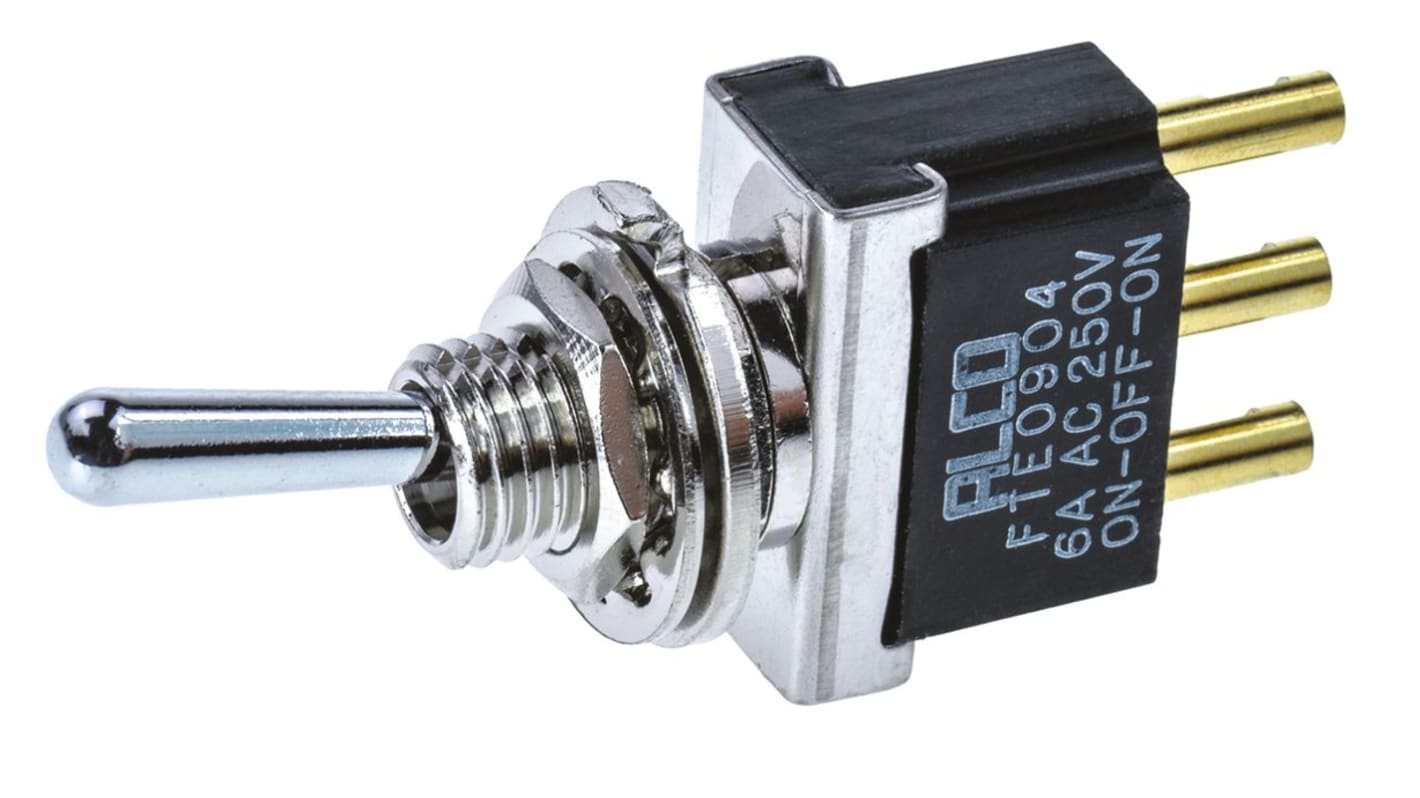

TE Connectivity Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal, 12 V dc, 250 V ac
- RS 제품 번호:
- 317-005
- 제조사 부품 번호:
- FTE0904
- 제조업체:
- TE Connectivity
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 317-005
- 제조사 부품 번호:
- FTE0904
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-Off-On | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| IP Rating | IP68, IP67 | |
| Illuminated | No | |
| Panel Cutout Size | 6.2 mm | |
| Contact DC Voltage | 12V dc | |
| Minimum Operating Temperature | -20°C | |
| Contact AC Voltage | 250V ac | |
| Actuator Length | 10.5mm | |
| Actuator Material | Chrome Plated Brass | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 80°C | |
| Series | FT | |
| Standards/Approvals | UL, RoHS, IEC, EN, cULus | |
| Mechanical Life | 100000Operations | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-Off-On | ||
Mount Type Panel | ||
Terminal Type Solder | ||
IP Rating IP68, IP67 | ||
Illuminated No | ||
Panel Cutout Size 6.2 mm | ||
Contact DC Voltage 12V dc | ||
Minimum Operating Temperature -20°C | ||
Contact AC Voltage 250V ac | ||
Actuator Length 10.5mm | ||
Actuator Material Chrome Plated Brass | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 80°C | ||
Series FT | ||
Standards/Approvals UL, RoHS, IEC, EN, cULus | ||
Mechanical Life 100000Operations | ||
Toggle Switches, Min, Professional
Slow make-and-break action
Chrome-plated lever
Solder bucket terminals
A waterproof cover stock no. 321-212 is available (see accessories)
Silver contacts apart from stock nos. 317-077 317-106 317-099 317-112 317-128 and 317-083 which have gold contacts
0.4VA max load
Glass Filled Polyester case
Note
Care should be taken when soldering not to overheat the switch assembly
For biased switches '(on)' refers to momentary 'on' position
For biased switches '(on)' refers to momentary 'on' position
Approvals
CSA
