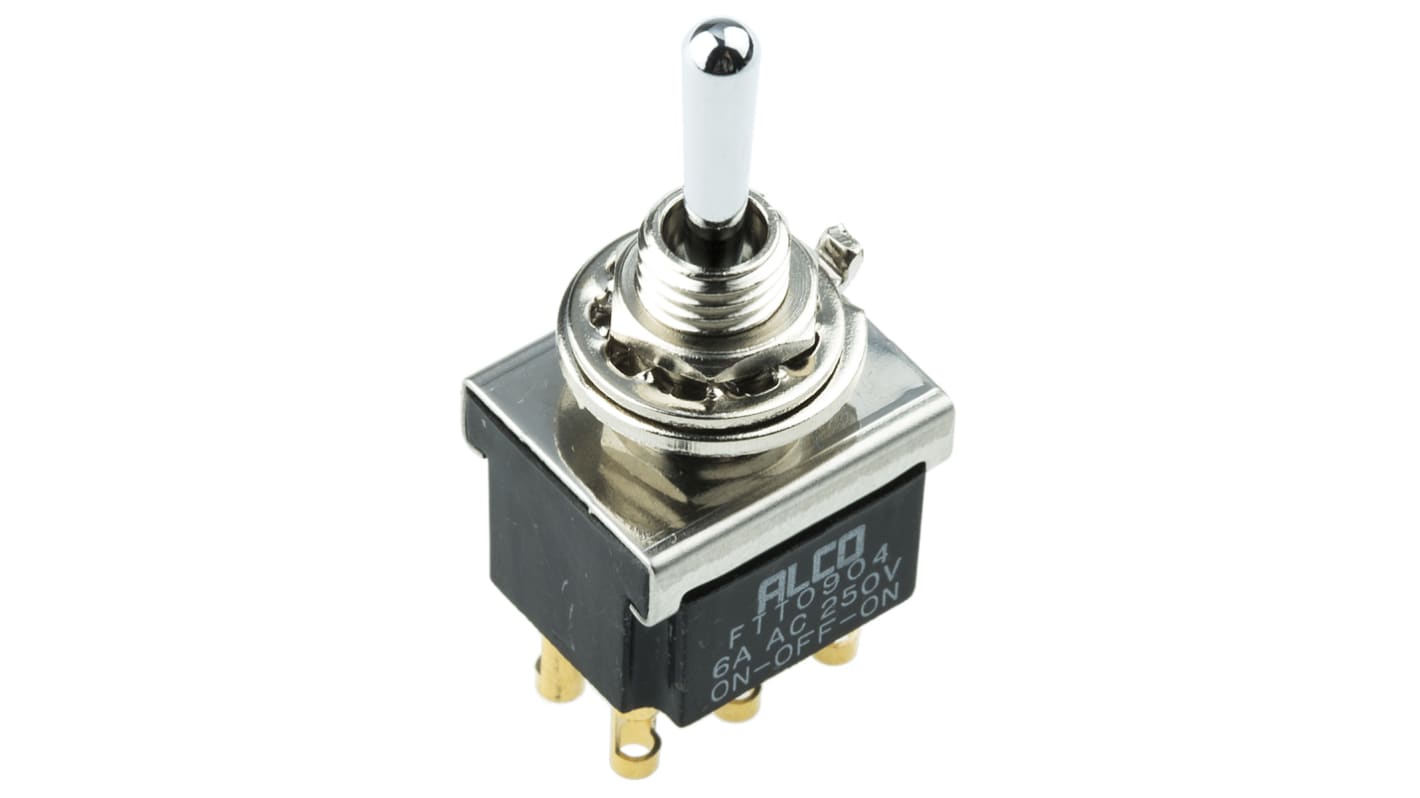

TE Connectivity Toggle Switch, Panel Mount, On-Off-(On), DPDT, Solder Terminal, 125V ac
- RS 제품 번호:
- 317-184
- 제조사 부품 번호:
- FTT0904
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩32,730.80
마지막 RS 재고
- 최종적인 114 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩32,730.80 |
| 25 - 49 | ₩32,166.80 |
| 50 + | ₩31,565.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 317-184
- 제조사 부품 번호:
- FTT0904
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Contact Configuration | Double Pole Double Throw (DPDT) | |
| Switch Operation | On-Off-(On) | |
| Contact Current Rating | 6 A @ 250 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Panel Cut Out Diameter | 6.2mm | |
| Actuator Length | 10.5mm | |
| Actuator Material | Chrome Plated Brass | |
| Voltage Rating | 125 V ac, 250V ac | |
| Contact Material | Fine Silver | |
| Contact Resistance | 0.01Ω | |
| Mechanical Life | 100000Operations | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +80°C | |
| Standards Met | CSA Recognised, RoHS, UL 94V-0 | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Contact Configuration Double Pole Double Throw (DPDT) | ||
Switch Operation On-Off-(On) | ||
Contact Current Rating 6 A @ 250 V ac | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Panel Cut Out Diameter 6.2mm | ||
Actuator Length 10.5mm | ||
Actuator Material Chrome Plated Brass | ||
Voltage Rating 125 V ac, 250V ac | ||
Contact Material Fine Silver | ||
Contact Resistance 0.01Ω | ||
Mechanical Life 100000Operations | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +80°C | ||
Standards Met CSA Recognised, RoHS, UL 94V-0 | ||
Toggle Switches, Min, Professional
Note
Care should be taken when soldering not to overheat the switch assembly
For biased switches '(on)' refers to momentary 'on' position
For biased switches '(on)' refers to momentary 'on' position
Approvals
CSA
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
