RS PRO DIN Rail Mount Timer Relay, 24V ac, 1-Contact, 0.3 s → 30h, 1-Function, SPDT
- RS 제품 번호:
- 896-6810
- 제조업체:
- RS PRO
- RS 제품 번호:
- 896-6810
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- IN
제품 세부 사항

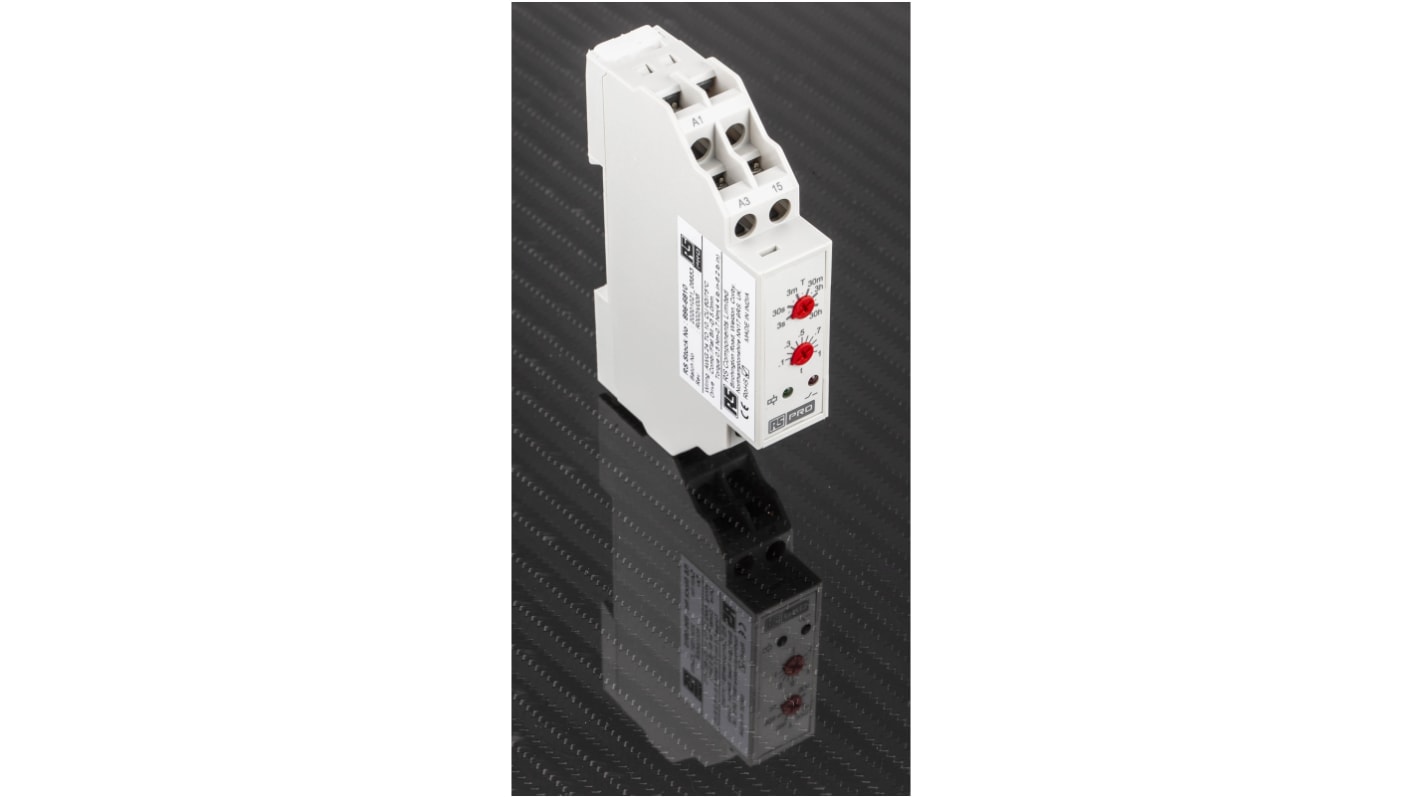

RS PRO On Delay Time Delay Relay- 17.5 mm
RS PRO On delay time delay relay is a dual voltage, single function timer that is compact in size and suitable for DIN Rail mounting.
Features and Benefits
• 17.5 mm width
• DIN Rail mounting
• Integrated dual voltage
• On delay timing function
• LED indications for power and relay status
• SPCO output relay
• 0.3s-30hrs timing range
• Wide supply voltage range
• IP20 (terminals), IP40 (enclosure) protection
• DIN Rail mounting
• Integrated dual voltage
• On delay timing function
• LED indications for power and relay status
• SPCO output relay
• 0.3s-30hrs timing range
• Wide supply voltage range
• IP20 (terminals), IP40 (enclosure) protection
• Offers a “one stop solution” for your power management system
• The two LED status indicators indicate status at a glance
• The Green LED is on when power is applied to the input terminals. The Red LED blinks during time-out and is ON when the output is energized
• Colour and appearance designed for high visibility in all environments
• Only 17.5 mm wide making it ideal for tight spaces
• Engineering availability allows for customized relay solutions
• The two LED status indicators indicate status at a glance
• The Green LED is on when power is applied to the input terminals. The Red LED blinks during time-out and is ON when the output is energized
• Colour and appearance designed for high visibility in all environments
• Only 17.5 mm wide making it ideal for tight spaces
• Engineering availability allows for customized relay solutions
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
사양
속성 | 값 |
|---|---|
| Supply Voltage | 24 V ac/dc, 240V ac |
| Mounting Type | DIN Rail |
| Mode of Operation | ON Delay |
| Time Range | 0.3 s → 30h |
| Number of Contacts | 1 |
| Number of Timer Functions | Single |
| Contact Configuration | SPDT |
| Time Increment | Seconds |
| Maximum Current | 5A |
| Maximum Voltage | 24 V ac/dc, 240V ac |
| Terminal Type | Screw |
| Switch Configuration | SPCO |
| Width | 90mm |
| Power Supply | External |
| Length | 17.5mm |
| Minimum Current | 0.1A |
| Depth | 58.5mm |
| Maximum Operating Temperature | +55°C |
| Time Delay | 100ms |
| Minimum Operating Temperature | -10°C |
