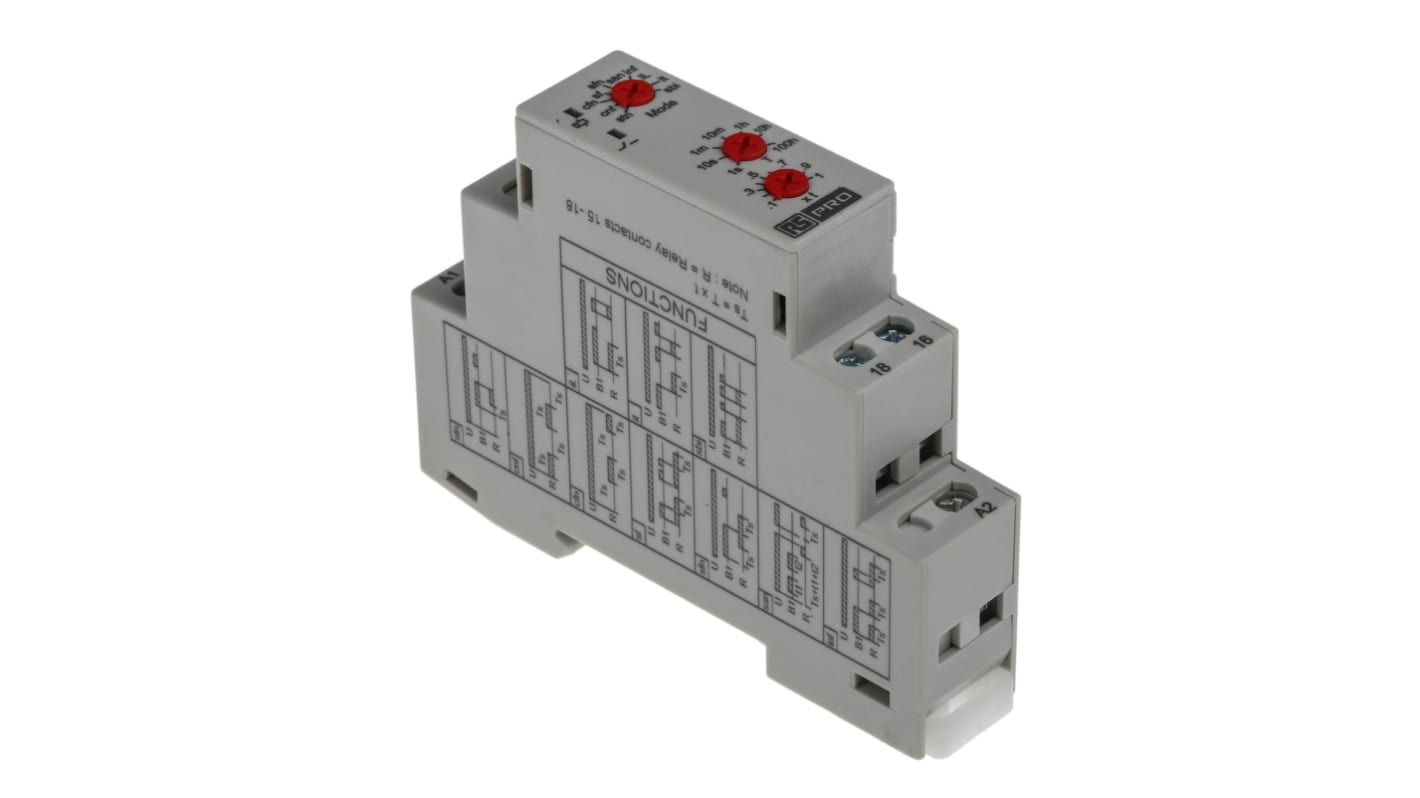

RS PRO 175 1M Series DIN Rail Timer Relay, 1-Contact, 240 V dc 12V ac, 240 V ac, 0.1 s to 100 h, Multifunction-Function,
- RS 제품 번호:
- 896-6813
- Distrelec 제품 번호:
- 303-91-282
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩76,252.80
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩76,252.80 |
| 5 - 24 | ₩74,109.60 |
| 25 + | ₩60,987.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 896-6813
- Distrelec 제품 번호:
- 303-91-282
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Timer Relay | |
| Function | Timer | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | CO | |
| Timing Adjustment | Knob | |
| Minimum Operating Temperature | -10°C | |
| Supply DC Voltage | 240 V dc | |
| Supply AC Voltage | 12, 240V ac | |
| Contact Current | 5A | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Standards/Approvals | RoHS | |
| Height | 65mm | |
| Length | 85mm | |
| Width | 18mm | |
| Series | 175 1M | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Timer Relay | ||
Function Timer | ||
Mount Type DIN Rail | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 1 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration CO | ||
Timing Adjustment Knob | ||
Minimum Operating Temperature -10°C | ||
Supply DC Voltage 240 V dc | ||
Supply AC Voltage 12, 240V ac | ||
Contact Current 5A | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Standards/Approvals RoHS | ||
Height 65mm | ||
Length 85mm | ||
Width 18mm | ||
Series 175 1M | ||
- COO (Country of Origin):
- IN
RS PRO Multi function Time Delay Relay- 17.5 mm Width
RS PRO multi function time delay relay is made to a high degree of precision and accuracy. The time settings can be set easily by using the knob on the front of the time delay relay.
Features and Benefits
• Multifunction- 10 different modes
• 17.5 mm width
• DIN Rail mounting
• LED indications for power and relay status
• SPCO output relay
• 100ms-100hrs timing range
• IP20 (terminals), IP40 (enclosure) protection
• Wide voltage range;• Offers a ''one stop solution' for your power management system
• The two LED status indicators indicate status at a glance
• The Green LED is on when power is applied to the input terminals. The Red LED blinks during time-out and is ON when the output is energized
• Colour and appearance designed for high visibility in all environments
• Only 17.5 mm wide making it ideal for tight spaces
• Engineering availability allows for customized relay solutions
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
