GIC DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.1 s → 999h, SPDT

모든 Timer Relays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩105,505.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 184 개 단위 배송 준비 완료
  • 추가로 2026년 1월 07일 부터 100 개 단위 배송
  • 추가로 2026년 2월 18일 부터 100 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 24₩105,505.60
25 - 49₩101,802.00
50 +₩98,023.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
714-0026
제조사 부품 번호:
V0DDTS
제조업체:
GIC
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

GIC

Supply Voltage

24 → 240V ac/dc

Mounting Type

DIN Rail

Mode of Operation

Cyclic OFF/ON, Cyclic ON/OFF, Interval, ON Delay, One Shot Output, Signal OFF Delay, Signal OFF/ON, Signal ON/OFF

Time Range

0.1 s → 999h

Number of Contacts

1

Number of Timer Functions

Multi Function

Contact Configuration

SPDT

Time Increment

Hours, Seconds

Maximum Current

8A

Maximum Voltage

240 V ac, 250V dc

Terminal Type

Screw

Switch Configuration

SPDT

Minimum Voltage

125V ac/dc

Width

17.5mm

Depth

76mm

Length

89mm

Minimum Current

0.1A

Maximum Operating Temperature

+55°C

Contact Material

Silver Tin

Minimum Operating Temperature

-10°C

COO (Country of Origin):
IN

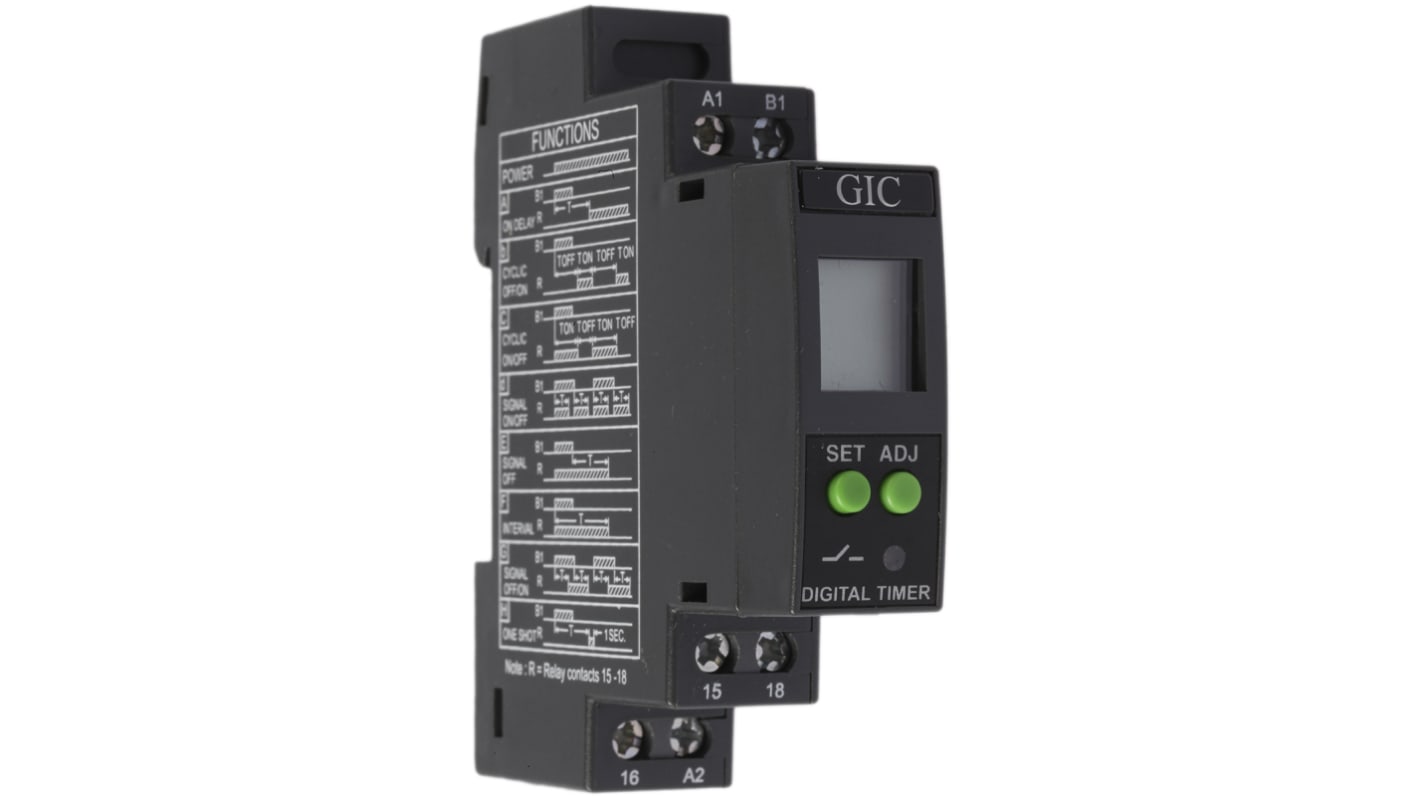

GIC Multi-function Timer Relay


The GIC multi-function timer relay is a compact digital equipment with high precision. It performs different delay functions like cyclic off/ on, cyclic on/ off, interval, ON delay, one-shot output, signal OFF delay, signal off/ on, and signal on/ off in the range of 0.1 seconds to 999 hours. This timer relay has a wide range of programming features that provide the user with a comprehensive range of timing functions to suit a wide variety of applications. Due to the highly versatile voltage range, this timer relay can be installed into new and existing applications in an extremely hassle free way. Its low cost and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits


Fine adjustment of selected time range
1C/O SPDT contact configuration with relay output 8A
Supply voltage ranges from 24VAC to 240VAC and 24VDC to 240VDC
8 selectable functions available
Covers a wide AC and DC voltage range for added installation flexibility
Flexible functionality with wide range applications
Selectable up/down counting modes to show elapsed/remaining time
3 digit LCD for pre-set time and running time
Option to select up/down counting
Tamper proof with key lock function
All settings accomplished with only two keys
Compact 17.5mm
Self-extinguishing housing
Clear LED indication of relay status

Applications


Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications


CE certified
IP20 rating for terminals
IP30 rating for enclosure
IP50 rated for front panel
CE certified
IEC 61000-3-2
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-11
CISPR 14-1
