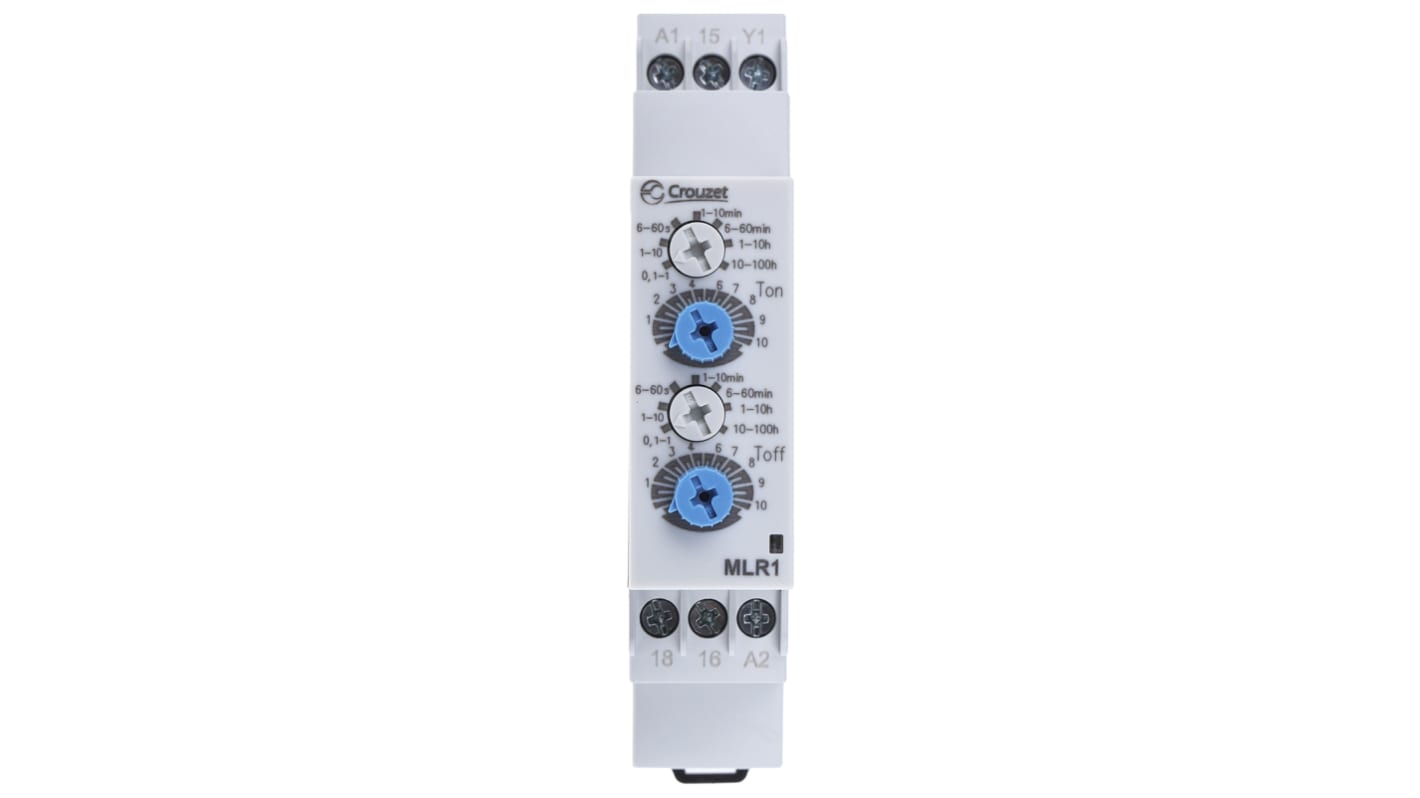

Crouzet DIN Rail Mount Timer Relay, 24 → 240 V ac, 24V dc, 1-Contact, 0.1 s → 100h, 1-Function, SPDT
- RS 제품 번호:
- 774-0323
- Distrelec 제품 번호:
- 137-53-670
- 제조사 부품 번호:
- 88827155
- 제조업체:
- Crouzet
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩148,050.00
재고있음
- 74 개 단위 배송 준비 완료
- 추가로 2025년 12월 09일 부터 25 개 단위 배송
- 추가로 2025년 12월 10일 부터 22 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩148,050.00 |
| 25 - 49 | ₩142,861.20 |
| 50 + | ₩137,540.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 774-0323
- Distrelec 제품 번호:
- 137-53-670
- 제조사 부품 번호:
- 88827155
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Supply Voltage | 24 → 240 V ac, 24V dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Asymmetrical | |
| Time Range | 0.1 s → 100h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Single | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 8A | |
| Switch Configuration | SPDT | |
| Terminal Type | Screw | |
| Width | 17.5mm | |
| Power Supply | External | |
| Minimum Current | 10mA | |
| Maximum Operating Temperature | +60°C | |
| Length | 90mm | |
| Depth | 60mm | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Silver Nickel | |
| Time Delay | 30ms | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Supply Voltage 24 → 240 V ac, 24V dc | ||
Mounting Type DIN Rail | ||
Mode of Operation Asymmetrical | ||
Time Range 0.1 s → 100h | ||
Number of Contacts 1 | ||
Number of Timer Functions Single | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 8A | ||
Switch Configuration SPDT | ||
Terminal Type Screw | ||
Width 17.5mm | ||
Power Supply External | ||
Minimum Current 10mA | ||
Maximum Operating Temperature +60°C | ||
Length 90mm | ||
Depth 60mm | ||
Minimum Operating Temperature -20°C | ||
Contact Material Silver Nickel | ||
Time Delay 30ms | ||
- COO (Country of Origin):
- ID
Crouzet Single-Function Timer Relay
The Crouzet single-function timer relay is a compact device with a solid-state output and an option of connecting an external power supply to the control input. It performs the function of providing asymmetrical delay ranging between 0.1 second and 100 hours.
Features and Benefits
Multiple timing ranging between 1 second to 10 seconds, 10 seconds to 1 minute, 1 minute to 10 minutes, 10 minutes to 1 hour, 1 hour to 10 hours, 10 hours to 100 hours
1 changeover relay output of 8A
SPDT contact configuration
Multi-voltage supply options ranging between 24VAC and 240VAC and 24VDC
Screw or spring terminals
LED status indicator (relay version)
Possibility of external load connection in parallel to the control input
3-wire PNP sensor compatible
1 changeover relay output of 8A
SPDT contact configuration
Multi-voltage supply options ranging between 24VAC and 240VAC and 24VDC
Screw or spring terminals
LED status indicator (relay version)
Possibility of external load connection in parallel to the control input
3-wire PNP sensor compatible
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP20 rated
IP40 rated
IP50 rated
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE certified
UL approved
cUL certified
CSA certified
GL certified
IP40 rated
IP50 rated
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE certified
UL approved
cUL certified
CSA certified
GL certified
