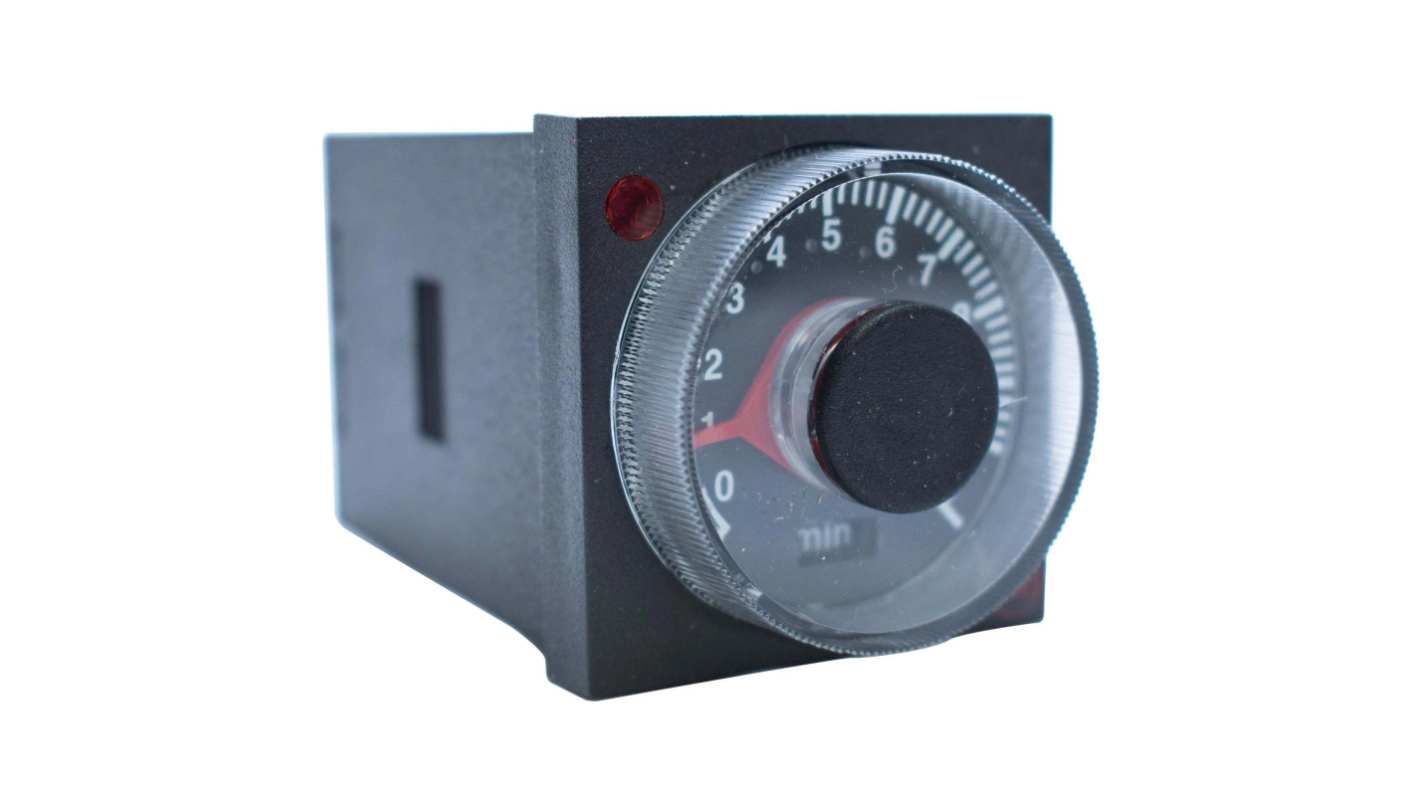

ATC 407C Series Multi-Timer, 1-Contact, 24 V dc 24V ac, 240 V ac, 1 min to 10 h, Multifunction-Function, SPDT Switch
- RS 제품 번호:
- 286-804
- 제조사 부품 번호:
- 407C100F3X
- 제조업체:
- ATC
Subtotal (1 unit)*
₩536,523.00
일시적 품절
- 2026년 6월 15일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩536,523.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 286-804
- 제조사 부품 번호:
- 407C100F3X
- 제조업체:
- ATC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ATC | |
| Product Type | Multi-Timer | |
| Time Range | 1 min to 10 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | SPDT | |
| Minimum Operating Temperature | -18°C | |
| Supply AC Voltage | 24, 240V ac | |
| Supply DC Voltage | 24 V dc | |
| Contact Current | 10A | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CE, RoHS, Crlus | |
| Series | 407C | |
| 모두 선택 | ||
|---|---|---|
브랜드 ATC | ||
Product Type Multi-Timer | ||
Time Range 1 min to 10 h | ||
Number of Contacts 1 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration SPDT | ||
Minimum Operating Temperature -18°C | ||
Supply AC Voltage 24, 240V ac | ||
Supply DC Voltage 24 V dc | ||
Contact Current 10A | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CE, RoHS, Crlus | ||
Series 407C | ||
The ATC DIN Multi-Mode Timer available with selectable OnDelay, Off-Delay or Interval timing modes. These timing modes energize a set of DPDT output contacts. When in the On-Delay mode, the 407 begins timing when the timer is energized.
Range and Mode select are tamper proof when panel mounted
Unique flashing cycle progress indication
