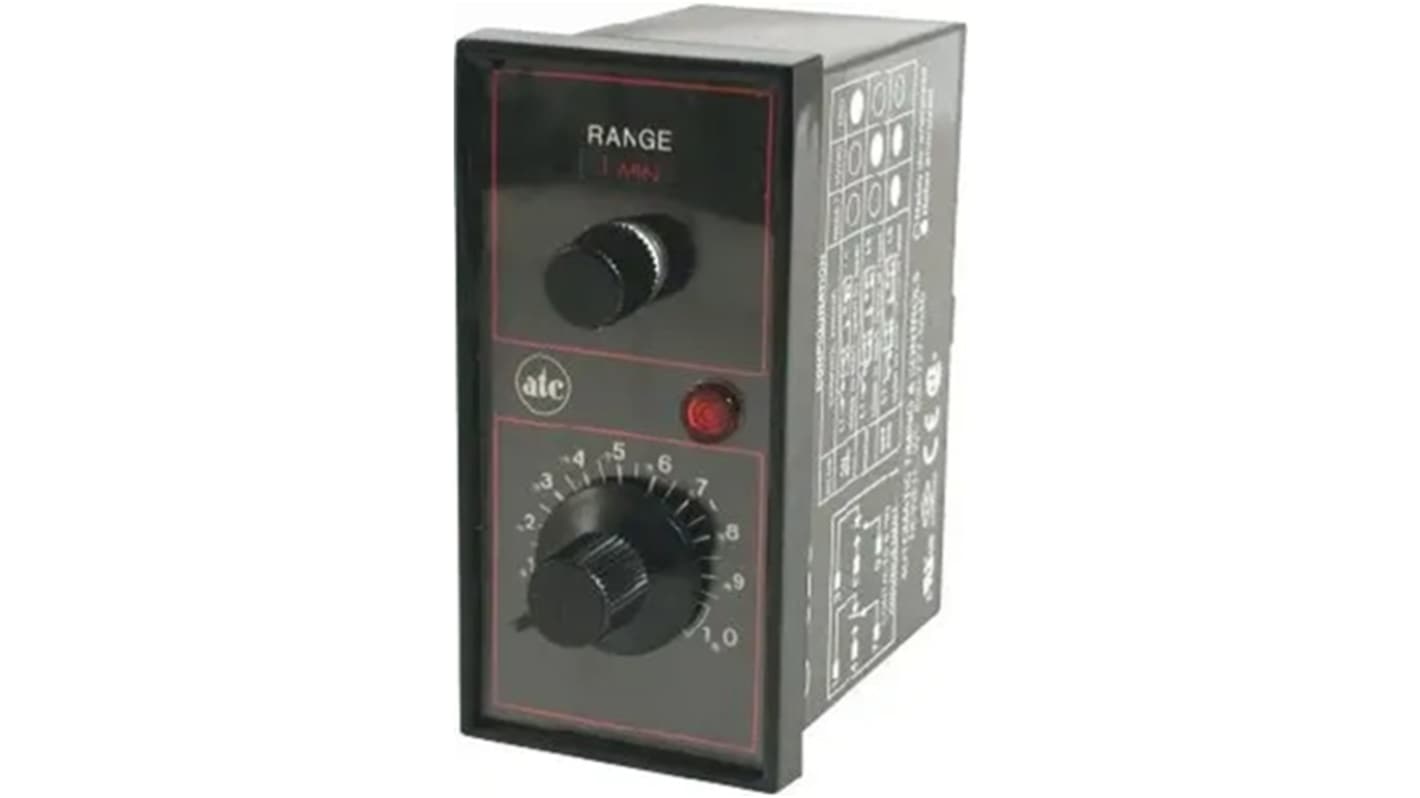

ATC 328E Series Surface Multi-Timer, 2-Contact, 24 V dc 24/240 V ac, 1 s to 10 h, Multifunction-Function, DPDT Switch
- RS 제품 번호:
- 286-789
- 제조사 부품 번호:
- 328E200F10XX
- 제조업체:
- ATC
Subtotal (1 unit)*
₩485,015.56
일시적 품절
- 2026년 3월 20일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩485,015.56 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 286-789
- 제조사 부품 번호:
- 328E200F10XX
- 제조업체:
- ATC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ATC | |
| Product Type | Multi-Timer | |
| Function | Multifunction | |
| Mount Type | Surface | |
| Time Range | 1 s to 10 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | DPDT | |
| Supply AC Voltage | 24/240 V ac | |
| Supply DC Voltage | 24 V dc | |
| Minimum Operating Temperature | -18°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 4.78mm | |
| Width | 1.89 mm | |
| Length | 3.78mm | |
| Standards/Approvals | RoHS | |
| Series | 328E | |
| 모두 선택 | ||
|---|---|---|
브랜드 ATC | ||
Product Type Multi-Timer | ||
Function Multifunction | ||
Mount Type Surface | ||
Time Range 1 s to 10 h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration DPDT | ||
Supply AC Voltage 24/240 V ac | ||
Supply DC Voltage 24 V dc | ||
Minimum Operating Temperature -18°C | ||
Maximum Operating Temperature 60°C | ||
Height 4.78mm | ||
Width 1.89 mm | ||
Length 3.78mm | ||
Standards/Approvals RoHS | ||
Series 328E | ||
The ATC Versatile dial adjustable time delay relay offering ON-delay, OFF-delay, or interval operation with timing periods ranging from 50 mSEC to 10 hours. Featuring a unique digital circuit and cycle progress annunciation, it is ideal for demanding industrial applications.
ON delay 100 mSEC max
OFF delay 50 mSEC max
Interval of 100 mSEC max
