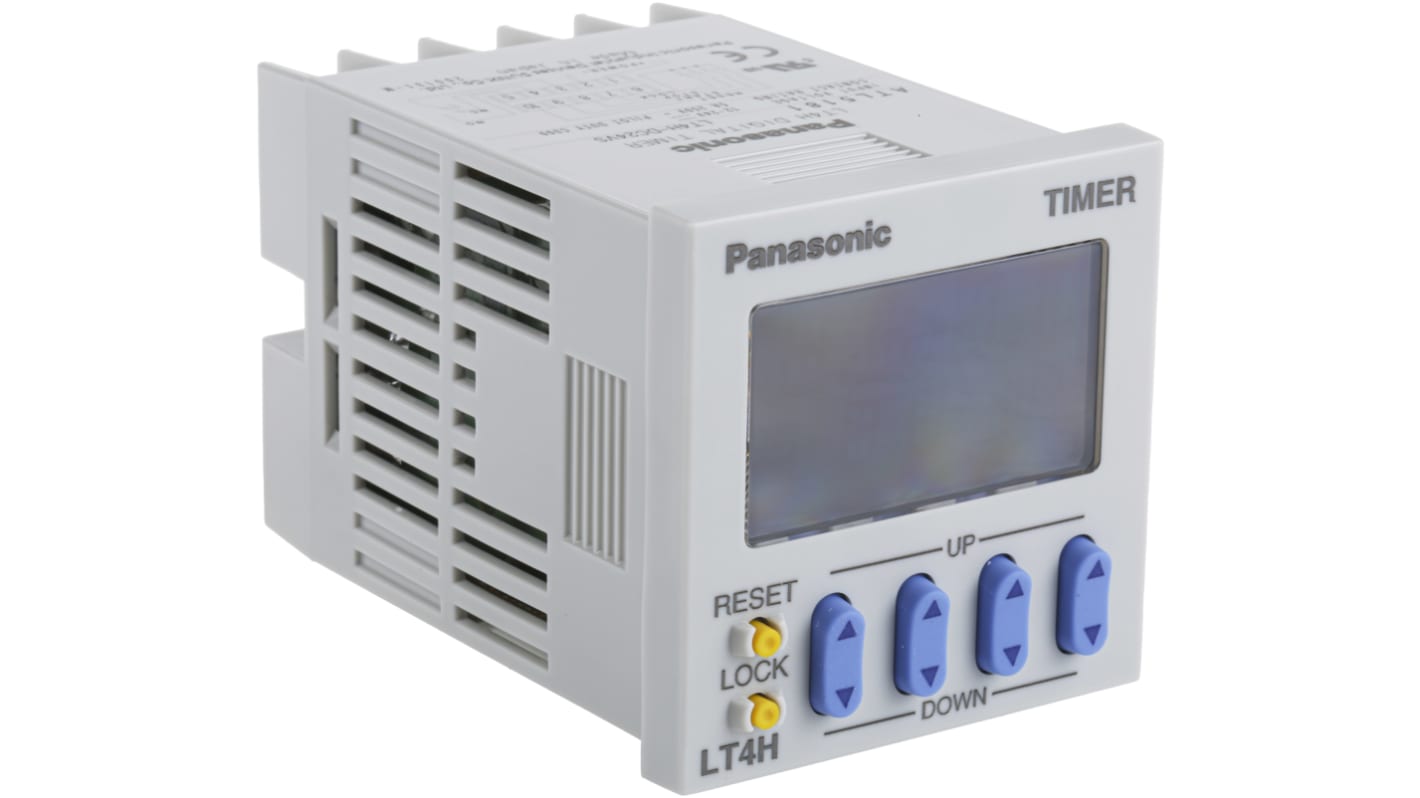

Panasonic LT4H Series Panel Mount Timer Relay, 12 → 24V dc, 0 → 9999 h, 0 → 9999 min, 0 →
- RS 제품 번호:
- 228-835
- 제조사 부품 번호:
- LT4H24SJ
- 제조업체:
- Panasonic
현재 액세스할 수 없는 재고 정보
- RS 제품 번호:
- 228-835
- 제조사 부품 번호:
- LT4H24SJ
- 제조업체:
- Panasonic
사양
참조 문서
제정법과 컴플라이언스
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Panasonic | |
| Supply Voltage | 12 → 24V dc | |
| Mounting Type | Panel Mount | |
| Mode of Operation | Power ON Delay, Pulse ON Delay, Pulse One Shot, Signal Flicker, Signal OFF Delay, Signal ON Delay, Totalising ON Delay | |
| Time Range | 0 → 9999 h, 0 → 9999 min, 0 → 9999s | |
| Number of Timer Functions | Multi Function | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 250V ac | |
| Terminal Type | Screw | |
| Power Supply | External | |
| Width | 48mm | |
| Length | 48mm | |
| Series | LT4H | |
| Maximum Operating Temperature | +55°C | |
| Depth | 70mm | |
| Time Delay | 20ms | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -10°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Panasonic | ||
Supply Voltage 12 → 24V dc | ||
Mounting Type Panel Mount | ||
Mode of Operation Power ON Delay, Pulse ON Delay, Pulse One Shot, Signal Flicker, Signal OFF Delay, Signal ON Delay, Totalising ON Delay | ||
Time Range 0 → 9999 h, 0 → 9999 min, 0 → 9999s | ||
Number of Timer Functions Multi Function | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 250V ac | ||
Terminal Type Screw | ||
Power Supply External | ||
Width 48mm | ||
Length 48mm | ||
Series LT4H | ||
Maximum Operating Temperature +55°C | ||
Depth 70mm | ||
Time Delay 20ms | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- JP
