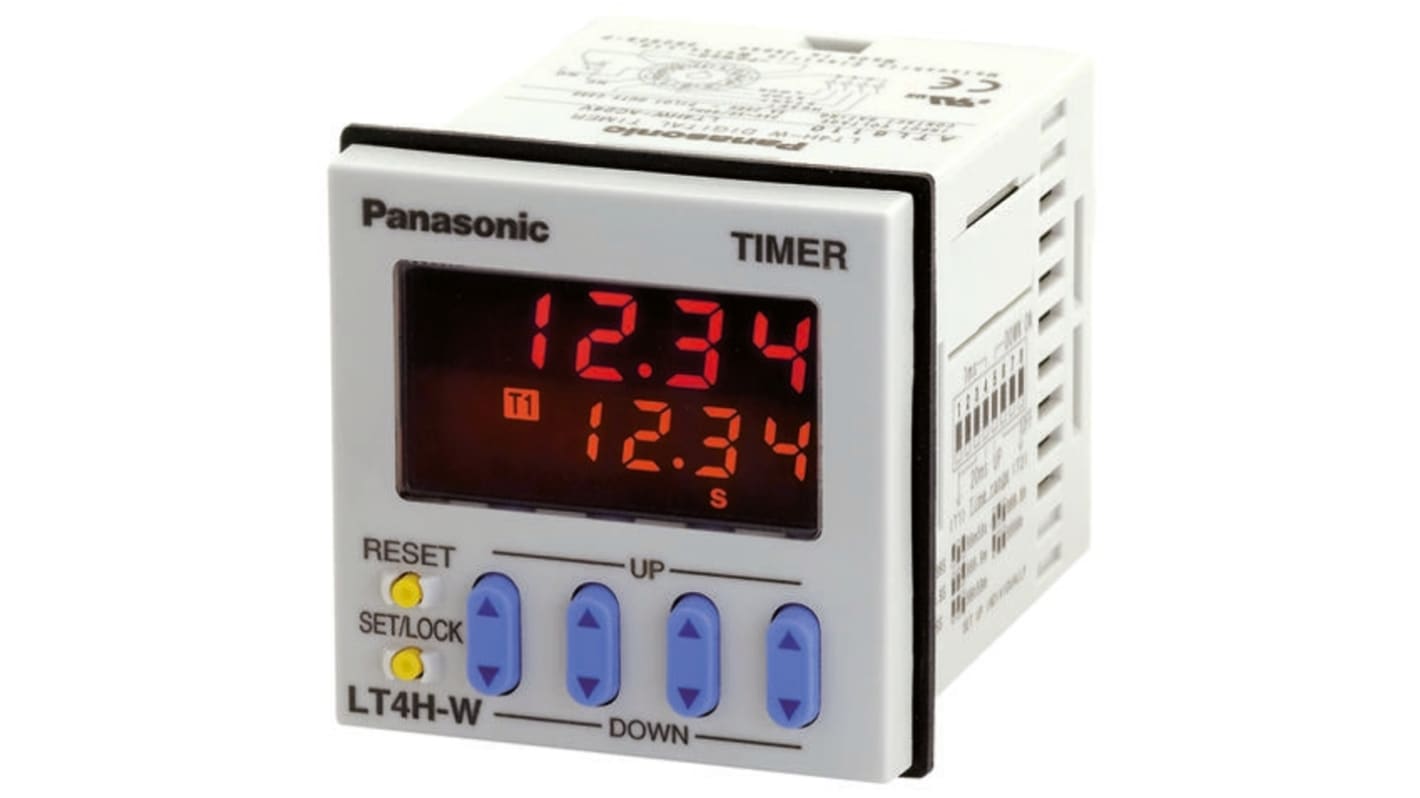

Panasonic LT4H-W Series Panel Timer Relay, 1-Contact 24 V ac, 0 to 9999 h, Multifunction-Function, SPDT Switch
- RS 제품 번호:
- 228-734
- 제조사 부품 번호:
- LT4HW24ACSJ
- 제조업체:
- Panasonic
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 228-734
- 제조사 부품 번호:
- LT4HW24ACSJ
- 제조업체:
- Panasonic
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Panasonic | |
| Product Type | Timer Relay | |
| Mount Type | Panel | |
| Function | Multifunction | |
| Time Range | 0 to 9999 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | SPDT | |
| IP Rating | IP66 | |
| Timing Adjustment | Thumbwheel Switch | |
| Supply AC Voltage | 24 V ac | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | Screw | |
| Standards/Approvals | IEC | |
| Height | 48mm | |
| Length | 48mm | |
| Width | 48 mm | |
| Series | LT4H-W | |
| 모두 선택 | ||
|---|---|---|
브랜드 Panasonic | ||
Product Type Timer Relay | ||
Mount Type Panel | ||
Function Multifunction | ||
Time Range 0 to 9999 h | ||
Number of Contacts 1 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration SPDT | ||
IP Rating IP66 | ||
Timing Adjustment Thumbwheel Switch | ||
Supply AC Voltage 24 V ac | ||
Contact Current 5A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Terminal Type Screw | ||
Standards/Approvals IEC | ||
Height 48mm | ||
Length 48mm | ||
Width 48 mm | ||
Series LT4H-W | ||
- COO (Country of Origin):
- JP
Multi-function timer relay, LT4HW
Backlit two-tone LCD display
Timer is simple to program and easily integrated into standardised sections
Complies with all necessary European standards
Function selection via DIP switch
Output signal emitted after two time periods
Protection rating IP66
Functions:
— Delayed pulse expansion
— OFF-Start changeover
— ON-Start changeover
— Delayed pulse expansion
— OFF-Start changeover
— ON-Start changeover
Integrating input:
— Delayed pulse expansion
— OFF-Start changeover
— ON-Start changeover
— Delayed pulse expansion
— OFF-Start changeover
— ON-Start changeover
