Megger Time Domain Reflectometer, USB Interface 2 ns
- RS 제품 번호:
- 812-8929
- 제조사 부품 번호:
- 1007-063
- 제조업체:
- Megger
Subtotal (1 unit)*
₩8,547,162.00
재고있음
- 추가로 2026년 4월 27일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩8,547,162.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 812-8929
- 제조사 부품 번호:
- 1007-063
- 제조업체:
- Megger
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Megger | |
| Accuracy | ±1 % | |
| Product Type | Time Domain Reflectometer | |
| Resolution | 1 % | |
| Maximum Pulse Width | 2 ns | |
| Velocity Factor/Propagation Velocity | 0.99 | |
| Interface Type | USB | |
| Battery Life | 12h | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 50°C | |
| Battery Type | Lithium-ion | |
| Standards/Approvals | No | |
| Width | 55 mm | |
| Display Type | LCD | |
| Weight | 1.7kg | |
| Length | 290mm | |
| Height | 190mm | |
| Power Source | Battery | |
| 모두 선택 | ||
|---|---|---|
브랜드 Megger | ||
Accuracy ±1 % | ||
Product Type Time Domain Reflectometer | ||
Resolution 1 % | ||
Maximum Pulse Width 2 ns | ||
Velocity Factor/Propagation Velocity 0.99 | ||
Interface Type USB | ||
Battery Life 12h | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 50°C | ||
Battery Type Lithium-ion | ||
Standards/Approvals No | ||
Width 55 mm | ||
Display Type LCD | ||
Weight 1.7kg | ||
Length 290mm | ||
Height 190mm | ||
Power Source Battery | ||
- COO (Country of Origin):
- GB

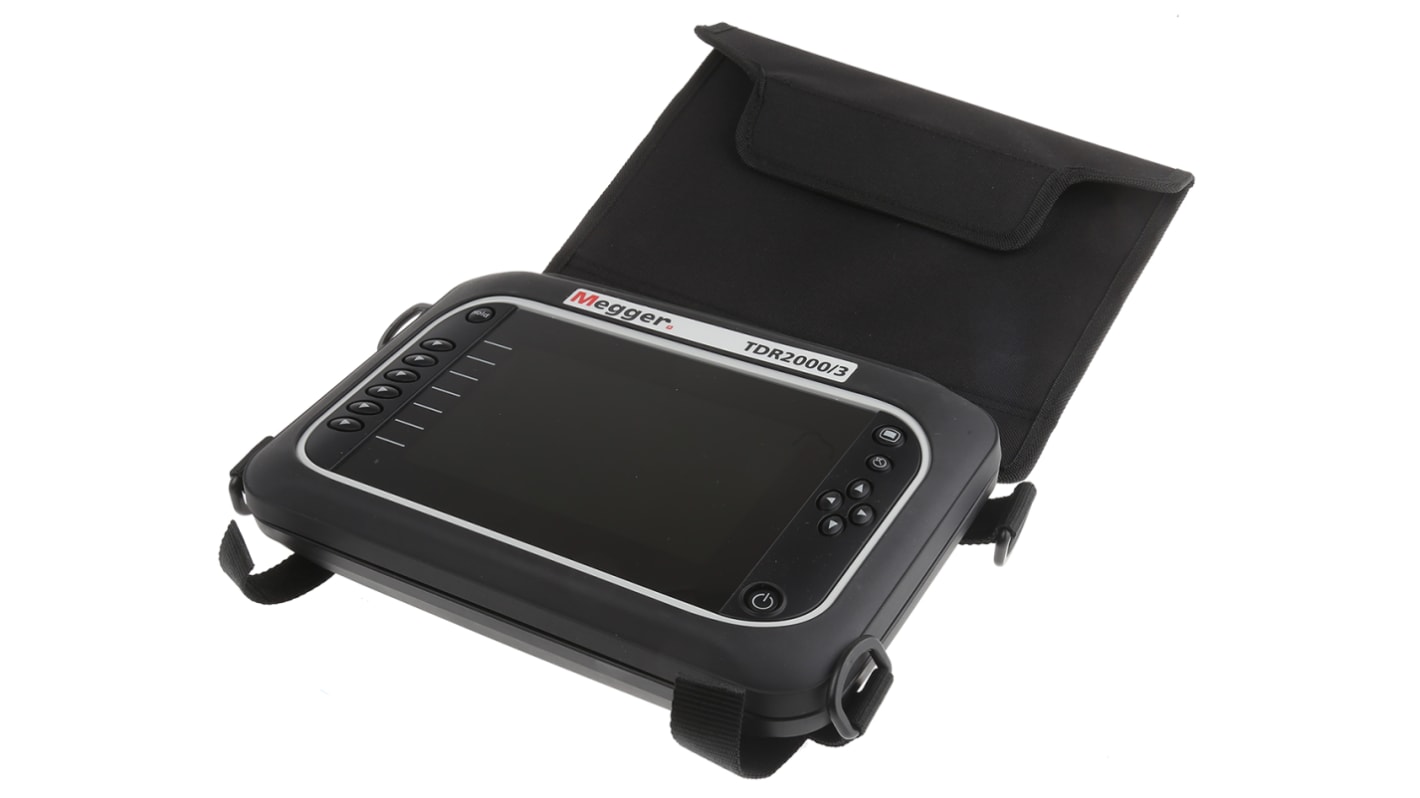

TDR2000/3 Advanced Dual Channel TDR (EU Version)
The Megger TDR2000/3 time-domain reflectometer is the ideal choice for electrical contractors needing a fast and dependable tool for locating cable faults in street lighting installations, street-level power distribution circuits and similar low-voltage applications.
Suitable for use with all types of paired metallic cables
Backlit graphics colour LCD (800x480)
Adjustable display contrast
Ranges: Up to 20000m with a minimum resolution of 0.1m
Trace Xpert guide to potential fault location
100 trace on board memory
USB connection to PC allowing upload and download of traces
"TraceXpert" PC software analysis tool
For use on Telecom TNV-3 circuit, or 150V CAT IV power circuits
Power blocking filter built-in
Selectable output impedance (25, 50, 75,100 and 125Ω)
2ns pulse for near end fault location
AUTO option selecting gain and pulse for each range
AUTO option matches output impedance to cable
Display distance in metres or feet
Li-ion rechargeable battery (12 hours typical life)
Environmental protection to IP54
Supplied with
Download Kit, Dual mini-clamp test leads, Carry Case.
