- RS 제품 번호:
- 623-5634
- 제조업체:
- POP
일시 품절-다음 입고 날짜는 08/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 100 백 1개
₩71,545.402
| Bag(s) | Per Bag | 한팩당* |
| 1 + | ₩71,545.402 | ₩715.834 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 623-5634
- 제조업체:
- POP
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

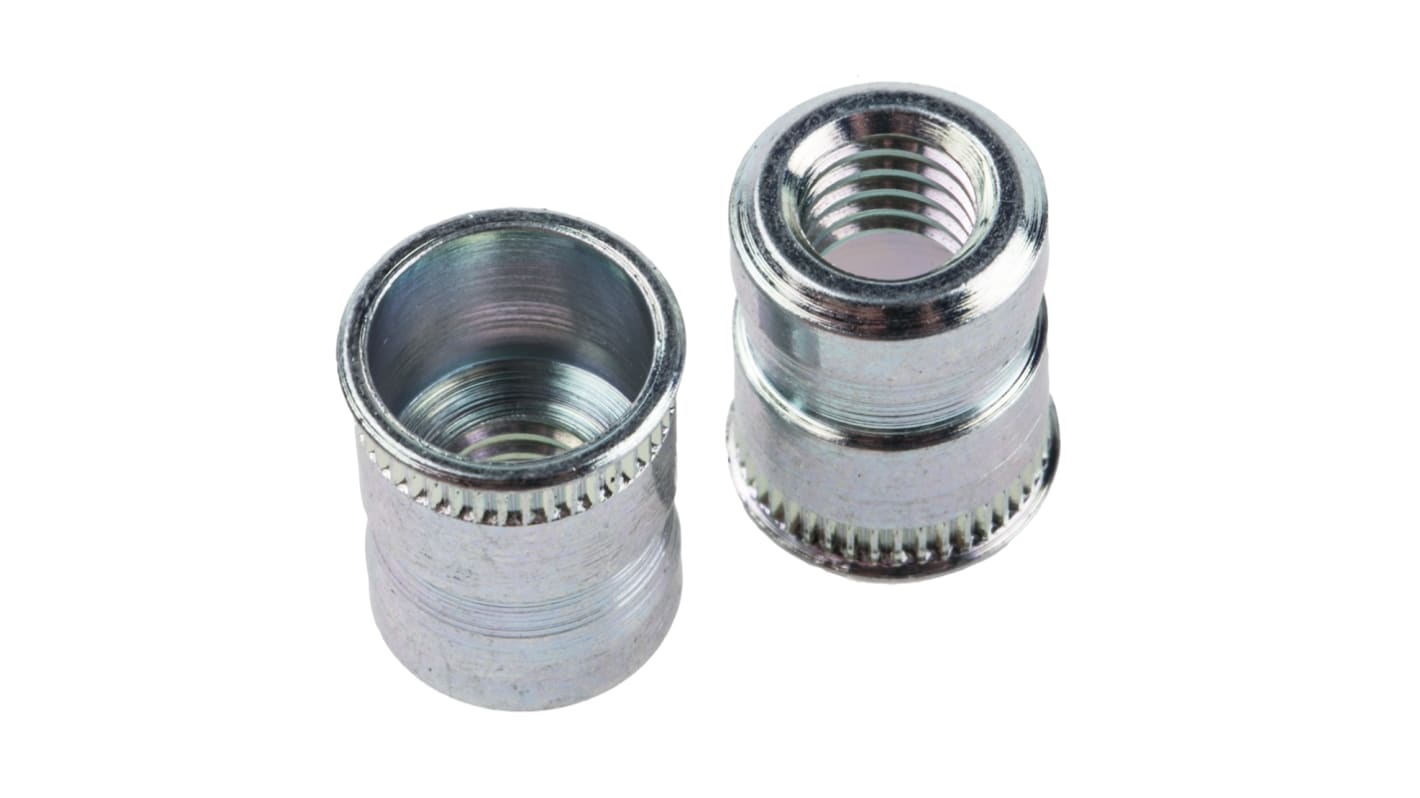

Standard Threaded Inserts
Manufactured from steel, zinc & clear passivated
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
May be set with Stock No. 487-151 and the tool contained in Threaded Insert Kit, Stock No. 623-5549
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
May be set with Stock No. 487-151 and the tool contained in Threaded Insert Kit, Stock No. 623-5549
Clinchnuts & Thread Inserts
사양
속성 | 값 |
|---|---|
| Thread Size | M6 |
| Flange Diameter | 10.16mm |
| Body Outside Diameter | 10.16mm |
| Body Depth | 13.08mm |
| Material | Steel |
| Finish | Clear Passivated, Galvanised |
