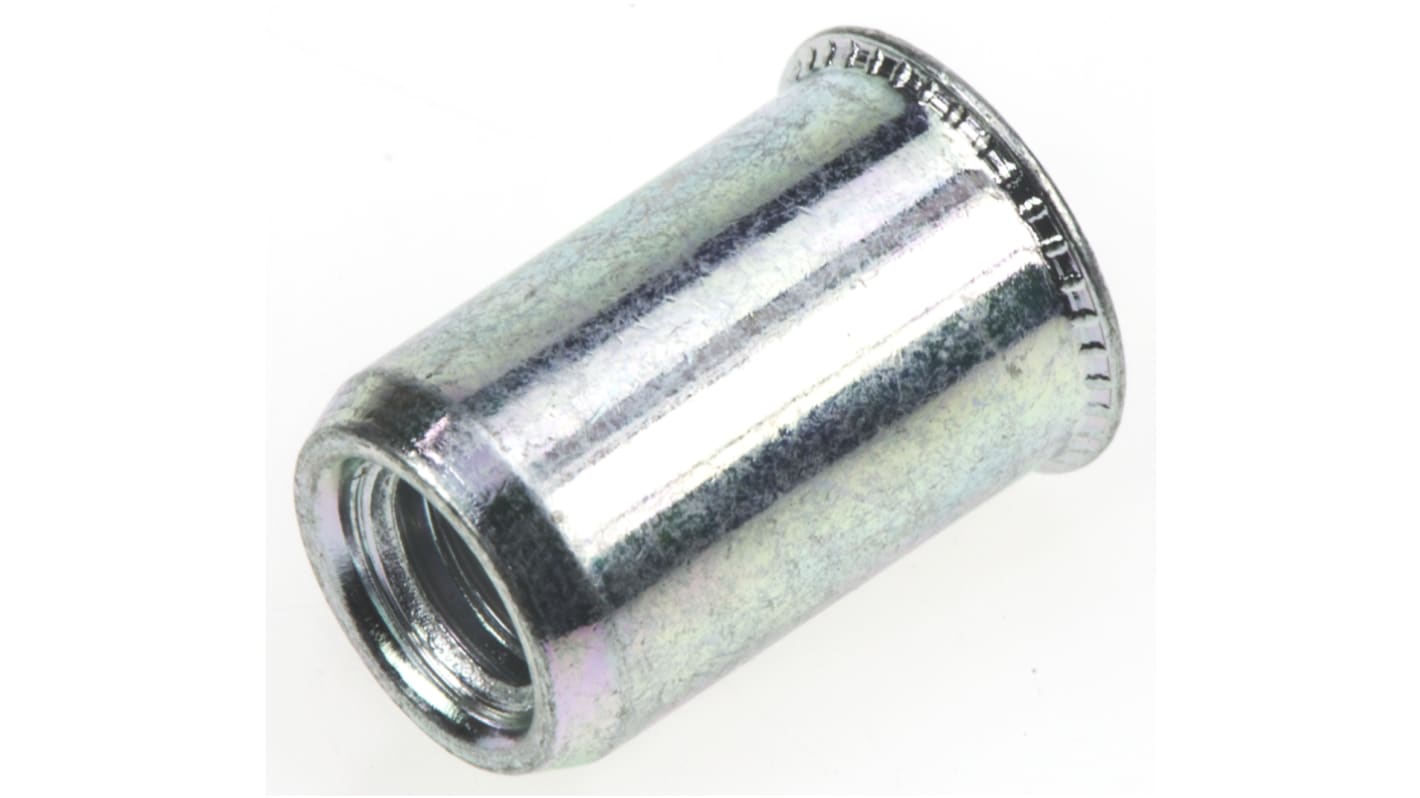

POP Galvanised, M6 Steel Threaded Insert, 10.5mm diameter 9.6mm Depth 14.8mm
- RS 제품 번호:
- 623-5511
- 제조업체:
- POP
모든 Threaded Inserts 열람하기
30 <재고있음> 5-9영업일내 홍콩 발송
단가 1 Bag of 100
Was ₩36,025.50
귀하의 지불
₩28,820.75
| Bag(s) | Per Bag | 한팩당* |
| 1 + | ₩28,820.75 | ₩288.75 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 623-5511
- 제조업체:
- POP
- COO (Country of Origin):
- TW
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항
Thin Sheet Threaded Inserts
Reduced head, open end threaded insert available in zinc plated & clear passivated steel and stainless steel
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
A4 Grade Stainless Steel products
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
A4 Grade Stainless Steel products
Clinchnuts & Thread Inserts
사양
| 속성 | 값 |
| Thread Size | M6 |
| Flange Diameter | 10.5mm |
| Fixing Hole Diameter | 9.6mm |
| Body Outside Diameter | 9.5mm |
| Body Depth | 14.8mm |
| Material | Steel |
| Finish | Galvanised |
| Thickness of Material Maximum | 2.5mm |
| Thickness of Material Minimum | 0.8mm |
