POP Galvanised, M4 Steel Threaded Insert, 7mm diameter 6.4mm Depth 10.4mm
- RS 제품 번호:
- 623-5505
- 제조업체:
- POP
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
모든 Threaded Inserts 열람하기
현재 시스템 에러로 재고 수량 확인이 불가합니다. krenquiry@rs-components.com 에 문의하시거나 잠시후에 다시 시도해주시기 바랍니다.
단가 1 Bag of 100
Was ₩33,276.25
귀하의 지불
₩12,687.50
| Bag(s) | Per Bag | 한팩당* |
| 1 + | ₩12,687.50 | ₩126.00 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 623-5505
- 제조업체:
- POP
- COO (Country of Origin):
- TW
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

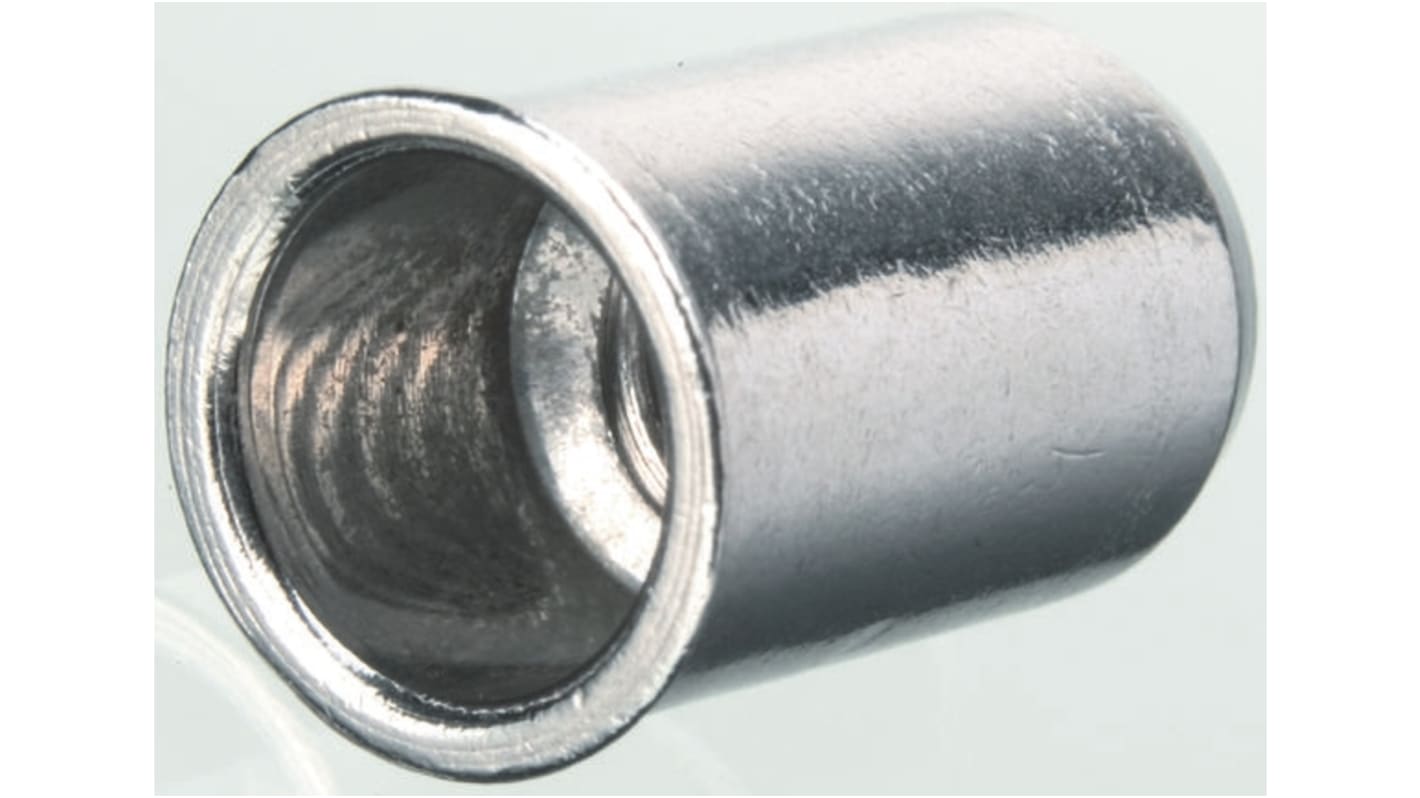

Thin Sheet Threaded Inserts
Reduced head, open end threaded insert available in zinc plated & clear passivated steel and stainless steel
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
A4 Grade Stainless Steel products
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
A4 Grade Stainless Steel products
Clinchnuts & Thread Inserts
사양
| 속성 | 값 |
| Thread Size | M4 |
| Flange Diameter | 7mm |
| Fixing Hole Diameter | 6.4mm |
| Body Outside Diameter | 6.3mm |
| Body Depth | 10.4mm |
| Material | Steel |
| Finish | Galvanised |
| Thickness of Material Maximum | 1.5mm |
| Thickness of Material Minimum | 0.5mm |
