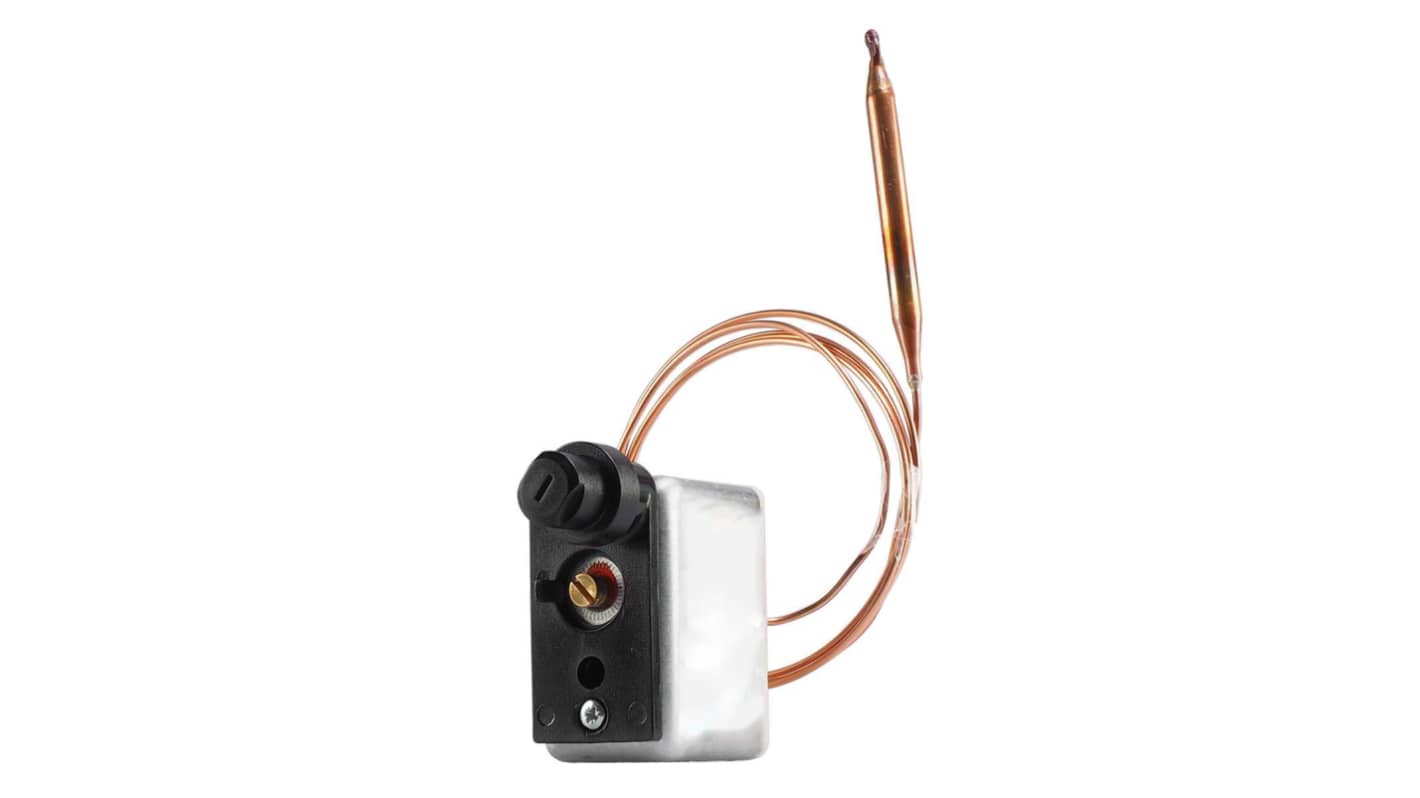

Jumo Capillary Thermostat, 95°C Max, Automatic Reset, Panel Mount

The Jumo 1 pole mechanical panel mounting thermostat is very robust due to its zinc-plated sheet steel case and can also be used in rough conditions. It operates according to the fluid expansion principle and can be used up to a maximum permissible probe temperature of 110°C without any problems. The safety temperature limiter is characterized by a high switching point accuracy of +0/-5 K. A decisive advantage is that no additional auxiliary energy is necessary for temperature measurement. The electrical connection is made at the tab connectors (A 6.3 x 0.8 DIN 46244) of the switching unit, which can directly switch a maximum permissible switching capacity of AC 230 V/16. The temperature limiter is very flexible and is used in heating, air conditioning and ventilation technology as well as in the plastics industry, apparatus and furnace construction and for temperature monitoring in laboratories and climatic chambers.

Approved according to DIN EN 14597 UL and EAC
Unlocking differential of approx. 10 K
Capillary of the thermostat is also made of copper and can be laid flexibly with a bending radius of 5 mm
Smooth round sensor made of copper has a diameter of 6 mm with a probe length of approx. 84 mm
