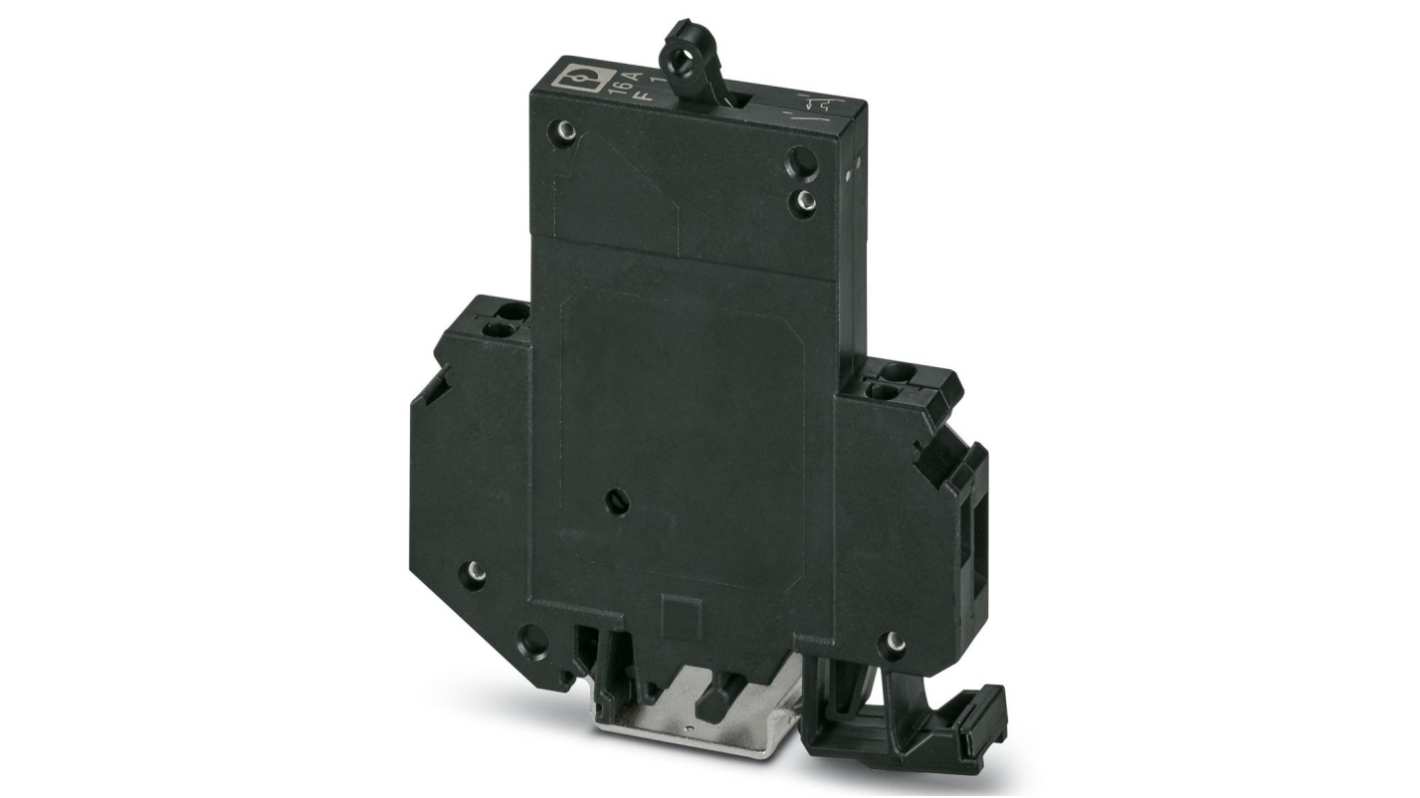

Phoenix Contact TMC 1 Thermal Circuit Breaker - 1-Pole, Base, 16A Current Rating, 300V ac, 65 V dc
- RS 제품 번호:
- 801-7003
- 제조사 부품 번호:
- 0914183
- 제조업체:
- Phoenix Contact
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 801-7003
- 제조사 부품 번호:
- 0914183
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Current Rating | 16A | |
| Product Type | Thermal Circuit Breaker | |
| Number of Poles | 1 | |
| Series | TMC 1 | |
| Width | 12.5mm | |
| Mount Type | Base | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Push Button | |
| Tripping Characteristics | Type S | |
| Height | 82.5mm | |
| Standards/Approvals | RoHS, CE | |
| Depth | 96mm | |
| Rated AC Voltage | 300V ac | |
| Break Time | Medium | |
| Rated DC Voltage | 65V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Current Rating 16A | ||
Product Type Thermal Circuit Breaker | ||
Number of Poles 1 | ||
Series TMC 1 | ||
Width 12.5mm | ||
Mount Type Base | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Push Button | ||
Tripping Characteristics Type S | ||
Height 82.5mm | ||
Standards/Approvals RoHS, CE | ||
Depth 96mm | ||
Rated AC Voltage 300V ac | ||
Break Time Medium | ||
Rated DC Voltage 65V dc | ||
- COO (Country of Origin):
- DE
TMC 1 F1 100 16,0A has a M3 screw thread for screw connection and 4 connections.
Phoenix Contact Thermomagnetic Circuit Breaker - F1
The DIN rail mounting, single pole, TMC range of thermomagnetic circuit breakers from Phoenix Contact have SFB tripping characteristics that give a maximum overcurrent protection over long cable paths.
Features and Benefits
• DIN rail mounting
• Trip faster than thermal device circuit breakers
• Only 12.5 mm wide
• Current rating 2 A to 16 A available
• Push in or screw connection available
• Integrated remote signalling
• Universal foot for mounting on NS 32 or NS 35
Typical Applications
TMC thermomagnetic circuit breakers are mostly used in process control, information and communication technology because of the different tripping characteristics.
The circuit breakers are a great solution for protecting valves, motors, logic controllers and frequency inverters.
Phoenix Contact Circuit Breakers
