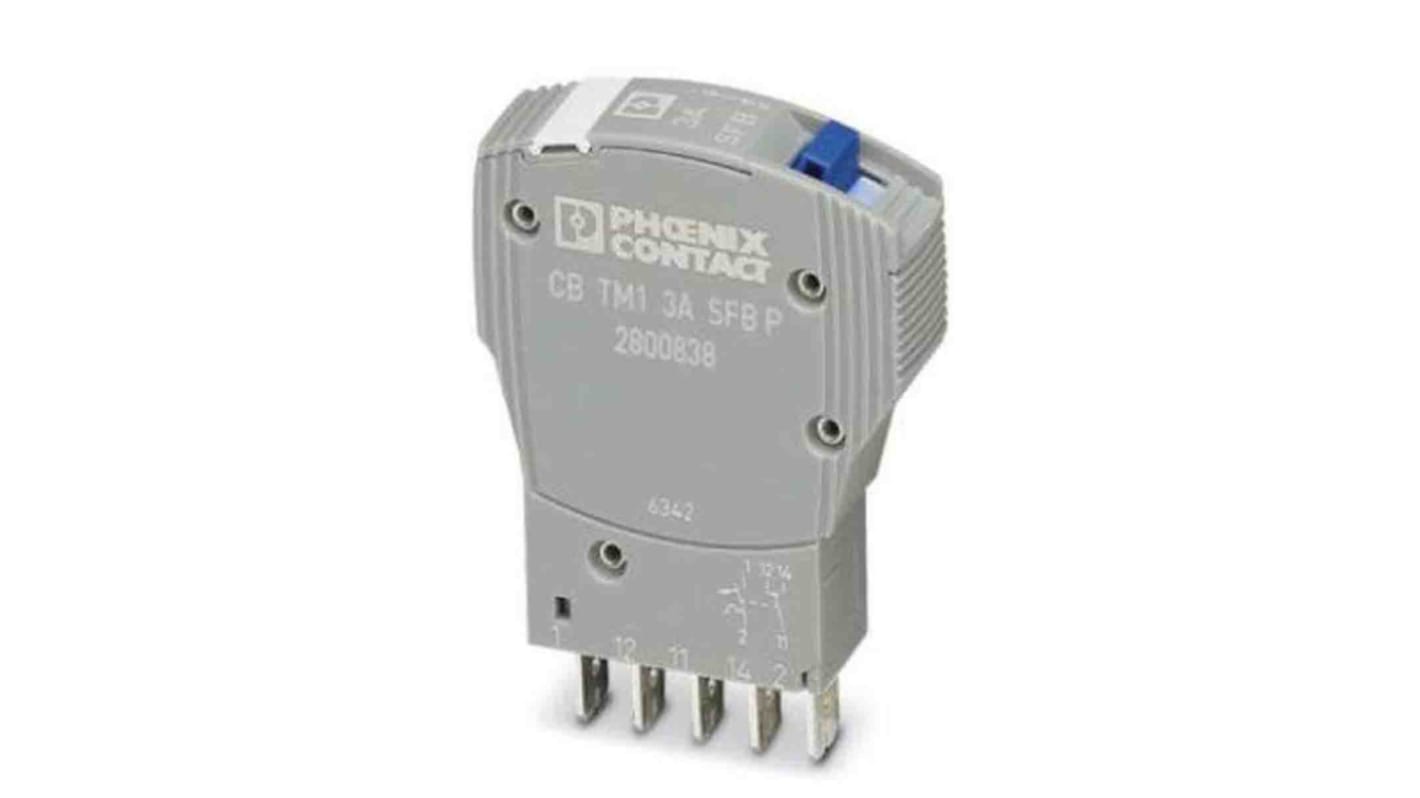

Phoenix Contact TRABTECH TRABTECH Thermal Circuit Breaker - 1-Pole, Snap-On, 3 A Current Rating, 1 kA, 277 V ac, 50 V dc
- RS 제품 번호:
- 201-6242
- 제조사 부품 번호:
- 2800838
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩70,011.20
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩70,011.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 201-6242
- 제조사 부품 번호:
- 2800838
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Current Rating | 3 A | |
| Product Type | Thermal Circuit Breaker | |
| Range | TRABTECH | |
| Series | TRABTECH | |
| Number of Poles | 1 | |
| Width | 12.3 mm | |
| Mount Type | Snap-On | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Type S | |
| Standards/Approvals | DNV GL, cUL, EN, CSA, UL | |
| Depth | 52mm | |
| Height | 45mm | |
| Rated AC Voltage | 277 V ac | |
| Breaking Capacity | 1kA | |
| Rated DC Voltage | 50 V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Current Rating 3 A | ||
Product Type Thermal Circuit Breaker | ||
Range TRABTECH | ||
Series TRABTECH | ||
Number of Poles 1 | ||
Width 12.3 mm | ||
Mount Type Snap-On | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Type S | ||
Standards/Approvals DNV GL, cUL, EN, CSA, UL | ||
Depth 52mm | ||
Height 45mm | ||
Rated AC Voltage 277 V ac | ||
Breaking Capacity 1kA | ||
Rated DC Voltage 50 V dc | ||
- COO (Country of Origin):
- ID
The Phoenix thermomagnetic device circuit breaker featured with modular expansion with help of uniform, plug-in housing concept. It has sophisticated remote signalling concept enables monitoring from any location.
Maximum overcurrent protection
Ambient temperature -30 °C to 60 °C
Degree of protection IP30
Degree of pollution 2
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
