Staubli Yellow, Female Test Connector Adapter With Copper contacts and Gold Plated
- RS 제품 번호:
- 409-4526
- 제조사 부품 번호:
- 15.0010
- 제조업체:
- Staubli
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩31,960.00
제한된 재고
- 288 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩31,960.00 |
| 25 + | ₩30,963.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 409-4526
- 제조사 부품 번호:
- 15.0010
- 제조업체:
- Staubli
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Staubli | |
| Colour | Yellow | |
| Contact Material | Copper | |
| Contact Plating | Gold | |
| Gender | Female | |
| 모두 선택 | ||
|---|---|---|
브랜드 Staubli | ||
Colour Yellow | ||
Contact Material Copper | ||
Contact Plating Gold | ||
Gender Female | ||
- COO (Country of Origin):
- DE

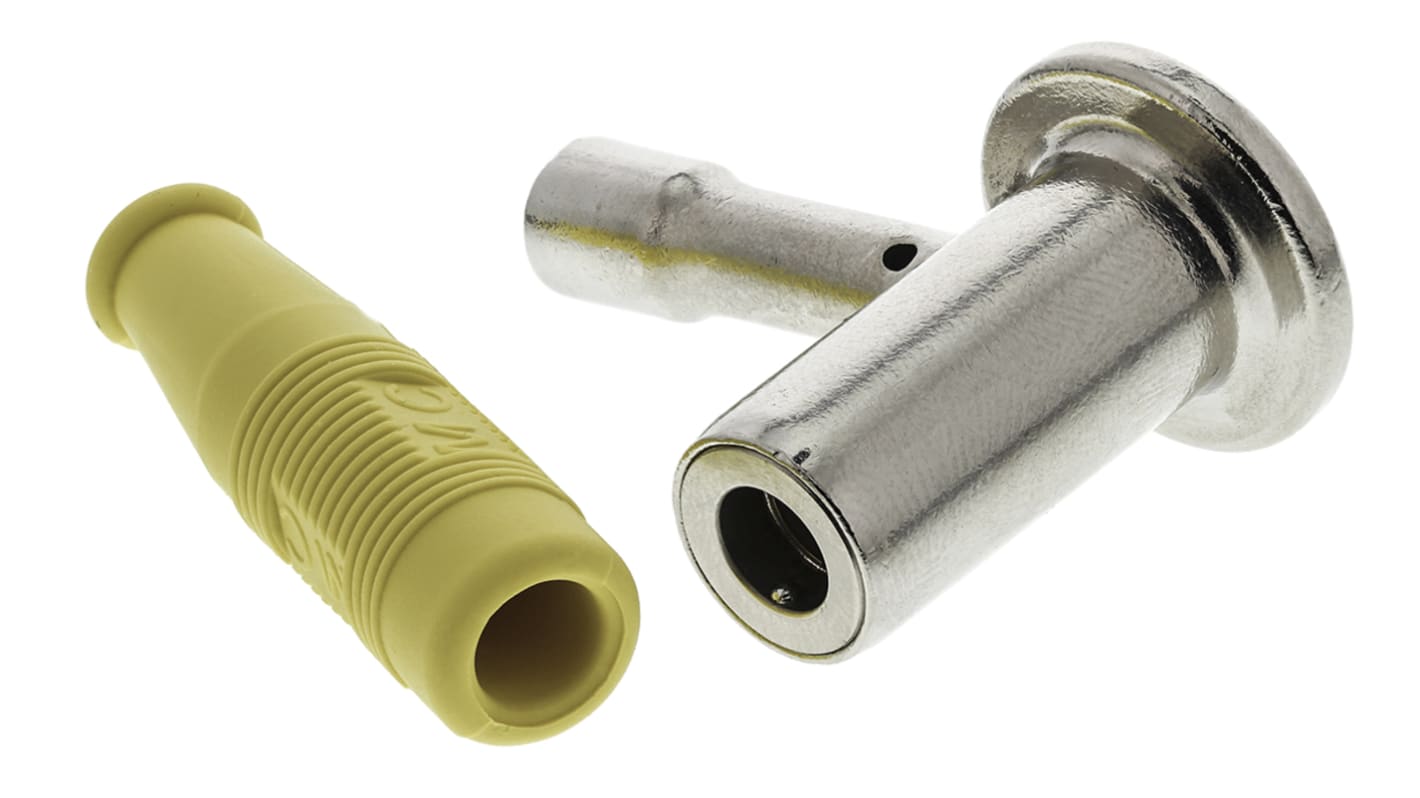

MC® equipotential bonding angled jack
in accordance with DIN42801, with special trigger safety (TÜV tested)
Jack body made from brass, galvanised
Copper crimp line connection for 4 mm² and 6 mm² highly flexible line
anti-kink sleeving made from yellow TPE
Jack body made from brass, galvanised
Copper crimp line connection for 4 mm² and 6 mm² highly flexible line
anti-kink sleeving made from yellow TPE
Equipotential bonding connector
The additional equipotential bonding has the task of balancing out the potentials of different metal parts that can be touched at the same time or reducing potential differences that can arise between body, electro-medical devices and external conductive parts. Thanks to the special contours on the MC® connector, the connection is secured against being disconnected accidentally during proper use and the line can be protected against short circuit without using a tool.
