Baumer FlexTop 2202 Temperature Transmitter PT100 Input 35V, 85 °C, -40 °C
- RS 제품 번호:
- 921-3145
- 제조사 부품 번호:
- 2202-0001.C/8094
- 제조업체:
- Baumer
Subtotal (1 unit)*
₩127,861.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩127,861.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 921-3145
- 제조사 부품 번호:
- 2202-0001.C/8094
- 제조업체:
- Baumer
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Baumer | |
| Product Type | Temperature Transmitter | |
| Input Type | PT100 | |
| Output Type | 4 to 20 mA | |
| Diameter | 44mm | |
| Minimum Temperature Input | -200°C | |
| Maximum Temperature Input | 850°C | |
| Series | FlexTop 2202 | |
| Depth | 19mm | |
| Maximum Supply Voltage | 35V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | ATEX, Ex ia IIC T5/T6 | |
| Standards/Approvals | EN 61326, IEC/DIN/EN 60 751-2, EN 61000-6-3, EN 61000-6-2, NAMUR NE21 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Baumer | ||
Product Type Temperature Transmitter | ||
Input Type PT100 | ||
Output Type 4 to 20 mA | ||
Diameter 44mm | ||
Minimum Temperature Input -200°C | ||
Maximum Temperature Input 850°C | ||
Series FlexTop 2202 | ||
Depth 19mm | ||
Maximum Supply Voltage 35V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification ATEX, Ex ia IIC T5/T6 | ||
Standards/Approvals EN 61326, IEC/DIN/EN 60 751-2, EN 61000-6-3, EN 61000-6-2, NAMUR NE21 | ||
- COO (Country of Origin):
- DK

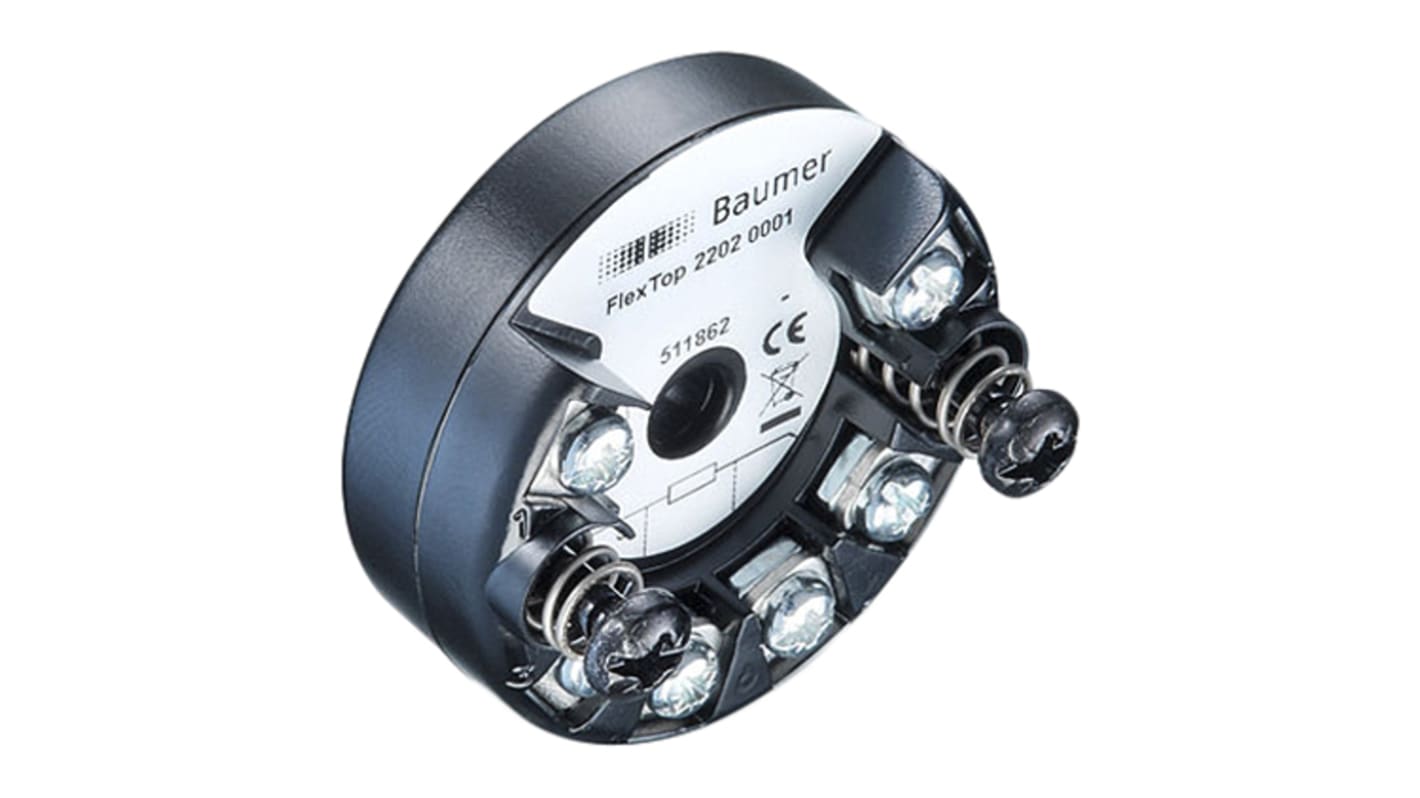

FlexTop 2202 Temperature Transmitter
Professional range of Baumer temperature transmitters from the FlexTop 2202 series. The transmitters are 4-20 mA loop powered transmitters designed for Pt100 sensors. 2, 3 or 4 wire sensors can be used. The temperature transmitters are resistant to humid environments due to them being embedded in silicone.
Sensor offset correction
Sensor error detection
2-way configuration
