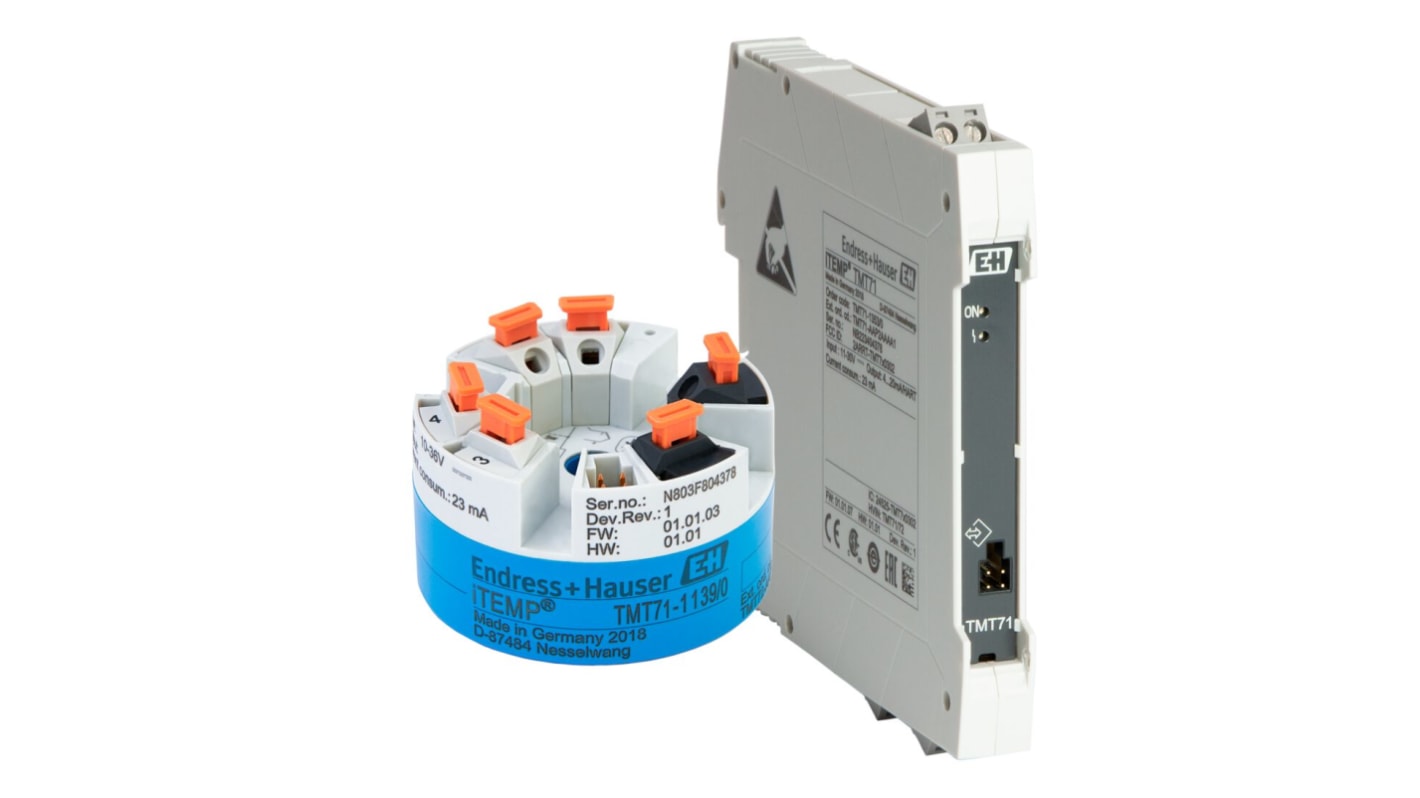

Endress+Hauser iTEMP TMT71 Temperature Transmitter mV, Ohm, RTD, TC Input, 10 → 36 V dc
- RS 제품 번호:
- 287-1867
- 제조사 부품 번호:
- TMT71-AAA1AAAA1
- 제조업체:
- Endress+Hauser
Subtotal (1 unit)*
₩429,858.24
일시적 품절
- 2025년 12월 30일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩429,858.24 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 287-1867
- 제조사 부품 번호:
- TMT71-AAA1AAAA1
- 제조업체:
- Endress+Hauser
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Endress+Hauser | |
| Input Type | mV, Ohm, RTD, TC | |
| Output Type | Analog 4 → 20 mA | |
| Supply Voltage | 10 → 36 V dc | |
| Series | iTEMP TMT71 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Endress+Hauser | ||
Input Type mV, Ohm, RTD, TC | ||
Output Type Analog 4 → 20 mA | ||
Supply Voltage 10 → 36 V dc | ||
Series iTEMP TMT71 | ||
- COO (Country of Origin):
- DE
The ENDRESS+HAUSER TMT71 is a Bluetooth-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analogue 4 to 20 mA output signal. It can transfer converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. By providing diagnostic information and allowing predictive maintenance, process efficiency and plant uptime can be increased. The installation is possible either in terminal head form B as per DIN EN 50446, or in cabinets with DIN rail housing or in field housing for Ex d applications.
Integrated Bluetooth interface for the wireless display of measured values
Configuration via Endress+Hauser SmartBlue App
Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω) and voltage transmitters (mV)
Configuration via Endress+Hauser SmartBlue App
Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω) and voltage transmitters (mV)
