제조사부품번호

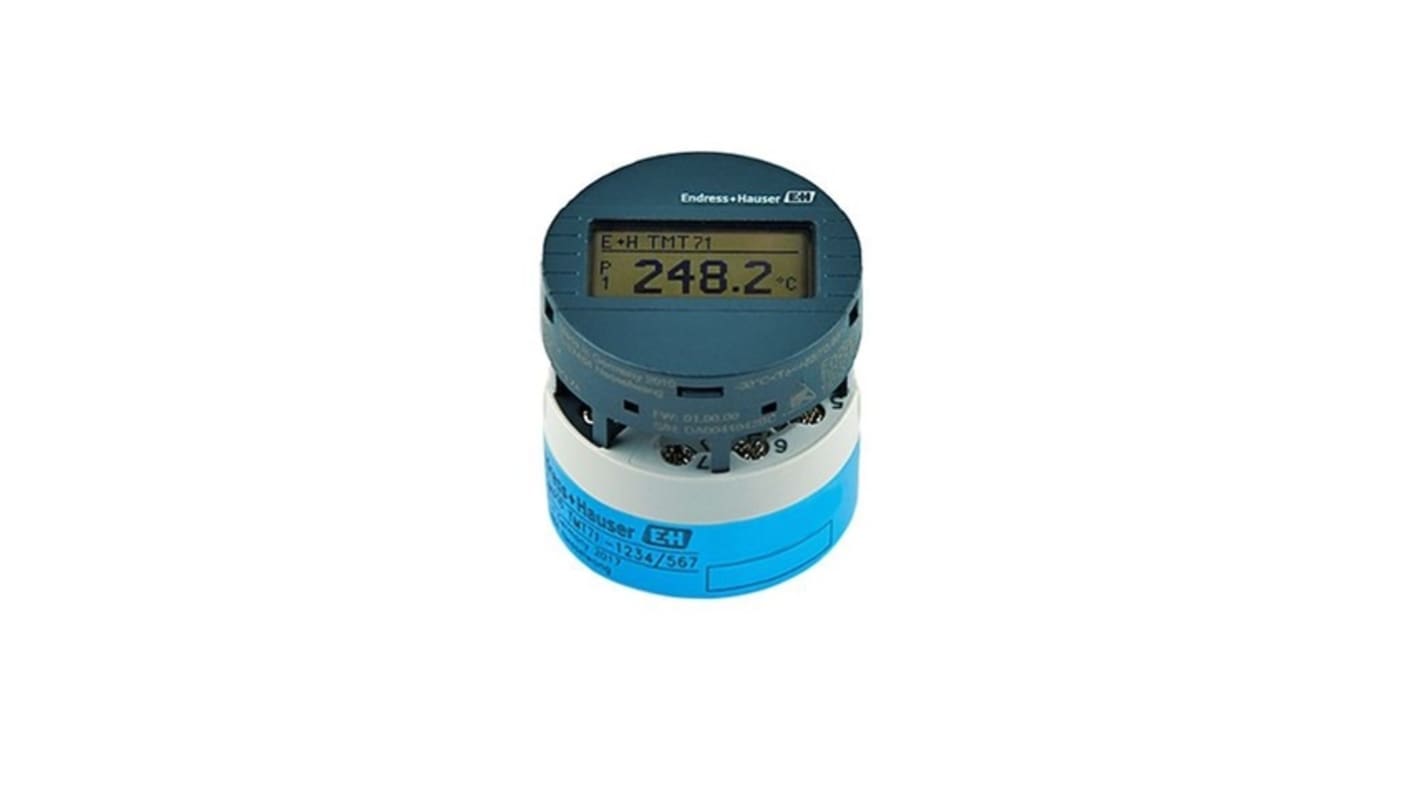

Endress+Hauser TMT71 Temperature Transmitter RTD Input 36V, 85 °C, -40 °C

RS 제품 번호:: 267-9476
Distrelec 제품 번호:: 303-84-447
제조사 부품 번호:: TMT71-AAA1AABA1
제조업체:: Endress+Hauser

Endress+Hauser TMT71 Temperature Transmitter RTD Input 36V, 85 °C, -40 °C

Subtotal (1 unit)*

₩381,860.00

11 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩381,860.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 267-9476
Distrelec 제품 번호:: 303-84-447
제조사 부품 번호:: TMT71-AAA1AABA1
제조업체:: Endress+Hauser

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Endress+Hauser
	Product Type	Temperature Transmitter
	Input Type	RTD
	Output Type	Analogue Output
	Diameter	44mm
	Minimum Temperature Input	-40°C
	Maximum Temperature Input	85°C
	Series	TMT71
	Depth	24.1mm
	Maximum Supply Voltage	36V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	CE mark
	Hazardous Area Certification	ATEX

	모두 선택
	브랜드 Endress+Hauser
	Product Type Temperature Transmitter
	Input Type RTD
	Output Type Analogue Output
	Diameter 44mm
	Minimum Temperature Input -40°C
	Maximum Temperature Input 85°C
	Series TMT71
	Depth 24.1mm
	Maximum Supply Voltage 36V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals CE mark
	Hazardous Area Certification ATEX

COO (Country of Origin):: DE

Endress+Hauser TMT71 Series Temperature Transmitter, -40°C Minimum Operating Temperature, 85°C Maximum Operating Temperature - TMT71-AAA1AABA1

This temperature transmitter converts resistance temperature detector inputs into an analogue control signal for industrial process monitoring and control. It is intended for use where precise RTD measurement and a standard analogue output are required in potentially hazardous environments and general process applications.

Features and Benefits:

• Supports RTD inputs for accurate temperature sensing and control
• Provides analogue output for straightforward integration with control loops
• Operates between -40°C and 85°C to cover wide process ranges
• Accepts supply voltages up to 36V for loop-powered installations
• Certified for hazardous locations with ATEX approval for safe use
• CE marked to indicate conformity with relevant European directives

Applications

• Suitable for process control loops requiring 4-20 mA analogue signalling
• Ideal for temperature monitoring in zones requiring explosion protection
• Used with lead wires from RTD sensors in plant instrumentation racks
• Can be used for retrofitting legacy control systems with modern transmitters

What sensor types does it interface with?

It is designed to accept RTD-type temperature sensors, converting resistance to an analogue signal for control systems.

What environmental temperatures can it withstand during operation?

The unit is specified to operate in ambient and process conditions down to -40°C and up to 85°C.

How does its power requirement affect installation options?

With a maximum supply of 36V it supports common loop-powered schemes and can be integrated into typical 4-20 mA loops.

Is it suitable for use in explosive atmospheres?

It carries ATEX hazardous area certification, permitting installation in areas that require explosion-protected equipment.

What mechanical form factor should installers expect?

The transmitter is provided in a compact package with a 24.1 mm depth and 44 mm diameter for confined mounting spaces.
