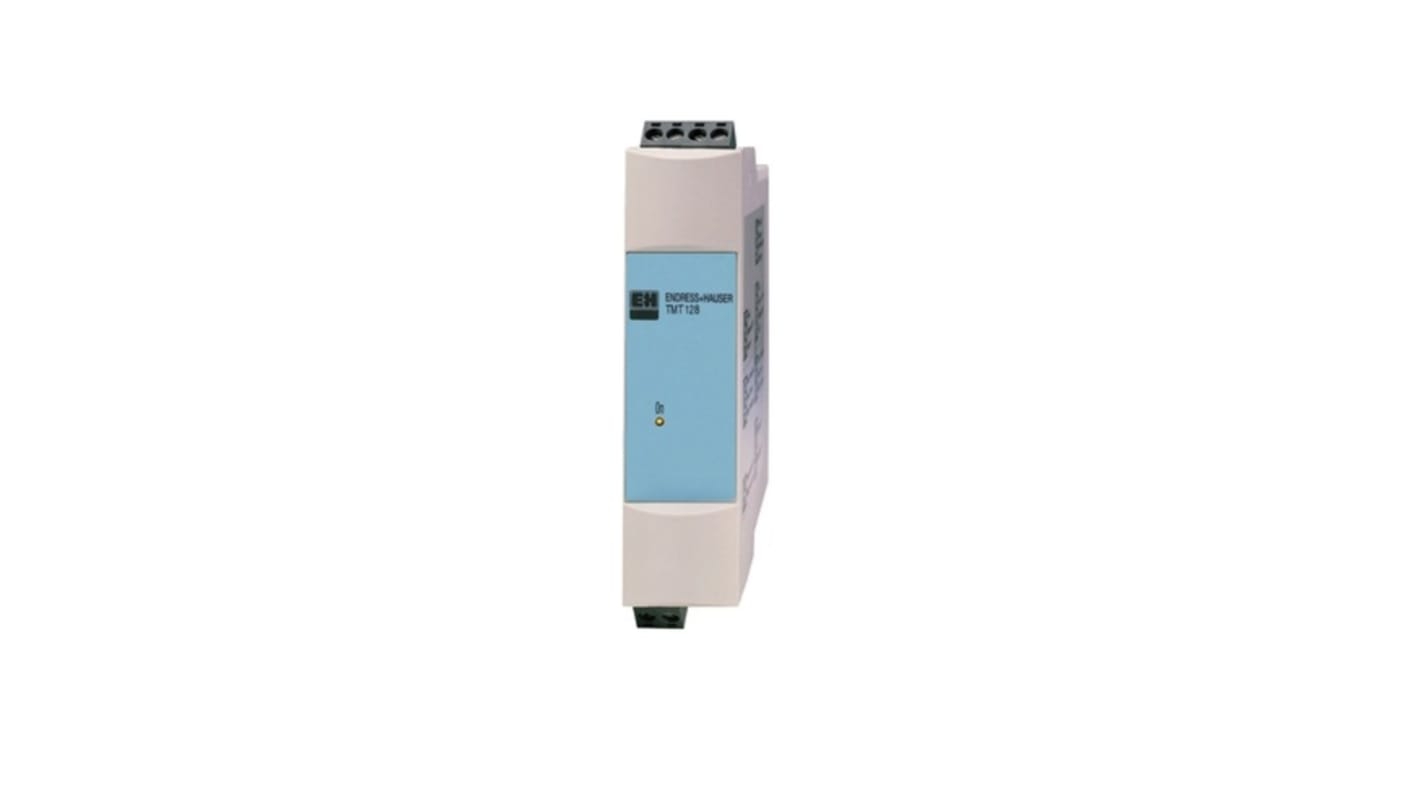

Endress+Hauser TMT128 Temperature Transmitter Thermocouple Input 35V, 85 °C, -200 °C
- RS 제품 번호:
- 267-9472
- Distrelec 제품 번호:
- 303-84-443
- 제조사 부품 번호:
- TMT128-ATJAA
- 제조업체:
- Endress+Hauser
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 267-9472
- Distrelec 제품 번호:
- 303-84-443
- 제조사 부품 번호:
- TMT128-ATJAA
- 제조업체:
- Endress+Hauser
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Endress+Hauser | |
| Input Type | Thermocouple | |
| Product Type | Temperature Transmitter | |
| Output Type | Analogue | |
| Minimum Temperature Input | -40°C | |
| Maximum Temperature Input | 85°C | |
| Series | TMT128 | |
| Depth | 112mm | |
| Maximum Supply Voltage | 35V | |
| Minimum Operating Temperature | -200°C | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | ATEX | |
| Standards/Approvals | CE, CSA, UL, RoHS, IEC 60529, IEC 61010 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Endress+Hauser | ||
Input Type Thermocouple | ||
Product Type Temperature Transmitter | ||
Output Type Analogue | ||
Minimum Temperature Input -40°C | ||
Maximum Temperature Input 85°C | ||
Series TMT128 | ||
Depth 112mm | ||
Maximum Supply Voltage 35V | ||
Minimum Operating Temperature -200°C | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification ATEX | ||
Standards/Approvals CE, CSA, UL, RoHS, IEC 60529, IEC 61010 | ||
- COO (Country of Origin):
- DE
The Endress+Hauser temperature transmitter is designed for the transformation of a TC sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast, easy and cost saving temperature measuring as well as reliable and precise measured values for for a wide range of industry applications
High accuracy in complete ambient temperature range
Ship building approval GL
Galvanic isolation
