Endress+Hauser TMT188 Temperature Transmitter Thermocouple Input 35V, 100 °C, -40 °C

모든 Temperature Transmitters 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
288-6113
Distrelec 제품 번호:
304-27-075
제조사 부품 번호:
TMT188-AJAFA
제조업체:
Endress+Hauser
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Endress+Hauser

Input Type

Thermocouple

Product Type

Temperature Transmitter

Output Type

Analogue

Diameter

44mm

Minimum Temperature Input

-200°C

Maximum Temperature Input

1372°C

Series

TMT188

Maximum Supply Voltage

35V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Hazardous Area Certification

NO

Standards/Approvals

GL (German Lloyd), UL, CSA IS, ATEX, EAC

COO (Country of Origin):
DE

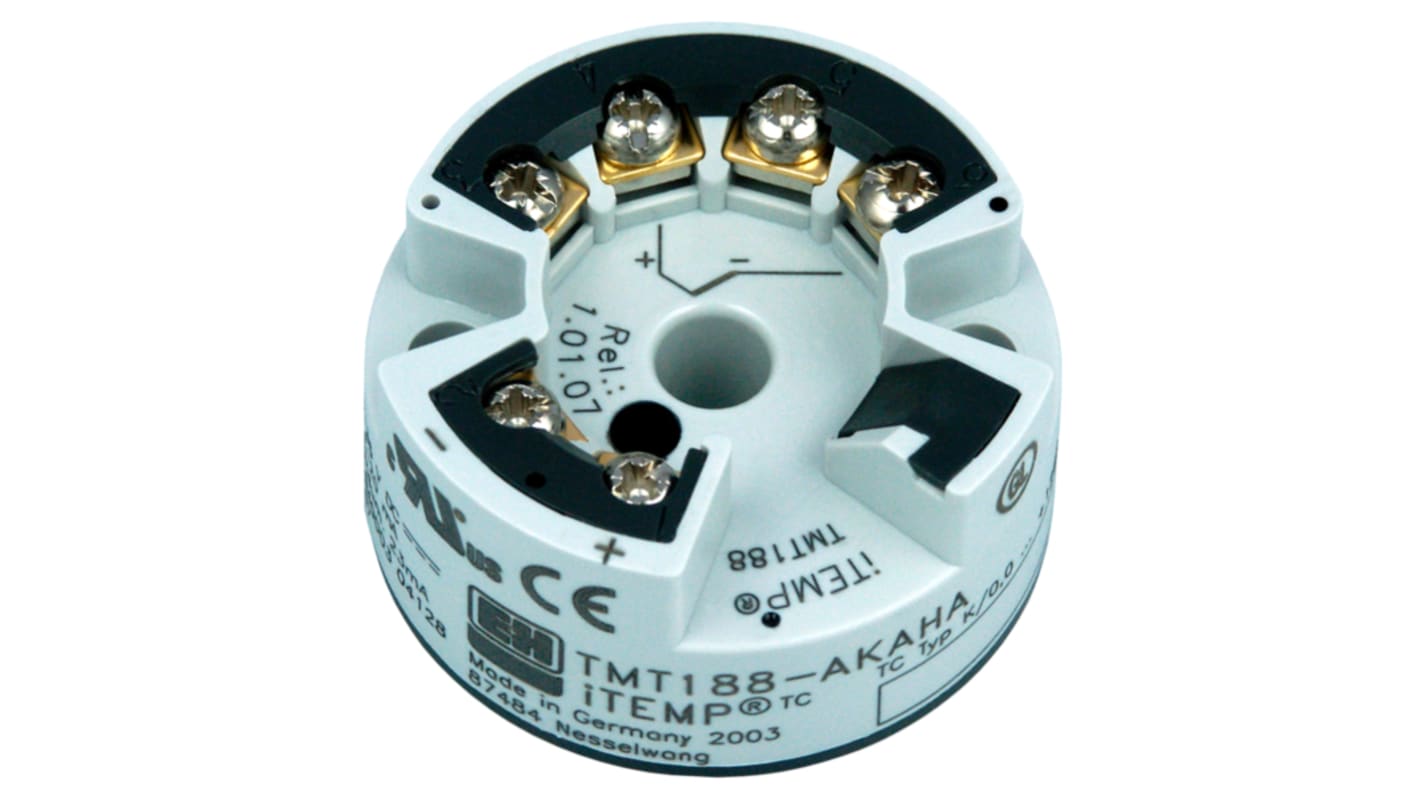

The Endress+Hauser transmitter is designed for the transformation of a thermocouple (TC) sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast and easy temperature measuring as well as reliable and precise measured values for a wide range of industry applications.

High accuracy in complete ambient temperature range

Failure information in the event of sensor breakage or short circuit

Galvanic isolation

Marine approval
