Endress+Hauser TMT31 Temperature Transmitter PT100 Input 36V
- RS 제품 번호:
- 317-739
- 제조사 부품 번호:
- TMT31-URA1B1A1PA
- 제조업체:
- Endress+Hauser
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 317-739
- 제조사 부품 번호:
- TMT31-URA1B1A1PA
- 제조업체:
- Endress+Hauser
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Endress+Hauser | |
| Input Type | PT100 | |
| Product Type | Temperature Transmitter | |
| Output Type | Analogue Current | |
| Diameter | 44mm | |
| Minimum Temperature Input | -50°C | |
| Maximum Temperature Input | 250°C | |
| Series | TMT31 | |
| Maximum Supply Voltage | 36V | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Endress+Hauser | ||
Input Type PT100 | ||
Product Type Temperature Transmitter | ||
Output Type Analogue Current | ||
Diameter 44mm | ||
Minimum Temperature Input -50°C | ||
Maximum Temperature Input 250°C | ||
Series TMT31 | ||
Maximum Supply Voltage 36V | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE

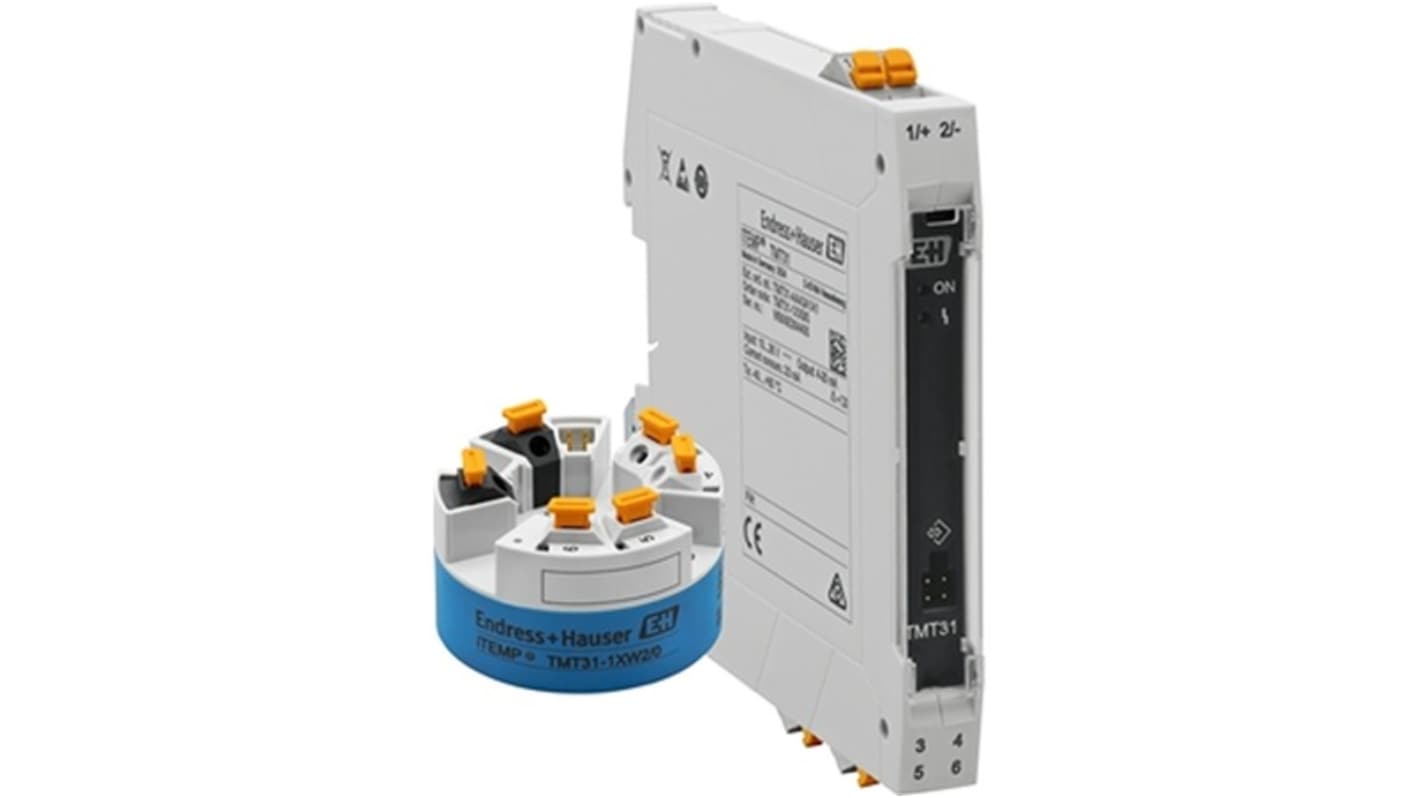

The Endress+Hauser iTEMP TMT31 is a reliable, long term stable, single channel 4 to 20 mA temperature transmitter for thermometers with terminal head Form B suited for use in Zone 2 / Div. 2 areas. Individual transmitter sensor matching with Callendar-Van Dusen linearization further improves your temperature measurement accuracy for RTD sensors. Push in terminals for quick wiring facilitate installation.
Improved RTD measurement accuracy up to 0.1 K and long term stability
Diagnostics information according to NAMUR NE 107
Factory pre configured
