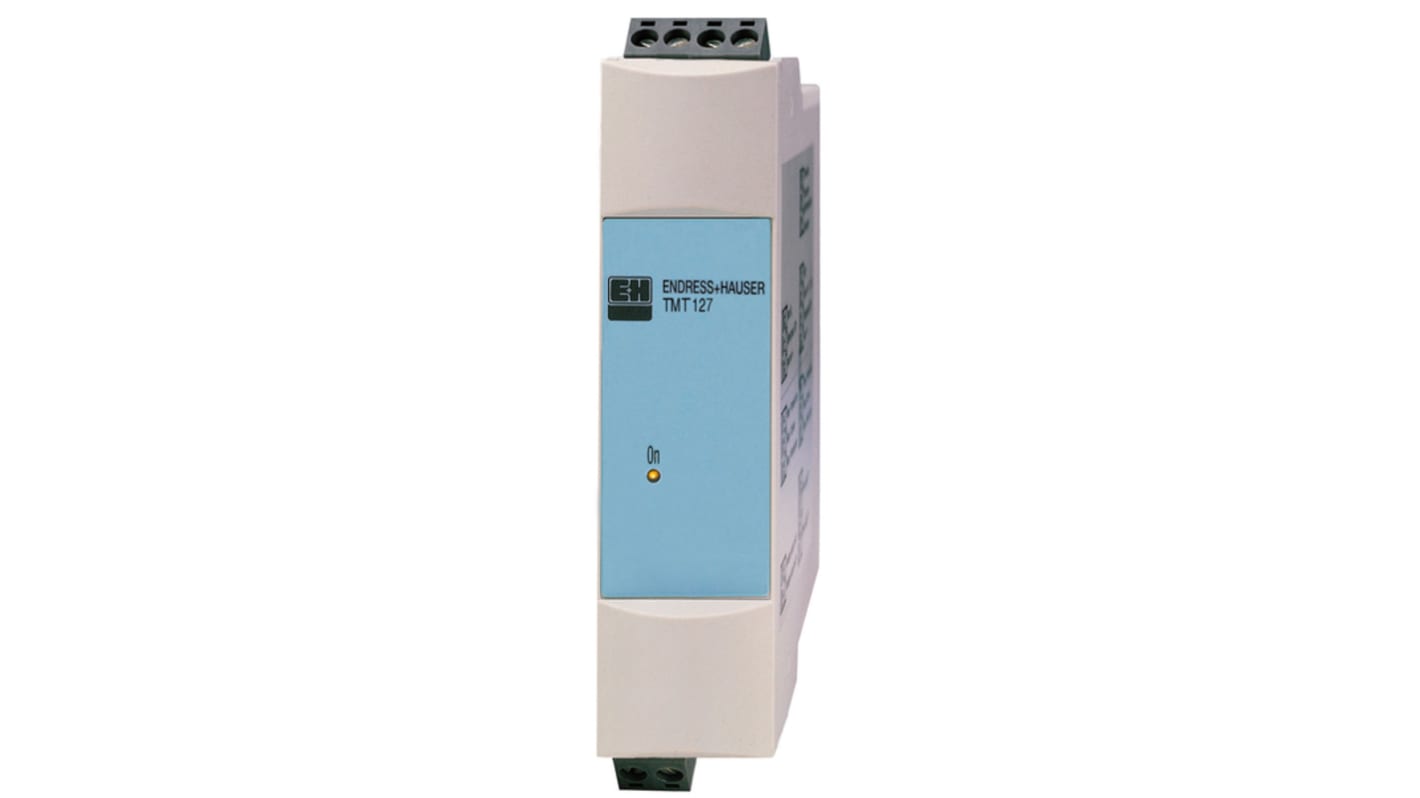

Endress+Hauser TMT127 Temperature Transmitter PT100 Input, 85 °C, -40 °C

모든 Temperature Transmitters 열람하기

Subtotal (1 unit)*

₩340,600.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량
한팩당
1 +₩340,600.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
288-6077
Distrelec 제품 번호:
304-27-036
제조사 부품 번호:
TMT127-A21FGA
제조업체:
Endress+Hauser
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Endress+Hauser

Input Type

PT100

Product Type

Temperature Transmitter

Output Type

Analogue

Minimum Temperature Input

-200°C

Maximum Temperature Input

850°C

Series

TMT127

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

IEC 60529, NAMUR NE 21, IEC 61010, IEC 61326

Hazardous Area Certification

nA-CSA IS, NI, ATEX EEx ia, NI-CSA GP-FM IS

COO (Country of Origin):
DE
The Endress+Hauser iTEMP TMT127 transmitter is designed for the transformation of an RTD Pt100 sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast and easy temperature measuring as well as reliable and precise measured values for a wide range of industry applications. Installation is realized on DIN rail according to IEC 60715 (housing width: 22.5 mm).

High accuracy in complete ambient temperature range

Failure information for sensor breakage or short-circuit
