제조사부품번호

STMicroelectronics STLM20 Series, Voltage Output Temperature Sensor, Surface Mount, Analogue, ±1.5°C, 4-Pin UDFN

RS 제품 번호:: 686-4973P
제조사 부품 번호:: STLM20DD9F
제조업체:: STMicroelectronics

STMicroelectronics STLM20 Series, Voltage Output Temperature Sensor, Surface Mount, Analogue, ±1.5°C, 4-Pin UDFN

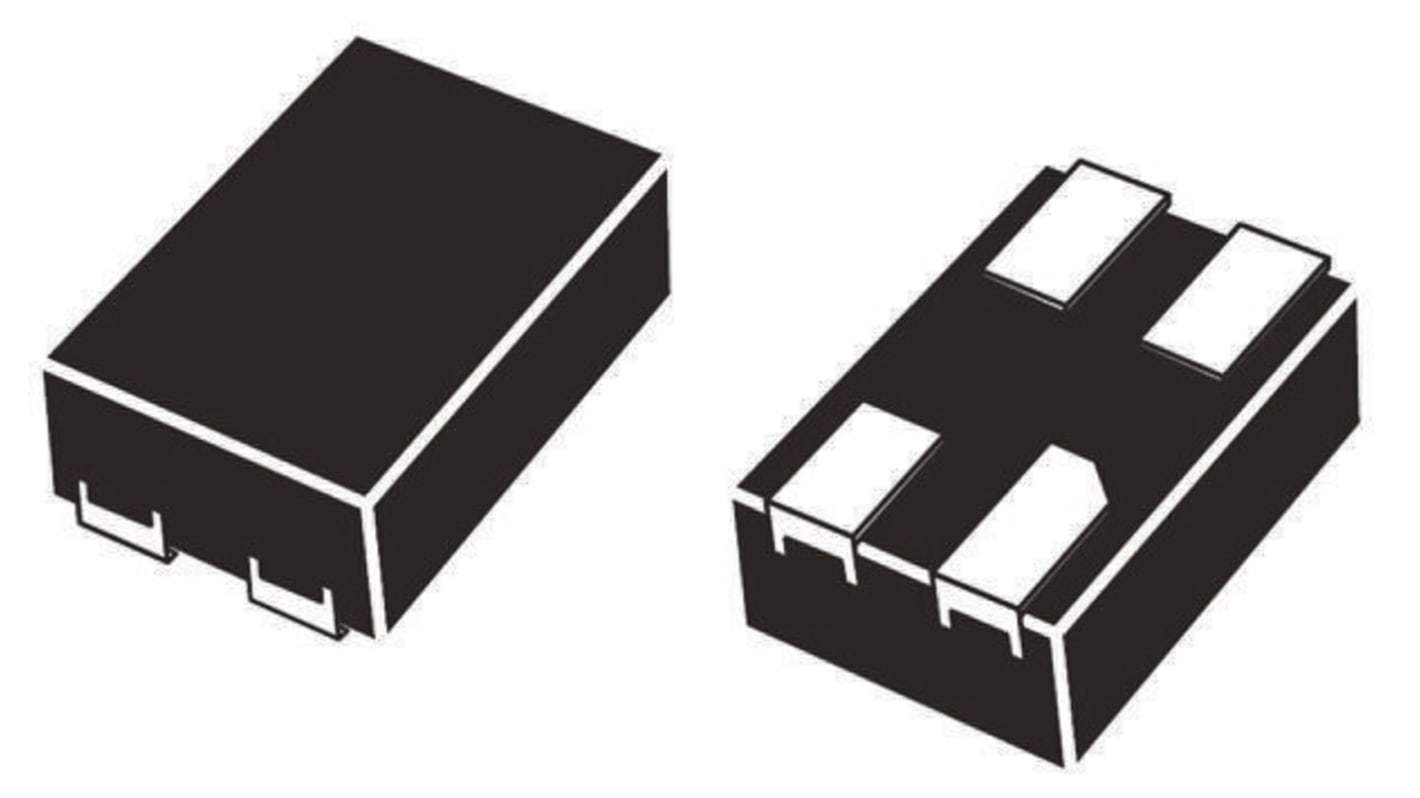

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 이용 불가

이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.

RS 제품 번호:: 686-4973P
제조사 부품 번호:: STLM20DD9F
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Temperature Sensor
	Output Type	Voltage
	Sub Type	Temperature Sensor
	Interface Type	Analogue
	Accuracy	±1.5°C
	Mount Type	Surface
	Pin Count	4
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Minimum Supply Voltage	2.4V
	Maximum Supply Voltage	5.5V
	Package Type	UDFN
	Length	1.3mm
	Standards/Approvals	No
	Width	1mm
	Series	STLM20
	Height	0.48mm
	Sensor Gain	-11.77mV/°C
	Automotive Standard	No

	모두 선택
	브랜드 STMicroelectronics
	Product Type Temperature Sensor
	Output Type Voltage
	Sub Type Temperature Sensor
	Interface Type Analogue
	Accuracy ±1.5°C
	Mount Type Surface
	Pin Count 4
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Minimum Supply Voltage 2.4V
	Maximum Supply Voltage 5.5V
	Package Type UDFN
	Length 1.3mm
	Standards/Approvals No
	Width 1mm
	Series STLM20
	Height 0.48mm
	Sensor Gain -11.77mV/°C
	Automotive Standard No

Datasheet

STLM20 Analogue Temperature Sensors

The STLM20 analogue temperature sensors have been designed for low power applications such as portable devices (smartphones, GPS, PDA devices and medical instruments) and monitors for RF power transistors and voltage-controlled crystal oscillators.

Features;

Low power

2.4 V to 5.5 V operating voltage range

-55°C to +130°C (grade 7) -40°C to +85°C (grade 9) temperature range

STMicroelectronics STLM20 Series, Voltage Output Temperature Sensor, Surface Mount, Analogue, ±1.5°C, 4-Pin UDFN

STLM20 Analogue Temperature Sensors
