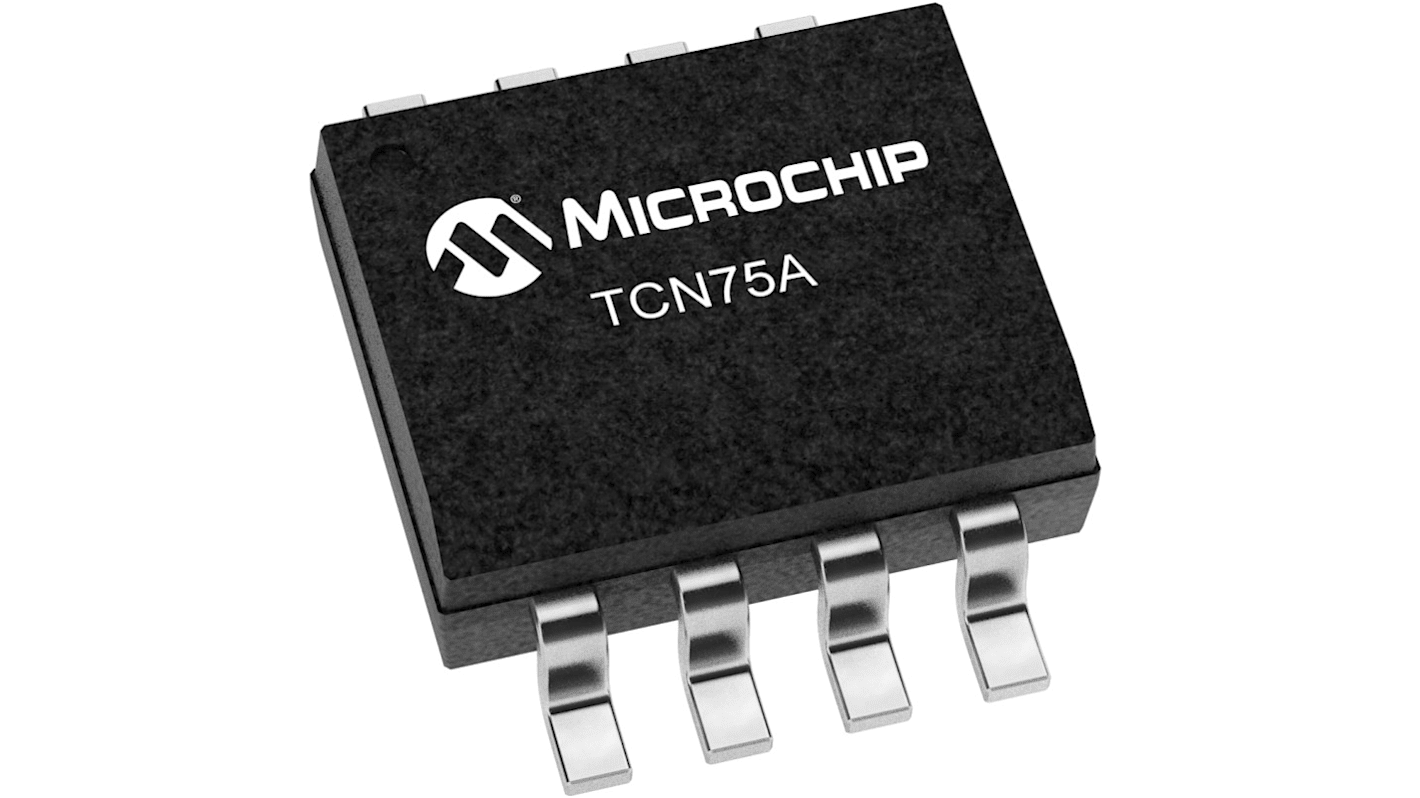

Microchip TCN75A Series, Digital Output Temperature Sensor, Surface Mount, I2C, ±2°C, 8-Pin SOIC

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
264-8906
제조사 부품 번호:
TCN75AVOA713
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Temperature Sensor

Output Type

Digital

Sub Type

Sensor

Interface Type

I2C

Accuracy

±2°C

Mount Type

Surface

Pin Count

8

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

5.5V

Package Type

SOIC

Length

4.9mm

Standards/Approvals

RoHS

Series

TCN75A

Height

1.75mm

Automotive Standard

No

The Microchip 2-Wire serial digital temperature sensor is capable of reading temperatures from -40°C to +125°C. It notifies the host controller when the ambient temperature exceeds a user programmed set point. The ALERT output is programmable as either a simple comparator for thermostat operation or as a temperature event interrupt. Communication with the sensor is accomplished via a two-wire bus that is compatible with industry standard protocols. This permits reading the current temperature, programming the set point and hysteresis and configuring the device. Small physical size, low installed cost and ease of use make the it an ideal choice for implementing sophisticated temperature system management schemes in a variety of applications.

2-wire I²C™/SMBus Compatible Interface

User Selectable 9- to 12-Bit Resolution

±3°C Accuracy from +25°C to +125°C

Low Operating Current: 500 μA (max)

Shutdown Mode: 2 μA (max)

Power Saving One-Shot Temperature Conversion Measurement

Multi-drop capability

AEC-Q100 Qualified Grade 1
