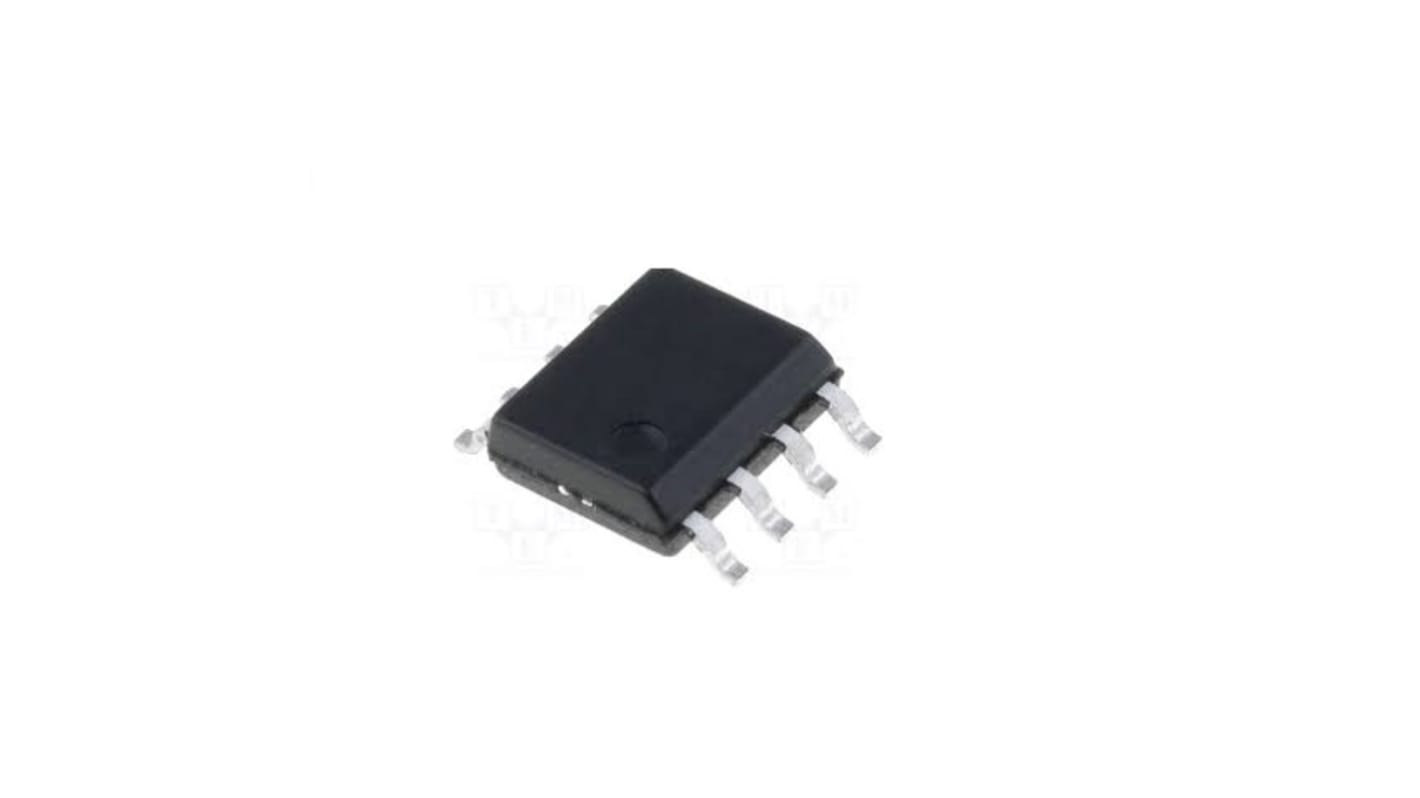

Microchip TCN75 Series Temperature, Surface Mount, 2 Wire Serial, 0.5 °C, 8-Pin SOIC

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 100 units)*

₩268,905.00

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 추가로 2026년 5월 25일 부터 100 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
Per Tube*
100 - 400₩2,689.05₩268,885.50
500 +₩2,634.45₩263,523.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
236-8958
제조사 부품 번호:
TCN75-3.3MOA
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Temperature

Sub Type

Temperature

Interface Type

2 Wire Serial

Accuracy

0.5 °C

Mount Type

Surface

Pin Count

8

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-55°C

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

5.5V

Package Type

SOIC

Series

TCN75

Length

5mm

Height

1.1mm

Standards/Approvals

RoHS

Automotive Standard

No

The Microchip TCN75 series serially programmable temperature sensor notifies the host controller when ambient temperature exceeds a user programmed set point. Hysteresis is also programmable. The INT/CMPTR output is programmable as either a simple comparator for thermostat operation or as a temperature event interrupt. Communication with the TCN75 is accomplished via a two-wire bus that is compatible with industry standard protocols. This permits reading the current temperature, programming the set point and hysteresis, and configuring the device.

Solid state temperature sensing 0.5°C accuracy typical

Operates from -55 °C to +125 °C

Operating supply range 2.7 V to 5.5 V

Programmable trip point and hysteresis with power-up defaults

Standard 2-Wire serial interface

Thermal event alarm output functions as interrupt or comparator/thermostat output

Up to 8 TCN75s may share the same bus

Shutdown mode for low standby power consumption

5V Tolerant I/O at VDD = 3V

Low power 250 micro A typical operating
