Microchip TC72 Series, Digital Output Temperature Sensor, Surface Mount, SPI (4-Wire), ±3°C, 8-Pin MSOP

RS 제품 번호:: 264-8903P
제조사 부품 번호:: TC72-3.3MUATR
제조업체:: Microchip

Microchip TC72 Series, Digital Output Temperature Sensor, Surface Mount, SPI (4-Wire), ±3°C, 8-Pin MSOP

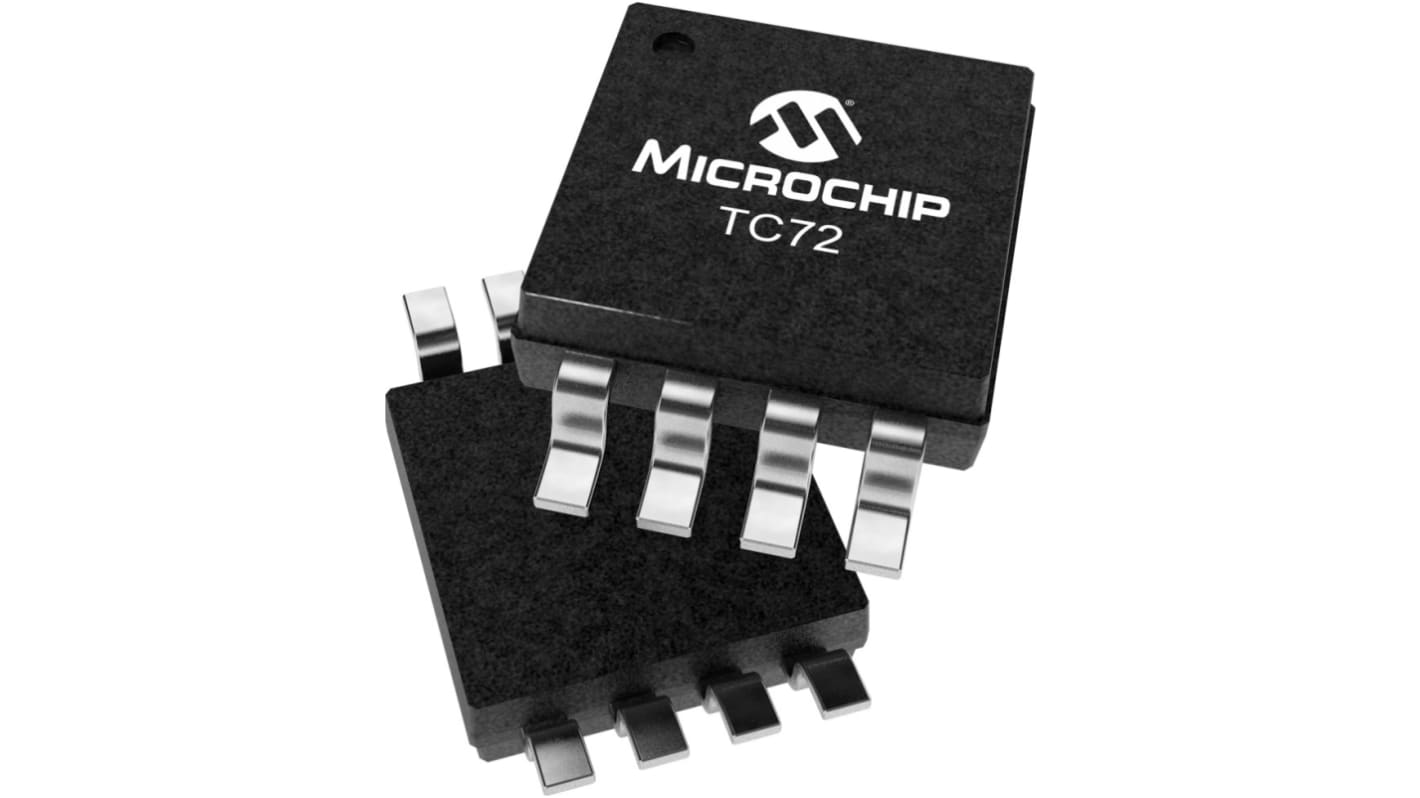

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal 50 units (supplied on a continuous strip)*

₩93,700.00

마지막 RS 재고

최종적인 1,925 개 unit(s)이 배송 준비 됨

수량	한팩당
50 - 95	₩1,874.00
100 - 245	₩1,838.00
250 - 995	₩1,800.00
1000 +	₩1,764.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 264-8903P
제조사 부품 번호:: TC72-3.3MUATR
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Temperature Sensor
	Output Type	Digital
	Sub Type	Sensor
	Interface Type	SPI (4-Wire)
	Accuracy	±3°C
	Mount Type	Surface
	Pin Count	8
	Maximum Operating Temperature	125°C
	Minimum Operating Temperature	-55°C
	Minimum Supply Voltage	2.65V
	Maximum Supply Voltage	5.5V
	Package Type	MSOP
	Series	TC72
	Height	1.1mm
	Length	3mm
	Standards/Approvals	RoHS
	Automotive Standard	No

	모두 선택
	브랜드 Microchip
	Product Type Temperature Sensor
	Output Type Digital
	Sub Type Sensor
	Interface Type SPI (4-Wire)
	Accuracy ±3°C
	Mount Type Surface
	Pin Count 8
	Maximum Operating Temperature 125°C
	Minimum Operating Temperature -55°C
	Minimum Supply Voltage 2.65V
	Maximum Supply Voltage 5.5V
	Package Type MSOP
	Series TC72
	Height 1.1mm
	Length 3mm
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - TC72-3.3MUATR

The Microchip digital temperature sensor capable of reading temperatures from -55°C to +125°C. It can be used either in a continuous temperature conversion mode or a one-shot conversion mode. The continuous conversion mode measures the temperature approximately every 150 msec and stores the data in the temperature registers. In contrast, the one-shot mode performs a single temperature measurement and returns to the power saving shut down mode. It features high temperature accuracy, ease-of-use and is therefore the ideal solution for implementing thermal management in a variety of systems. The device also features a shutdown mode for low power operation.

4-wire SPI Compatible Interface

10-Bit resolution (0.25°C/Bit)

±2°C accuracy from -40°C to +85°C

±3°C Accuracy from -55°C to +125°C

Low Operating Current: 250uA (typical)

Shutdown Mode: 1uA (max)

Power Saving One-Shot Temperature Measurement

Does not require any additional external components

Microchip TC72 Series, Digital Output Temperature Sensor, Surface Mount, SPI (4-Wire), ±3°C, 8-Pin MSOP
