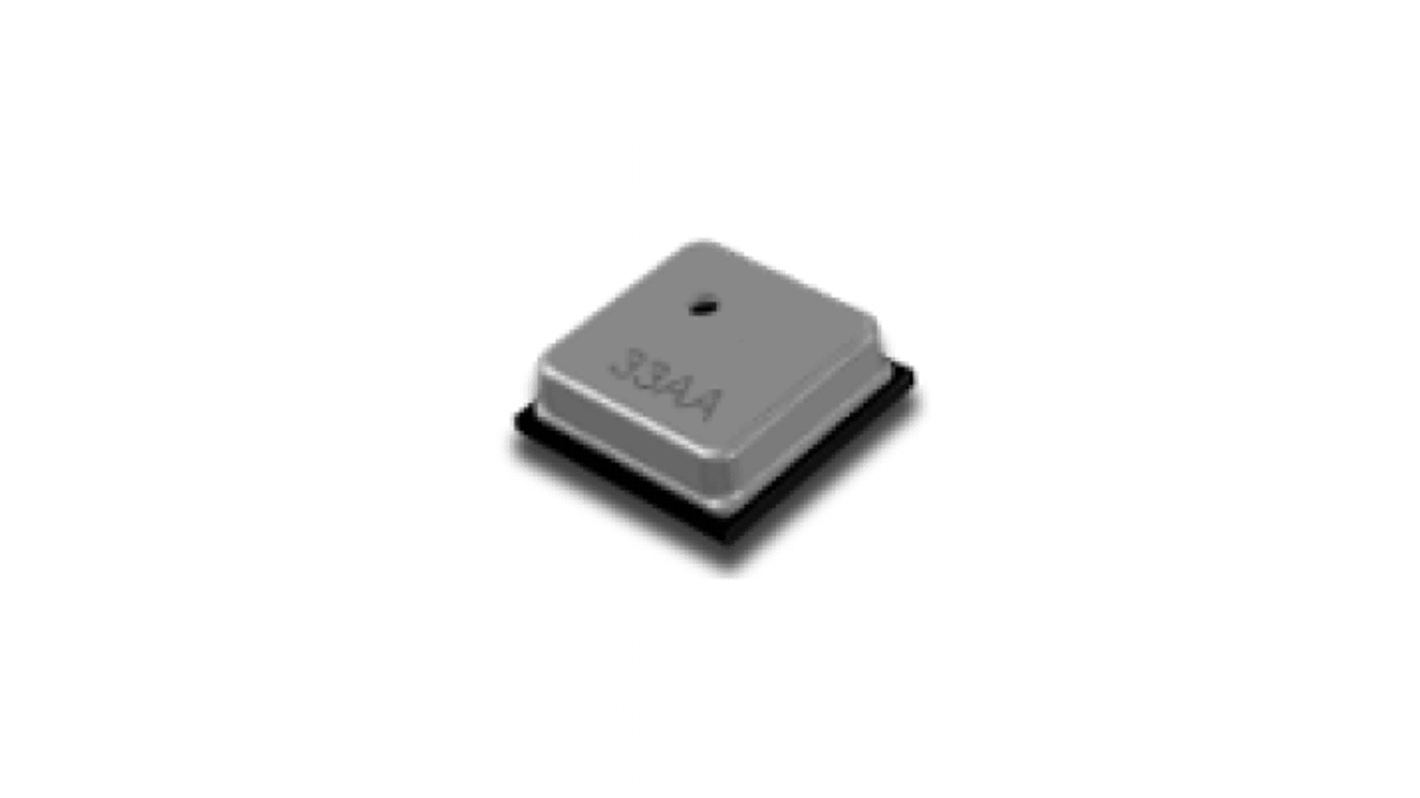

Renesas Electronics HS401x Series, Analogue Output Analogue Temperature Sensor, Surface Mount, I2C, ±2.5 %, 8-Pin 8-LGA

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
244-4472
제조사 부품 번호:
HS4113
제조업체:
Renesas Electronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Renesas Electronics

Product Type

Analogue Temperature Sensor

Output Type

Analogue

Interface Type

I2C

Accuracy

±2.5 %

Mount Type

Surface

Pin Count

8

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Minimum Supply Voltage

1.71V

Maximum Supply Voltage

3.6V

RH Range

0 to 100 %

Package Type

8-LGA

Width

2.5 mm

Length

2.5mm

Series

HS401x

Height

0.9mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q100

The Renesas electronics' HS411x series is a highly accurate, fully calibrated automotive-grade relative humidity and temperature sensor with a hydrophobic membrane. the membrane makes the HS411x dust resistant and waterproof. the MEMS sensor features a proprietary sensor-level protection, ensuring high reliability and long-term stability.

Humidity range of 0% to 100%RH and accuracy of ±2.5% RH

Hydrophobic membrane, IP67 rating

Excellent stability against aging and volatile compounds
