Honeywell Technologies HIH8000 Series, Digital Output Temperature & Humidity Sensor, Through Hole Mount, Serial-I2C, ±2

본 제품군 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal 250 units (supplied on a reel)*

₩13,900,000.00

Add to Basket
수량 선택 또는 입력
죄송합니다. 재고가 부족합니다. 수량을 줄여주세요.
마지막 RS 재고
  • 최종적인 65 개 unit(s)이 배송 준비 됨

수량
한팩당
250 - 499₩55,600.00
500 +₩54,400.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
203-6946P
제조사 부품 번호:
HIH8121-021-001
제조업체:
Honeywell Technologies
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Honeywell Technologies

Product Type

Temperature & Humidity Sensor

Output Type

Digital

Interface Type

Serial-I2C

Sub Type

Temperature & Humidity Sensor

Accuracy

±2 %

Mount Type

Through Hole

Pin Count

4

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Minimum Supply Voltage

2.3V

Maximum Supply Voltage

5.5V

RH Range

0 to 100 %

Package Type

SIP

Series

HIH8000

Width

1.91mm

Standards/Approvals

No

Length

4.9mm

Height

8.9mm

Automotive Standard

No

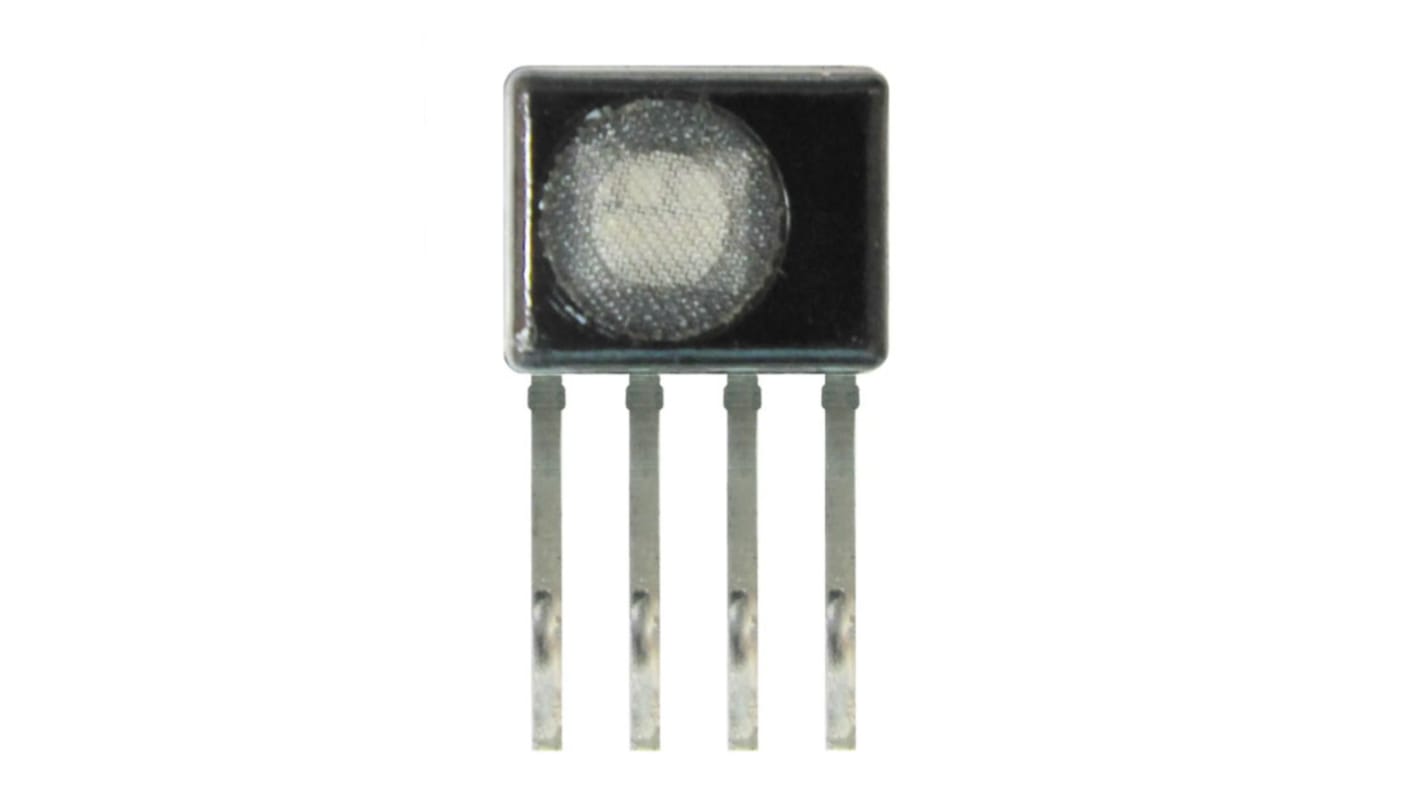

Honeywell Temperature and Humidity Sensor, 4 Pins, ±2%RH Accuracy- HIH8000 Series - HIH8121-021-001


Accurately measure relative humidity and temperature levels with this digital sensor from Honeywell. It maintains its stability over long periods of time, so there's no need to regularly recalibrate the unit. The thermoset polymer capacitive sensing element is resistant to condensation, dust, dirt and oil, so it helps to prevent contaminants from affecting the unit's readings. This sensor has a sleep mode when not in use to reduce power consumption and maximise battery life for long-lasting performance.

Features & Benefits


• Wide operating temperature range of -40°C to +125°C for use in demanding conditions

• Temperature measurement accuracy of +0.5°C for precise results

Applications


• Air compressors

• Dehumidifiers

• Industrial incubators

• Grain drying systems

Where can I mount this sensor?


This sensor is designed for through-hole mounting onto a PCB for simple and secure installation.
