STMicroelectronics Temperature, Digital

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩62,770.50

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량
한팩당
1 - 4₩62,770.50
5 +₩61,503.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
196-1898
제조사 부품 번호:
STEVAL-MKI203V1K
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Temperature

Interface Type

Digital

Sub Type

Temperature Sensor

Standards/Approvals

No

Automotive Standard

No

COO (Country of Origin):
IT

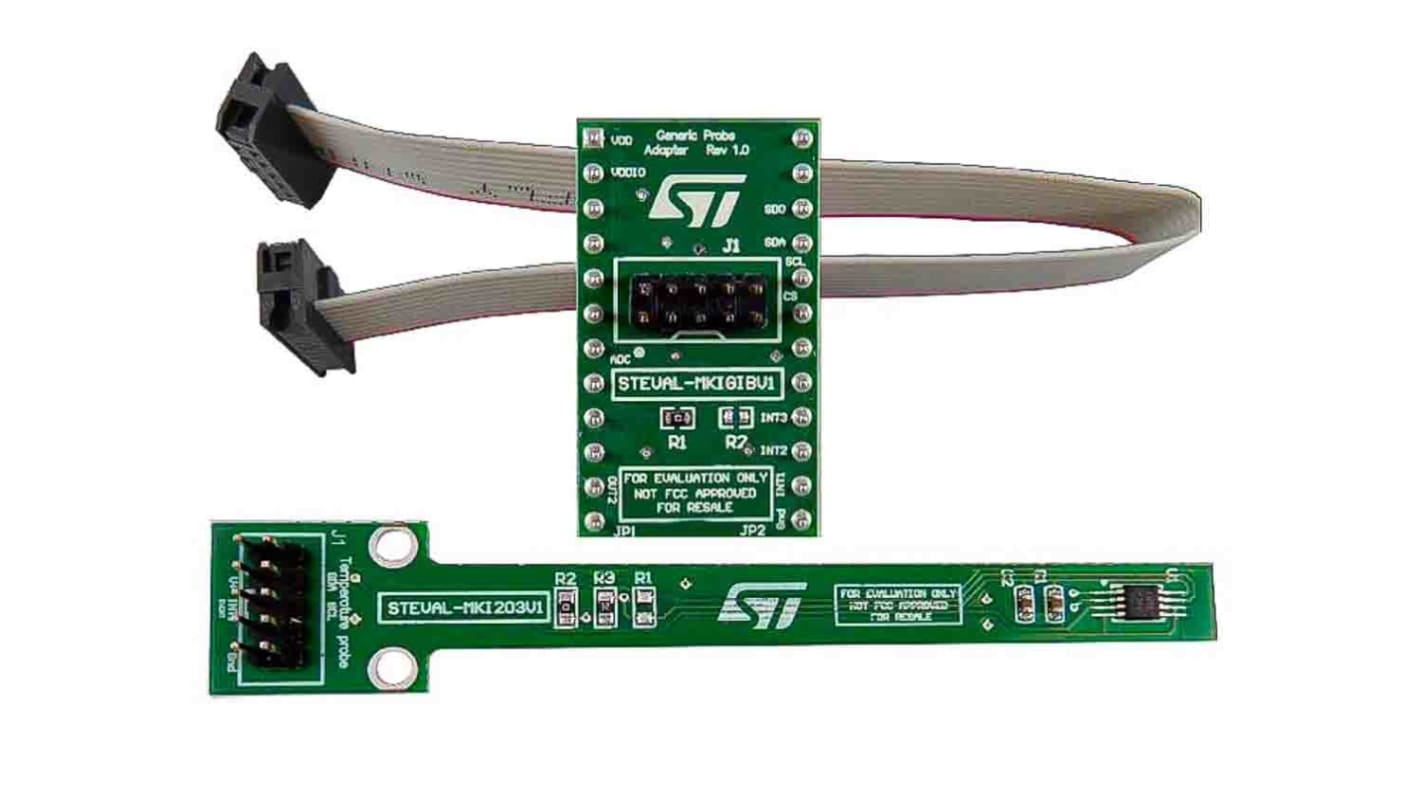

The STEVAL-MKI203V1K evaluation kit consists of a probe with the STCN75 temperature sensor connected via flat cable to the STEVAL-MKIGIBV1 adapter board, so it can interface with the STEVAL-MKI109V3 motherboard. The device small package dimensions allow it to be mounted on top of a very thin probe, so it can take temperature readings not influenced by heat from other electronic components or boards.

The STEVAL-MKIGIBV1 can be plugged into a standard DIL24 socket.

The kit provides the complete STCN75 pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.

The STEVAL-MKI109V3 motherboards feature a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC running the free Unico GUI graphical user interface or dedicated software routines for customized applications.

User friendly STCN75 board

Complete STCN75 pinout for a standard DIL 24 socket

Fully compatible with and STEVAL-MKI109V3 motherboards
