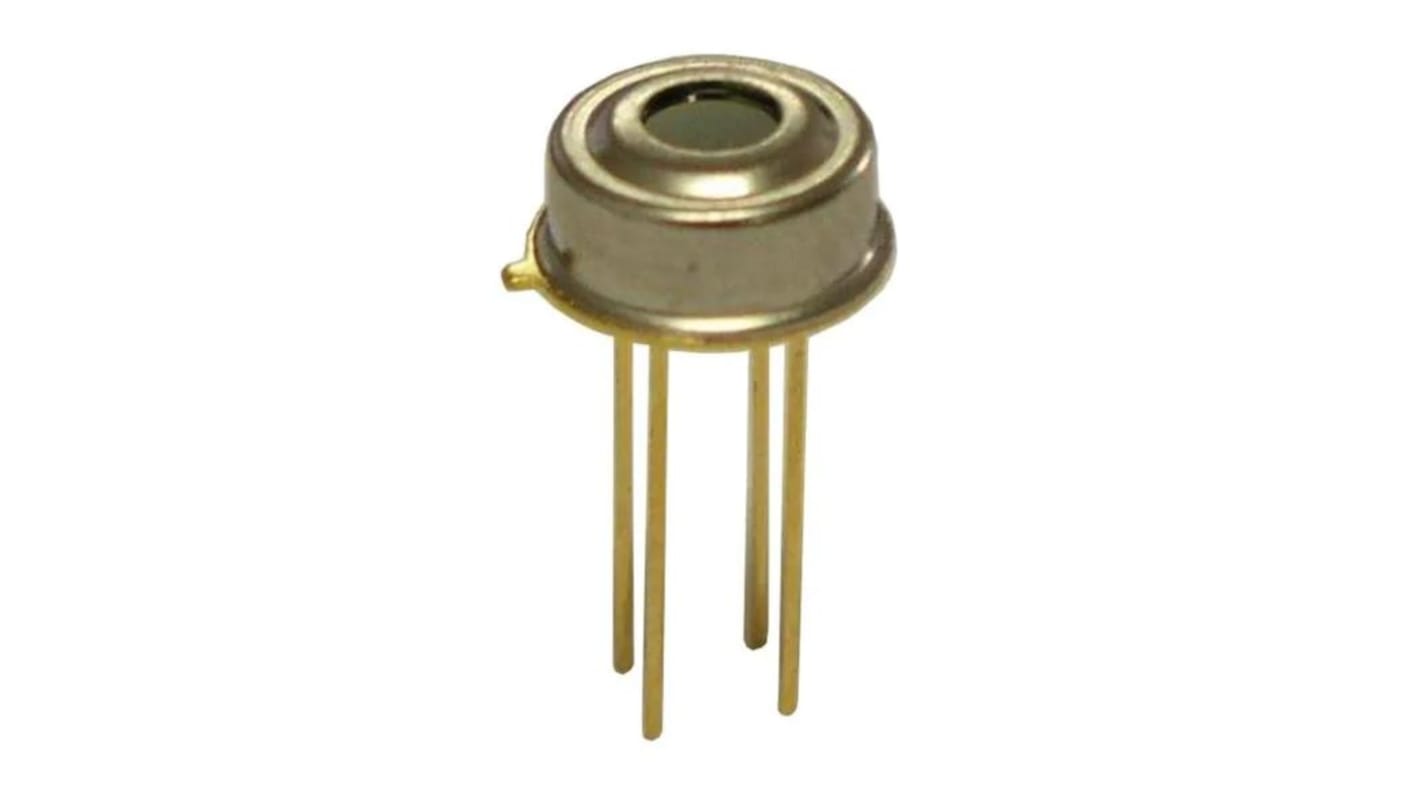

Melexis MLX90614ESF Series, PWM Output Temperature Sensor, Through Hole Mount, SMBus, ±0.5°C, 4-Pin TO-39
- RS 제품 번호:
- 194-2937
- 제조사 부품 번호:
- MLX90614ESF-ACF-000-TU
- 제조업체:
- Melexis
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩47,931.00
마지막 RS 재고
- 최종적인 2 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩47,931.00 |
| 10 + | ₩46,499.70 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 194-2937
- 제조사 부품 번호:
- MLX90614ESF-ACF-000-TU
- 제조업체:
- Melexis
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Melexis | |
| Product Type | Temperature Sensor | |
| Output Type | PWM | |
| Interface Type | SMBus | |
| Sub Type | Temperature Sensor | |
| Accuracy | ±0.5°C | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 5V | |
| Package Type | TO-39 | |
| Standards/Approvals | No | |
| Height | 4.1mm | |
| Length | 9mm | |
| Series | MLX90614ESF | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Melexis | ||
Product Type Temperature Sensor | ||
Output Type PWM | ||
Interface Type SMBus | ||
Sub Type Temperature Sensor | ||
Accuracy ±0.5°C | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 5V | ||
Package Type TO-39 | ||
Standards/Approvals No | ||
Height 4.1mm | ||
Length 9mm | ||
Series MLX90614ESF | ||
Automotive Standard AEC-Q100 | ||
The MLX90614 is an infrared thermometer for non-contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can. Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C.
The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120°C, with an output resolution of 0.14°C.
