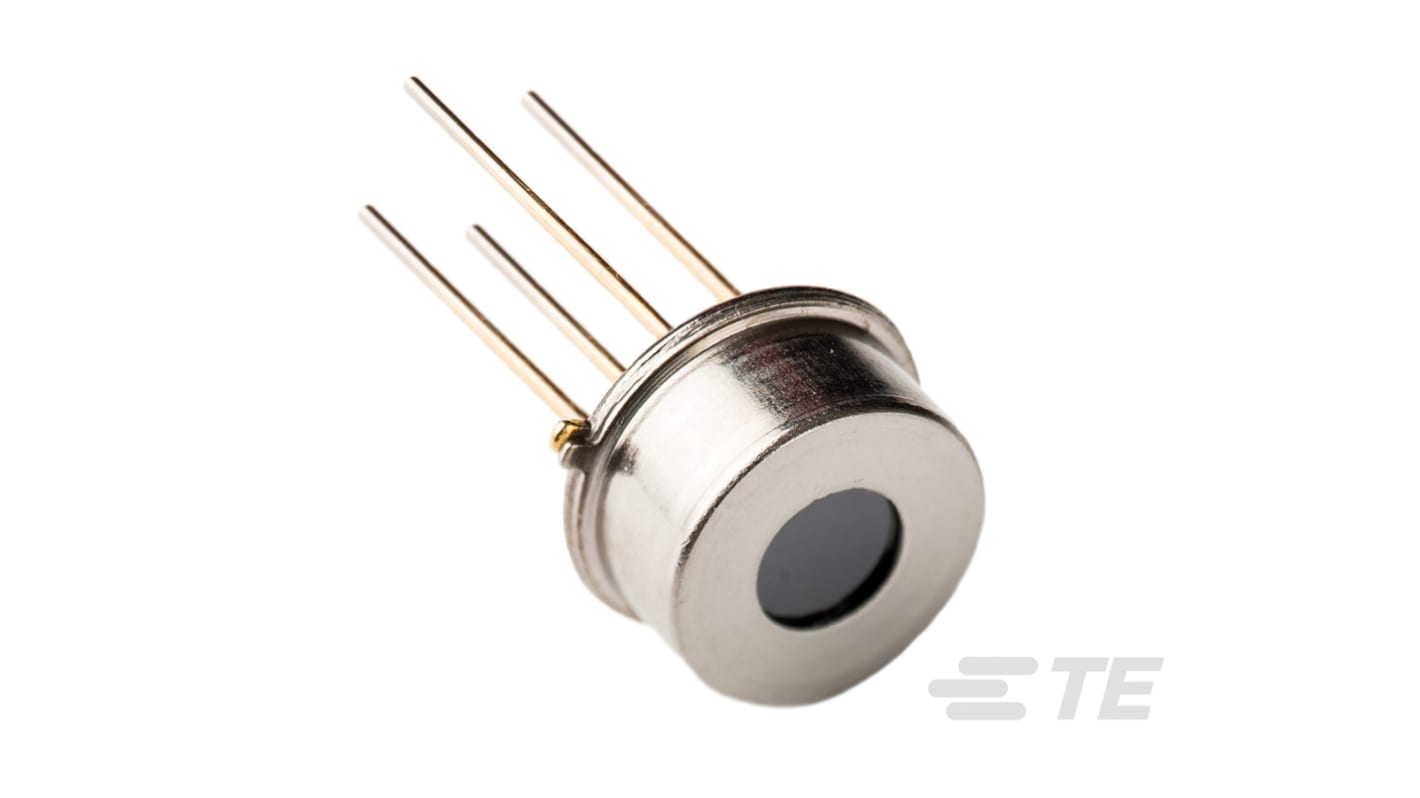

TE Connectivity Digital Temperature Sensor, Through Hole Mount, I2C, 4 Pins

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩36,979.60

Add to Basket
수량 선택 또는 입력
단종되는 중
  • 최종적인 209 개 unit(s)이 배송 준비 됨
수량
한팩당
1 - 124₩36,979.60
125 - 249₩36,246.40
250 +₩35,513.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
191-7816
제조사 부품 번호:
G-TPMO-102
제조업체:
TE Connectivity
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

TE Connectivity

Sensor Function

Temperature

Interface Type

I2C

Mounting Type

Through Hole

Pin Count

4

Minimum Operating Temperature

-20 °C

Operating Temperature Range

-20 to +85 °C

Maximum Operating Temperature

+85 °C

Minimum Operating Supply Voltage

1.68 V

Maximum Operating Supply Voltage

3.6 V

Package Type

TO-5

Height

4.3mm

Width

9.15 (Dia.)mm

Dimensions

9.15 (Dia.) x 4.3mm

Resolution

16 bit

TSD Series digital thermopile sensors include an infrared sensor and integrated signal conditioner. These thermopile sensors can directly interface with micro-controllers through an I2C interface.

0°C … +300°C measurement range
Small size
I2C Interface
Low current consumption
Operating Temperature Range: -10°C … +85°C
Applications
Contactless temperature measurement
Climate control
Industrial process control
Household applications

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
