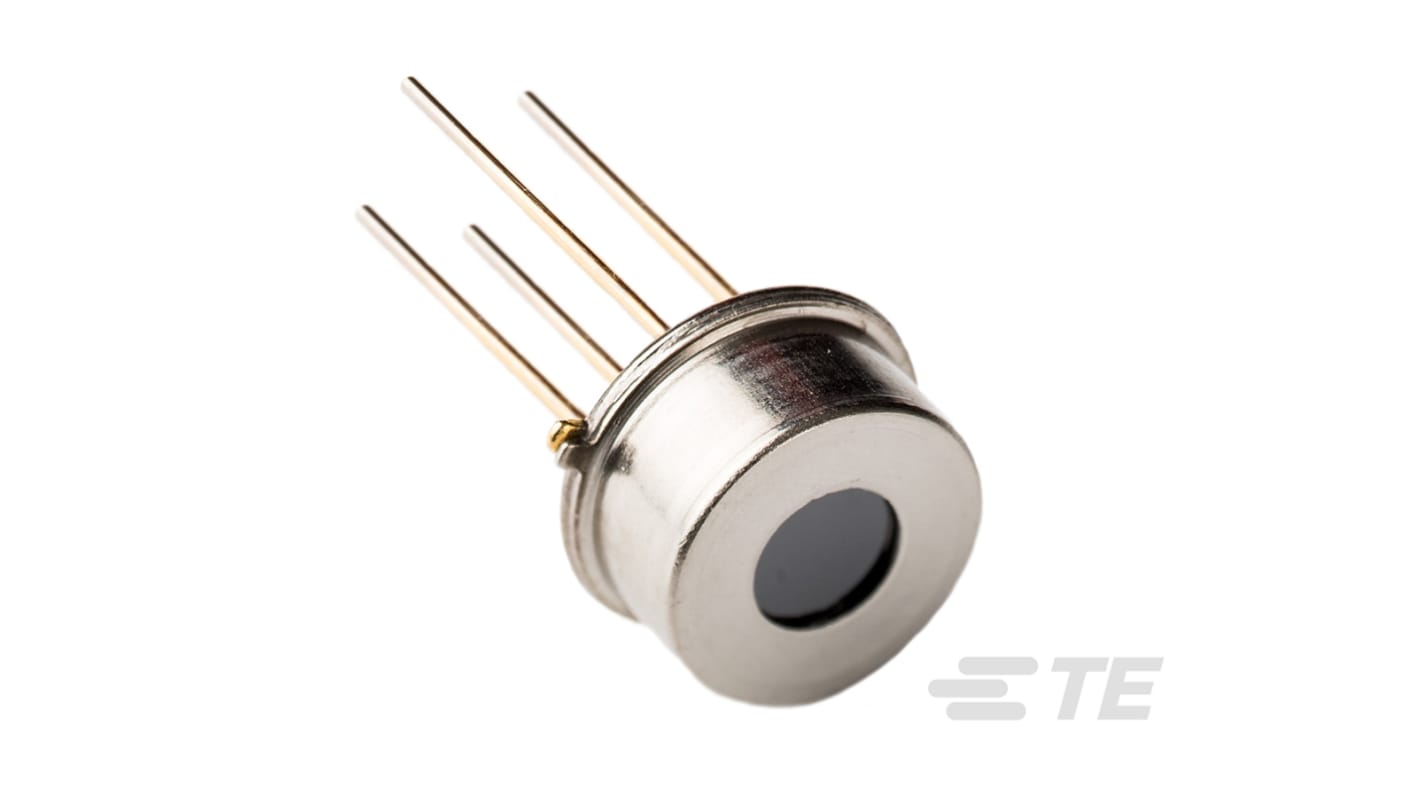

TE Connectivity, Digital Output Digital Temperature Sensor, Through Hole Mount, I2C, ±3°C, 4-Pin TO-5
- RS 제품 번호:
- 187-9073
- 제조사 부품 번호:
- G-TPMO-101
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 액세스할 수 없는 재고 정보
- RS 제품 번호:
- 187-9073
- 제조사 부품 번호:
- G-TPMO-101
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Digital Temperature Sensor | |
| Output Type | Digital | |
| Interface Type | I2C | |
| Sub Type | Temperature Sensor | |
| Accuracy | ±3°C | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Minimum Supply Voltage | 1.68V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | TO-5 | |
| Standards/Approvals | No | |
| Length | 13.5mm | |
| Height | 4.3mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Digital Temperature Sensor | ||
Output Type Digital | ||
Interface Type I2C | ||
Sub Type Temperature Sensor | ||
Accuracy ±3°C | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Minimum Supply Voltage 1.68V | ||
Maximum Supply Voltage 3.6V | ||
Package Type TO-5 | ||
Standards/Approvals No | ||
Length 13.5mm | ||
Height 4.3mm | ||
Automotive Standard No | ||
The TSD is a contactless temperature measurement system located in a TO5 package. The TSD includes an infrared sensor (thermopile) and a sensor signal conditioner. The TSD can be interfaced to any microcontroller by an I2C interface. This microcontroller has to calculate the temperature results based on the ADC values and the calibration parameters
0°C … +100°C measurement range
Small size
Up to ±1°C accuracy
I2C Interface
Low current consumption
Operating Temperature Range: -10°C … +85°C
Applications
Contactless temperature measurement
Climate control
Industrial process control
Household Applications
