STMicroelectronics MCP9701T Series, Digital Output Temperature & Humidity Sensor, Surface Mount, SMBus, ±2.5 %, 6-Pin
- RS 제품 번호:
- 190-7646
- 제조사 부품 번호:
- STTS751-0DP3F
- 제조업체:
- STMicroelectronics

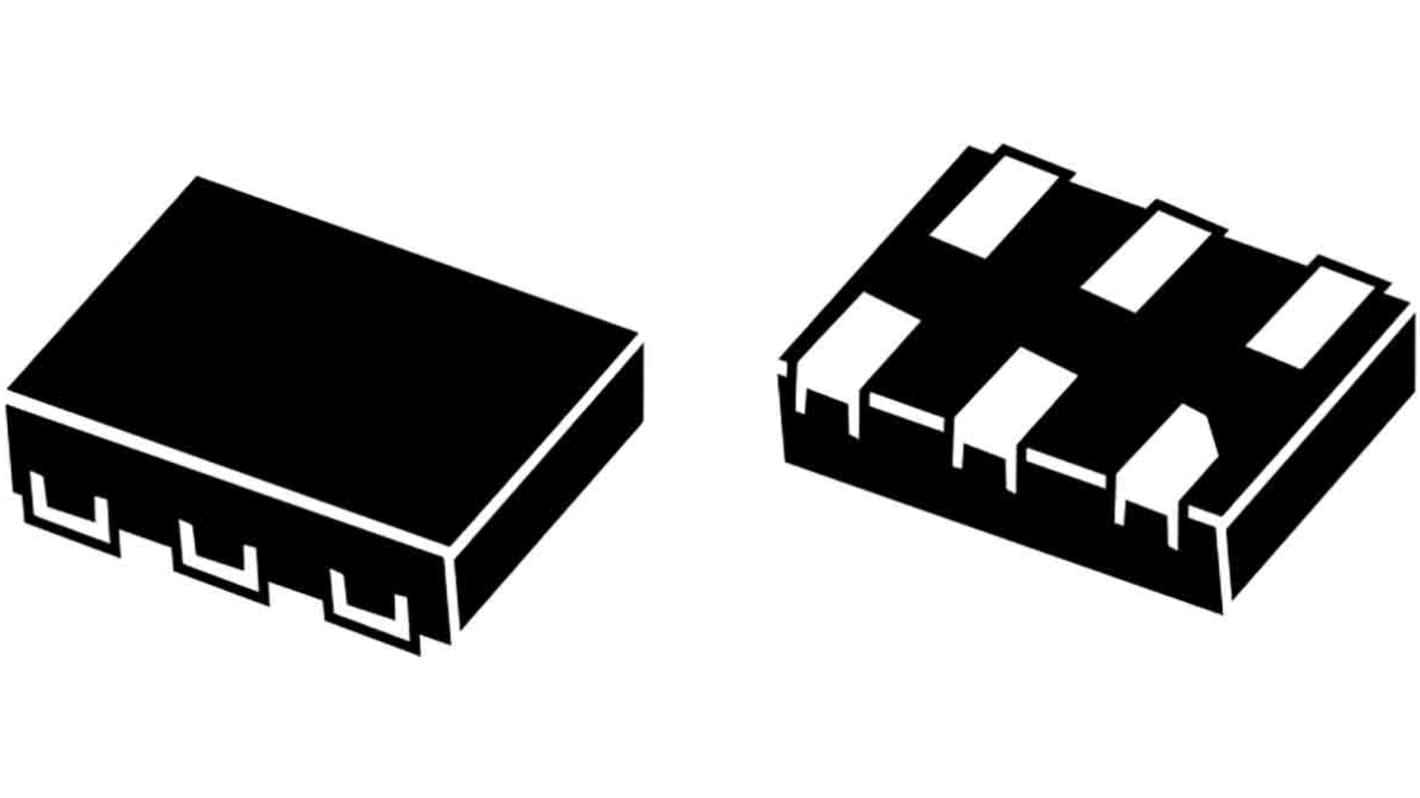

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩15,171.00
재고있음
- 2,450 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 740 | ₩1,517.10 | ₩15,171.00 |
| 750 + | ₩1,482.00 | ₩14,820.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 190-7646
- 제조사 부품 번호:
- STTS751-0DP3F
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Temperature & Humidity Sensor | |
| Output Type | Digital | |
| Interface Type | SMBus | |
| Sub Type | Temperature Sensor | |
| Accuracy | ±2.5 % | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Minimum Supply Voltage | 2.25V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | UDFN | |
| Standards/Approvals | No | |
| Length | 2.05mm | |
| Series | MCP9701T | |
| Height | 0.5mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Temperature & Humidity Sensor | ||
Output Type Digital | ||
Interface Type SMBus | ||
Sub Type Temperature Sensor | ||
Accuracy ±2.5 % | ||
Mount Type Surface | ||
Pin Count 6 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Minimum Supply Voltage 2.25V | ||
Maximum Supply Voltage 3.6V | ||
Package Type UDFN | ||
Standards/Approvals No | ||
Length 2.05mm | ||
Series MCP9701T | ||
Height 0.5mm | ||
Automotive Standard No | ||
Operating voltage 2.25 V to 3.6 V
Operating temperature –40 °C to +125 °C
Programmable
10 different conversion rates 0.0625 to 32 conversions/sec. 1 conversion/sec. - default
4 different resolutions 9-bit (0.5 °C/LSB) to12-bit (0.0625 °C/LSB) 10-bit (0.25 °C/LSB) - default
Low supply current
50 μA (typ) for 8 conversions/sec.
20 μA (typ) for 1 conversion/sec.
3 μA (typ) standby
Accuracy
±0.5 °C (typ) 0 °C to +85 °C
±0.5 °C (typ) –40 °C to +125 °C
One-shot mode for power saving
Fast conversion time 21 ms (typ) 10-bit
Pull-up resistor value allows single pin to select one of four slave addresses
Supports 400 kHz serial clock
SMBus 2.0 compatible
SMBus ALERT (ARA) support
SMBus timeout
Green
