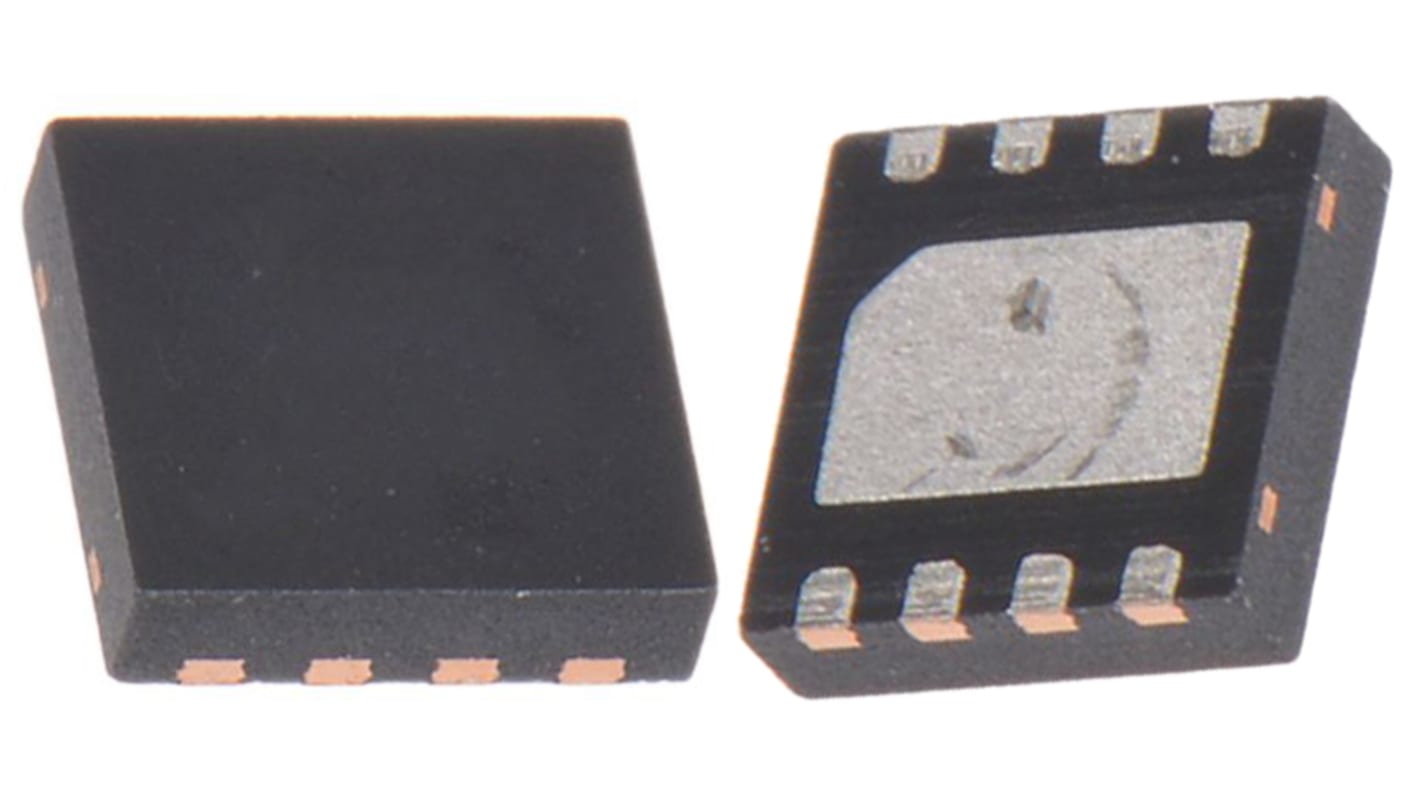

STMicroelectronics MCP9701AT Series, Digital Output Temperature Sensor, Surface Mount, 0.5 %, 8-Pin TDFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
포장 옵션
RS 제품 번호:
233-3099
제조사 부품 번호:
STTS2004B2DN3F
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Temperature Sensor

Output Type

Digital

Sub Type

Temperature Sensor

Accuracy

0.5 %

Mount Type

Surface

Pin Count

8

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-20°C

Minimum Supply Voltage

2.2V

Maximum Supply Voltage

3.6V

Package Type

TDFN

Series

MCP9701AT

Standards/Approvals

No

Length

2mm

Height

0.75mm

Automotive Standard

No

The STMicroelectronics STTS2004 is targeted for DDR4 DIMM modules in servers, desktops, and mobile personal computing platforms (laptops and other industrial applications). The thermal sensor (TS) in the STTS2004 is compliant with the JEDEC specification TSE2004a2, which defines memory module thermal sensor requirements for use in DRAM DIMMs (Dual Inline Memory Modules) with Serial Presence Detect (SPD), in which all the information concerning the DRAM module configuration (such as access speed, size, and organization) can be kept write-protected in one or more of the blocks of memory.

2.2 V memory module temperature sensor with integrated 4 Kb SPD EEPROM

Fully compliant with JEDEC TSE2004B2 specifications

Operating temperature range: –20 °C to +125 °C

Single supply voltage 2.2 V to 3.6 V

2 mm x 3 mm TDFN8, height: 0.80 mm (max): JEDEC MO-229,

W2030D compliant and RoHS compliant, halogen-free
