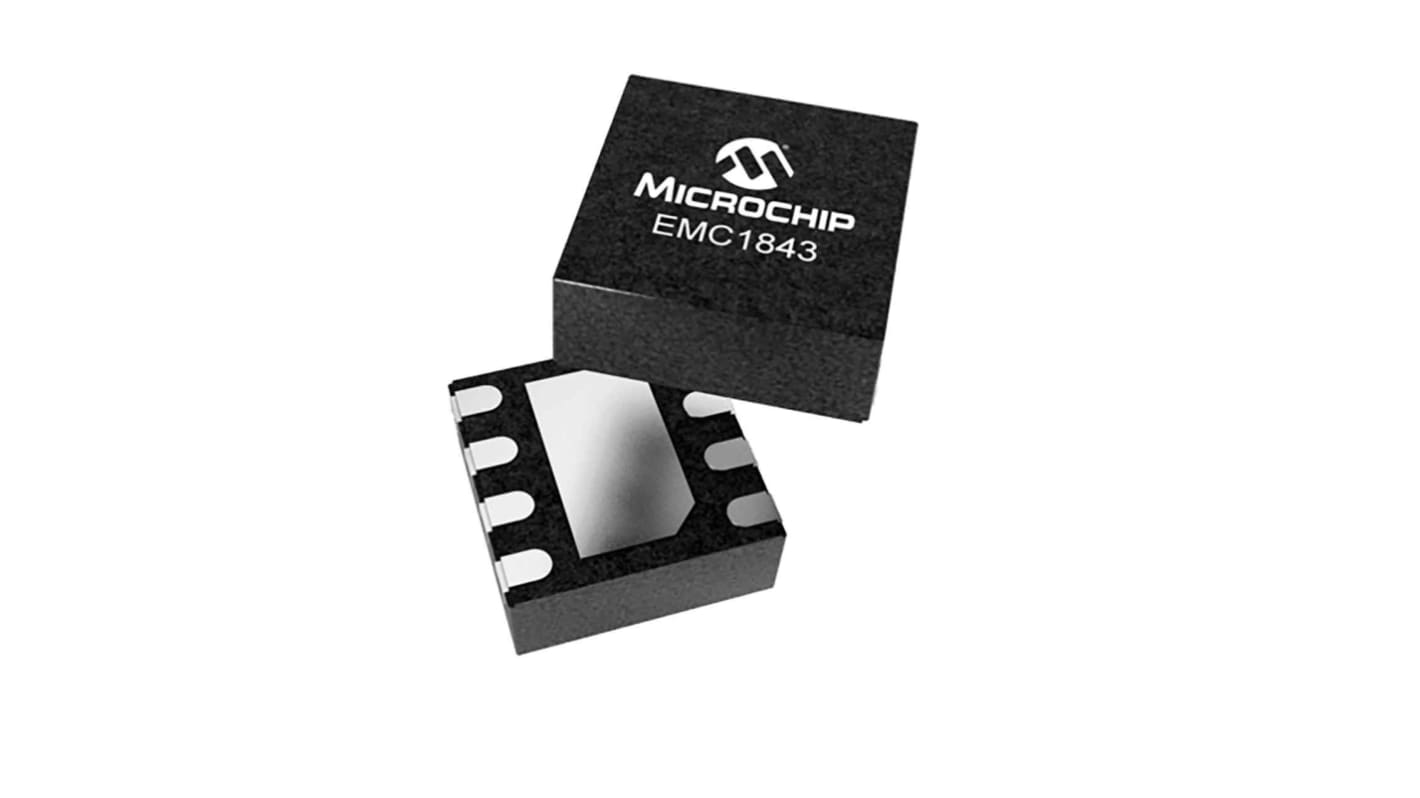

Microchip EMC1843T Series, Digital Output Temperature Sensor, Surface Mount, 2 Wire, SMBus, I2C, ±0.25°C, 8-Pin WDFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
187-6225
제조사 부품 번호:
EMC1843T-1E/RW
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Temperature Sensor

Output Type

Digital

Interface Type

2 Wire, SMBus, I2C

Sub Type

Temperature Sensor

Accuracy

±0.25°C

Mount Type

Surface

Pin Count

8

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Minimum Supply Voltage

1.62V

Maximum Supply Voltage

3.6V

Package Type

WDFN

Height

0.75mm

Length

2mm

Width

2 mm

Series

EMC1843T

Standards/Approvals

No

Automotive Standard

No

1.8V Logic Levels

Rate of Temperature Change Calculation with Preemptive Alert Limits dT/dt Measurement Programmable Duration and Gain Limits on Rates with Alert

dT/dt Measurement

2 External Temperature MonitorsResolution Resistance Error Correction for 100Ω Automatic Beta Compensation with BJT/Transistor Model Support Ideality Factor Configuration Supports up to 2.2nF Diode Filter Capacitor Anti-parallel Diodes for Extra Diode Support

Resistance Error Correction for 100Ω

Automatic Beta Compensation with BJT/Transistor Model Support

Ideality Factor Configuration

Supports up to 2.2nF Diode Filter Capacitor

Anti-parallel Diodes for Extra Diode Support

2-Wire / I2C compatible interface Up to 400kHz Clock Rate Support Both Byte and Block Operations

Up to 400kHz Clock Rate

Support Both Byte and Block Operation

Contiguous Block for Read of All Temperatures

Frequency Hopping Technology Eliminates Noise Sensitivity (Patented)

ALERT (Bar) pin, Maskable SMBUs / I2C Compatible Interrupt Configurable as Comparator

SMBUs / I2C Compatible Interrupt

Acts as Interrupt or Comparator

Register Compatible with EMC141X, EMC142X, and EMC118X
