Microchip EMC1813T Series, Analogue, Digital Output Temperature & Humidity Sensor, Surface Mount, 2 Wire, SMBus, I2C,
- RS 제품 번호:
- 187-1829P
- 제조사 부품 번호:
- EMC1813T-AE/9R
- 제조업체:
- Microchip

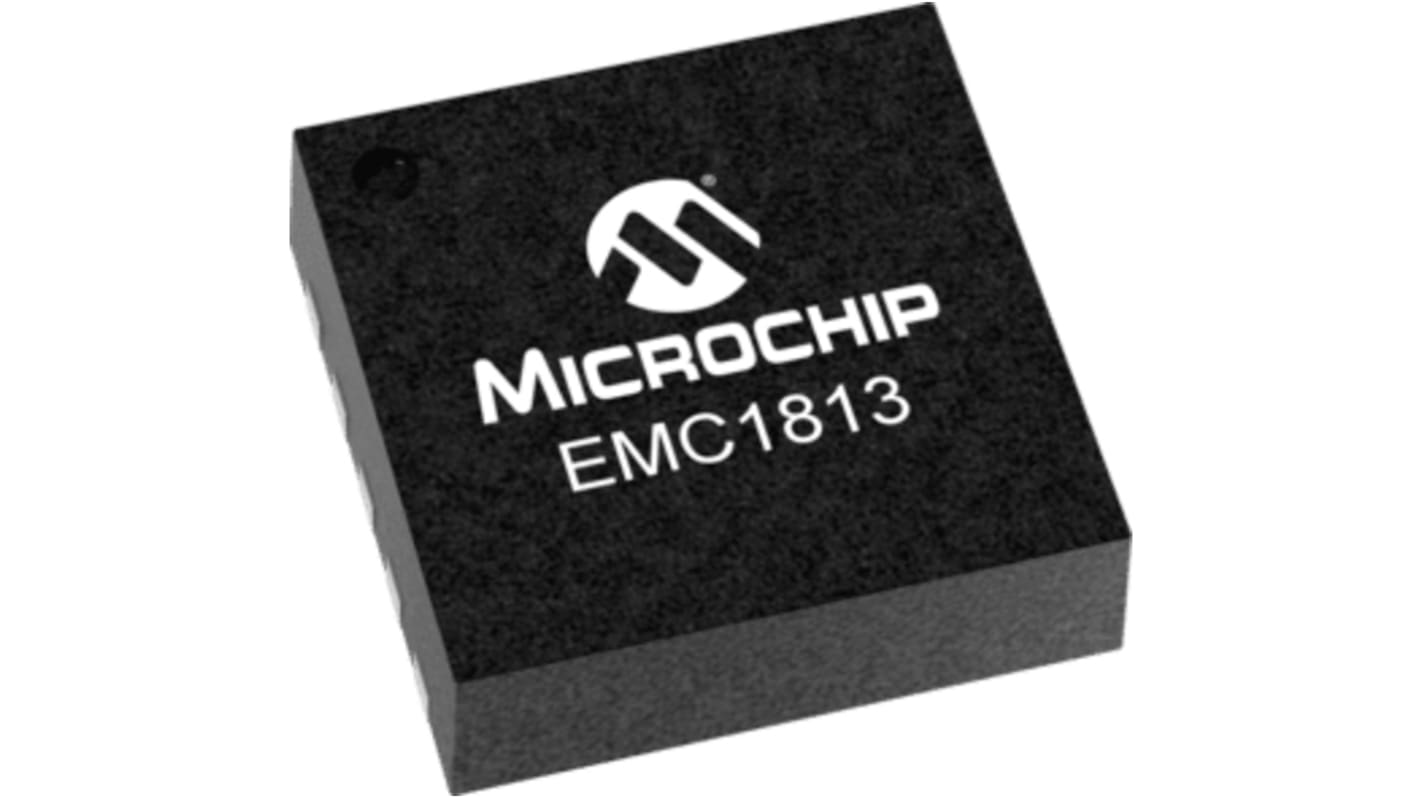

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 187-1829P
- 제조사 부품 번호:
- EMC1813T-AE/9R
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Temperature & Humidity Sensor | |
| Output Type | Analogue, Digital | |
| Interface Type | 2 Wire, SMBus, I2C | |
| Sub Type | Temperature Sensor | |
| Mount Type | Surface | |
| Pin Count | 10 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Minimum Supply Voltage | 1.62V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | VDFN | |
| Standards/Approvals | No | |
| Height | 2mm | |
| Length | 2.5mm | |
| Width | 0.85 mm | |
| Series | EMC1813T | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Temperature & Humidity Sensor | ||
Output Type Analogue, Digital | ||
Interface Type 2 Wire, SMBus, I2C | ||
Sub Type Temperature Sensor | ||
Mount Type Surface | ||
Pin Count 10 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Minimum Supply Voltage 1.62V | ||
Maximum Supply Voltage 3.6V | ||
Package Type VDFN | ||
Standards/Approvals No | ||
Height 2mm | ||
Length 2.5mm | ||
Width 0.85 mm | ||
Series EMC1813T | ||
Automotive Standard No | ||
- COO (Country of Origin):
- US
The Microchip EMC1813 is a 3 channel temperature sensor features Rate of Change (ROC), Resistance Error Correction (REC), Beta Compensation (to support CPU diodes requiring the BJT/transistor model), and Ideality Configuration combine to provide a robust solution for complex environmental monitoring applications. This 2-Wire (I2C compatible),high accuracy sensor a pre-emptive system alert and another protective measurement layer to catch and manage variable system temperatures. It operates on voltage range of 1.62V to 3.6V.
Temperature sensor resolution (Internal/External) of 0.125°C
Configurable alert pins
Adjustable SMBus address
Auto-Beta Compensation, Configurable Ideality Factor, Hottest Diode Compare, Resistance Error Correction
Extended temperature range between -40°C and +125°C
10-Lead Very Thin Plastic Dual Flat, No Lead – 2.5 x 2.0 mm Body (VDFN) package
